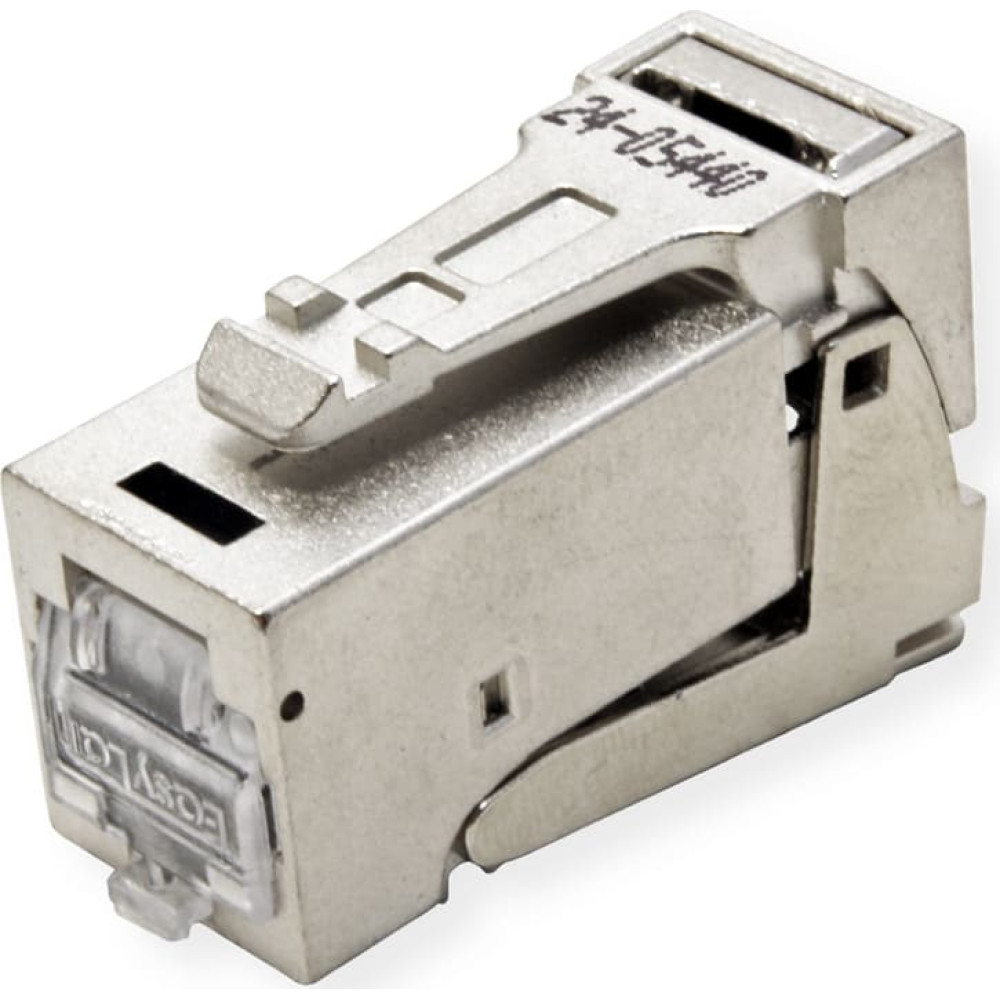

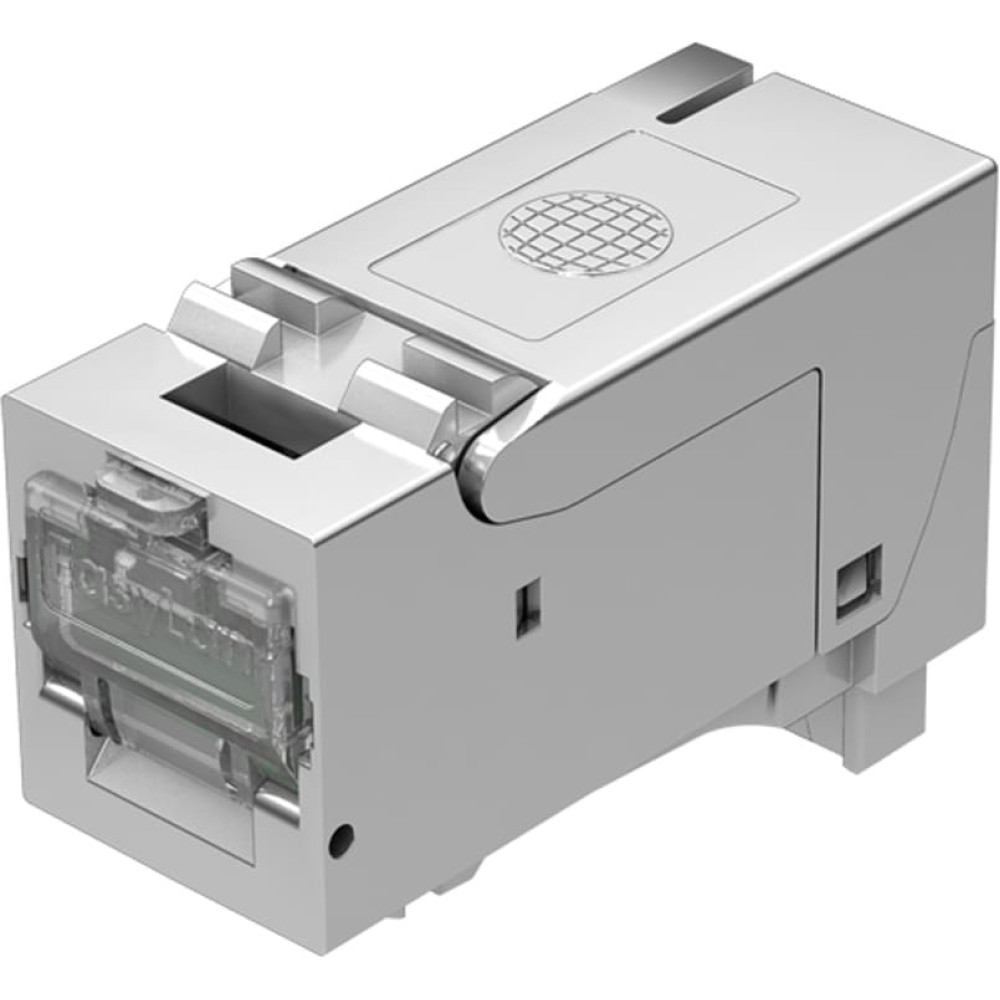

Easylan fixLink SL RJ45 Keystone, Cat 6A (ISO/IEC) AWG 24-22

Produkta kods: CKFAK001EP

Svītrkods: 4055516056290

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija

colour: silver

depth: 36.5

depth of packaging (single piece): 60

gross weight: 0.034

height: 20.8

height of packaging (single piece): 30

manufacturer: EasyLan

operating temperature max.: 70

operating temperature min.: -40

package weight (single piece): 0.034

product group: Network Passive Components

product type: Keystone Modules

protection class (ip code): IP20

quantity of ports: 1

shield type: Screened

transfer quality: Cat6A / Class EA

weight: 63.297

width: 12

width of packaging (single piece): 40

Preces apraksts

For the transmission of analog and digital voice, video, and data signals up to 500 MHz and 10 Gbit/s. Design and performance characteristics comply with the currently valid standards for Cat. 6A. The zinc die-cast housing with a nickel surface is designed for direct installation in module frame with standardized Keystone cutout dimensions.
Thanks to its “Slim Line” design, the module can be combined with DIN 50x50 mounting boxes and design-compatible Universal Connection Unit mounting boxes, fitting all common German switch programs.

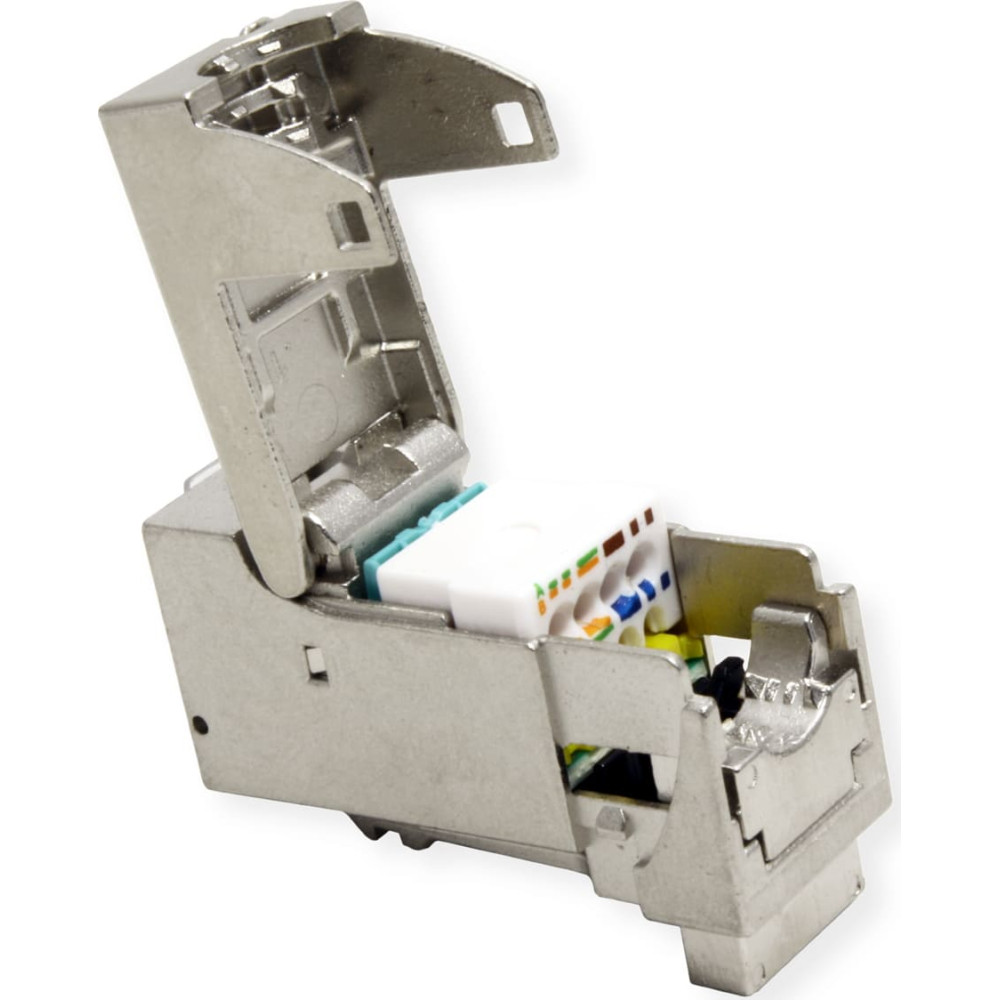

Assembly without special tool; re-assembly with the same wire cross-section.
360° shielding contact, secure strain relief without cable ties using a locking spring, also made of zinc die-cast and inseparable from the housing.
Installation dimensions: Standardized Keystone format
Installation in 1x, 2x, and 3x mounting boxes
Installation in 8x (GB2) or 12x (GB3) floor tanks
Installation in 24x 1U panel or 24x 0.5U panel
Wiring: 4-pair AWG 24-22 according to T568A or T568B
Cable diameter: Continuously adjustable from 5 - 9.5 mm, straight 180-degree cable entry
Standards: Cat. 6A (subscript) IEC 60603-51 and ISO/IEC 11801:2002 + A1:2008
Channel and Permanent Link: Class EA according to ISO/IEC 11801:2002 + A1:2008, EN 50173-1, PoE Plus remote powering according to IEEE 802.3 af/at IEC 60512-99-001
Supports transmission of 10 Gigabit Ethernet according to IEEE 802.an
Quality certification: GHMT PVP certificate
