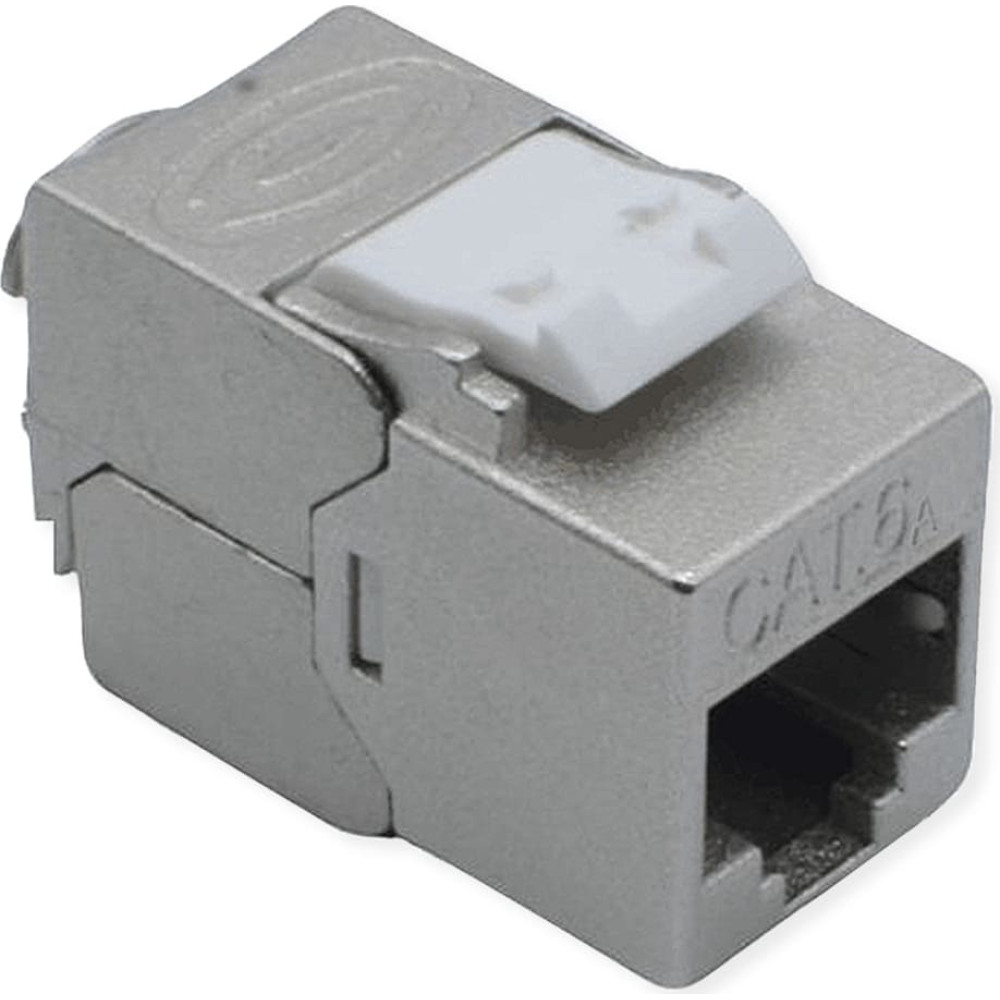

Roline Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver

ROLINE

Roline Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver

Produkta kods: 21.17.0328
Svītrkods: 7630049639256

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
assignment: EIA/TIA 568A & 568B
colour: silver
component-level certified: yes
connection direction: Straight
depth: 31.89
depth of packaging (single piece): 20
dimensions (hxwxd): 18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)
gross weight: 0.005
height: 18.96
height of packaging (single piece): 10
manufacturer: ROLINE
operating temperature max.: 60
operating temperature min.: -10
package weight (single piece): 0.005
product group: Connection technology TP
product type: RJ45 Keystone Jack
quantity of ports: 1
scope of delivery: Keystone
shield type: Screened
storage temperature max.: 70
storage temperature min.: -40
technical particularity: GHMT certified
transfer quality: Cat6A / Class EA
weight: 16
width: 14.68
width of packaging (single piece): 20
Preces apraksts

The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified

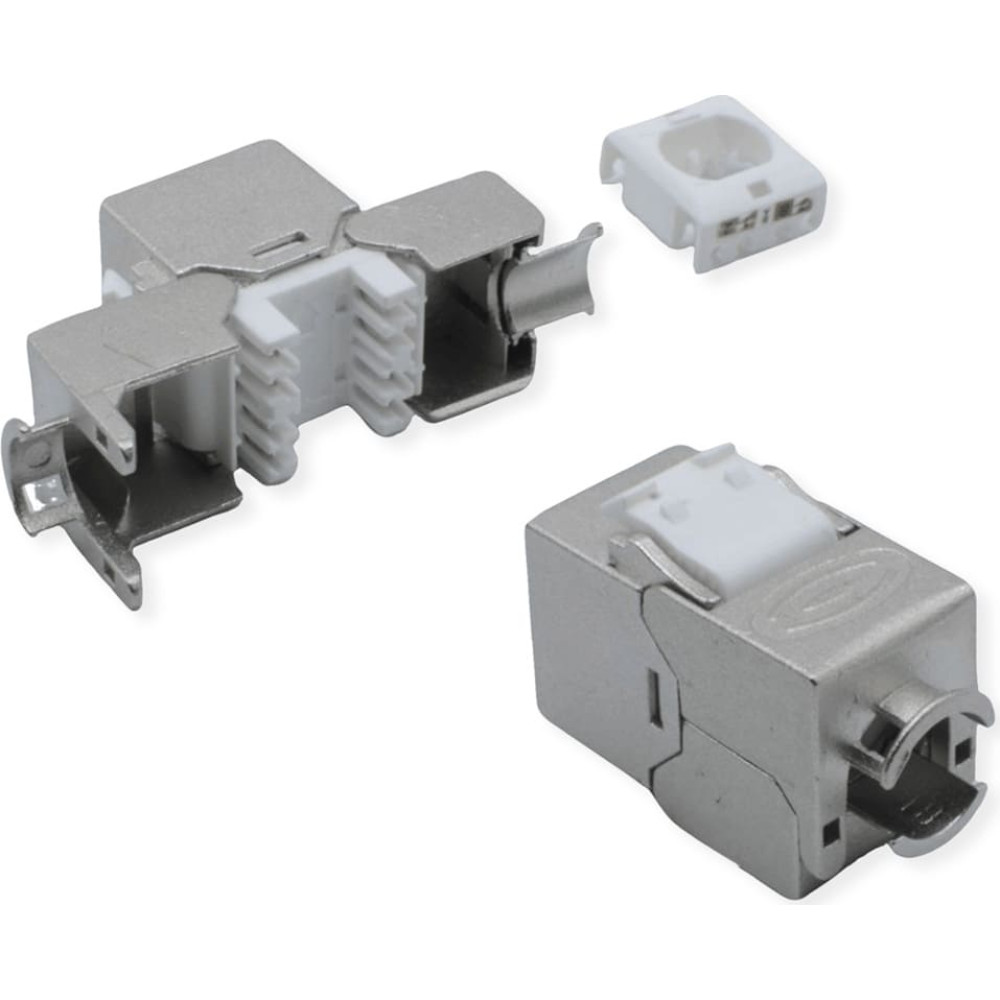

  • Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
  • Cat.6A Keystone Jack (Module)
  • Fully shielded Housing (zinc alloy)
  • 360 degree fully shielded
  • Slim type
  • 180 degree cable entry
  • Supports PoE per IEEE 802.3af, PoE+ per IEEE 802.3at and POE++ per IEEE 802.3bt
  • For cables with AWG 22-26
  • For cables with OD: 5.0-8.0 mm
  • Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
  • Dimensions (H x W x D): 18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)

GHMT certified
