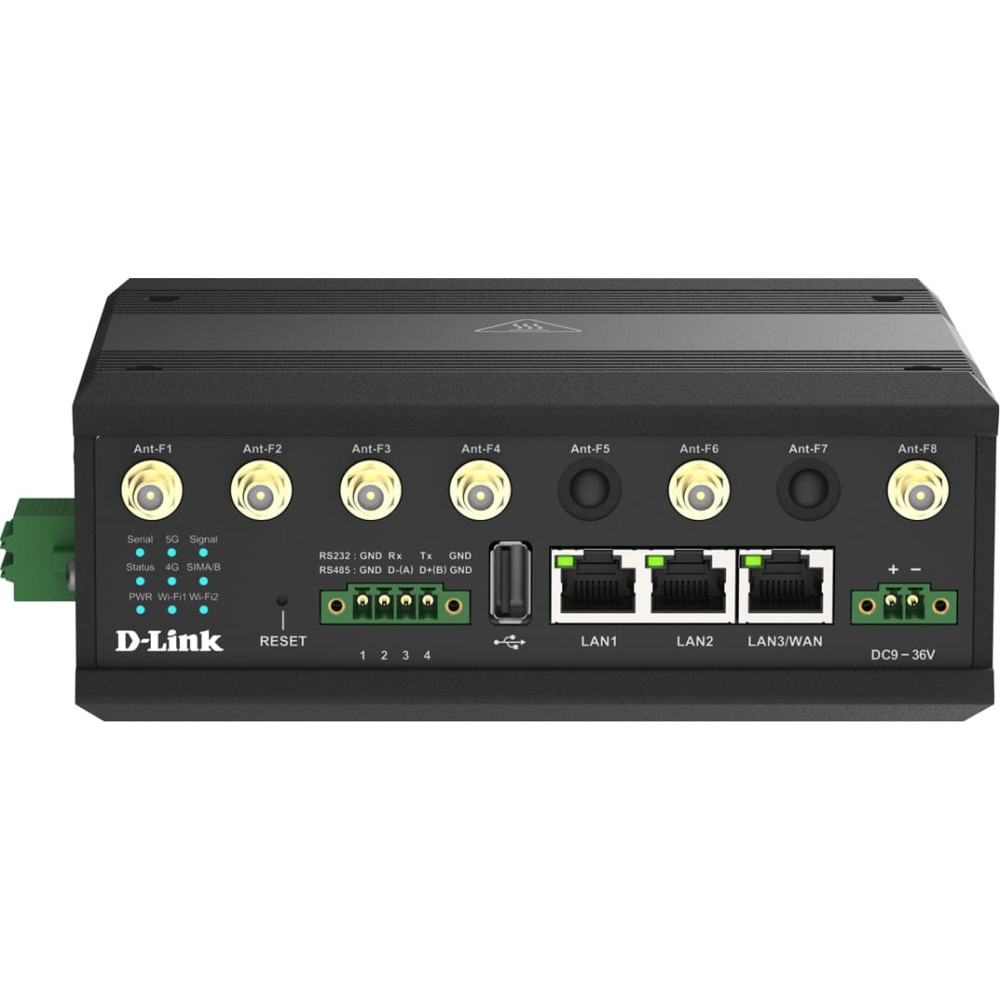

The DOM-550-GSO 5G IIoT Gateway offers dual-mode 5G NR and 4G LTE connectivity, delivering download speeds of up to 3.4 Gbps. It includes three Gigabit Ethernet ports - one configurable as an Ethernet WAN - for seamless switching between broadband and cellular networks.

• 1x Gigabit Ethernet WAN/LAN port
• 2x Gigabit Ethernet LAN port
• Dual 3FF Micro-SIM slots
• 5G NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
• 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
• LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
• Cellular/Ether‐WAN failover
• 2x (RS-232 or RS-485) (Terminal Block)
• 2x DI, 2x DO, ModBus
• 2x AI
• GPS / GLONASS
• 1x USB port
• 1x microSD card slot
• 802.11a/b/g/n/ac Wi-Fi 5, up to 300 Mbps on the 2.4 GHz and 866 Mbps on the 5 GHz bands
• WPA/WAP2, WPA2, WPA2-PSK(AES), WPA-PSK/WPA2-PSK(AES, TKIP/AES), 802.1x
• IPv4/v6, Static Route, RIPv1/RIPv2, OSPF, BGP, QoS
• IPS, MAC Control
• IPsec, PPTP, L2TP, OpenVPN, WireGuard, GRE, VPN Pass-through
• SMS service
• Management via Web UI, SSH and D-ECS
• Wide Operating Temperature Range (-30 to +70°C)
• Power input: 2-pin TB for DC 9V-36V
