Sākums Tīkla produkti Tīkla konektori Telegärtner Karl Gärtner TELEGÄRTNER BNC Bulkhead Socket, insulated with white insulating flange

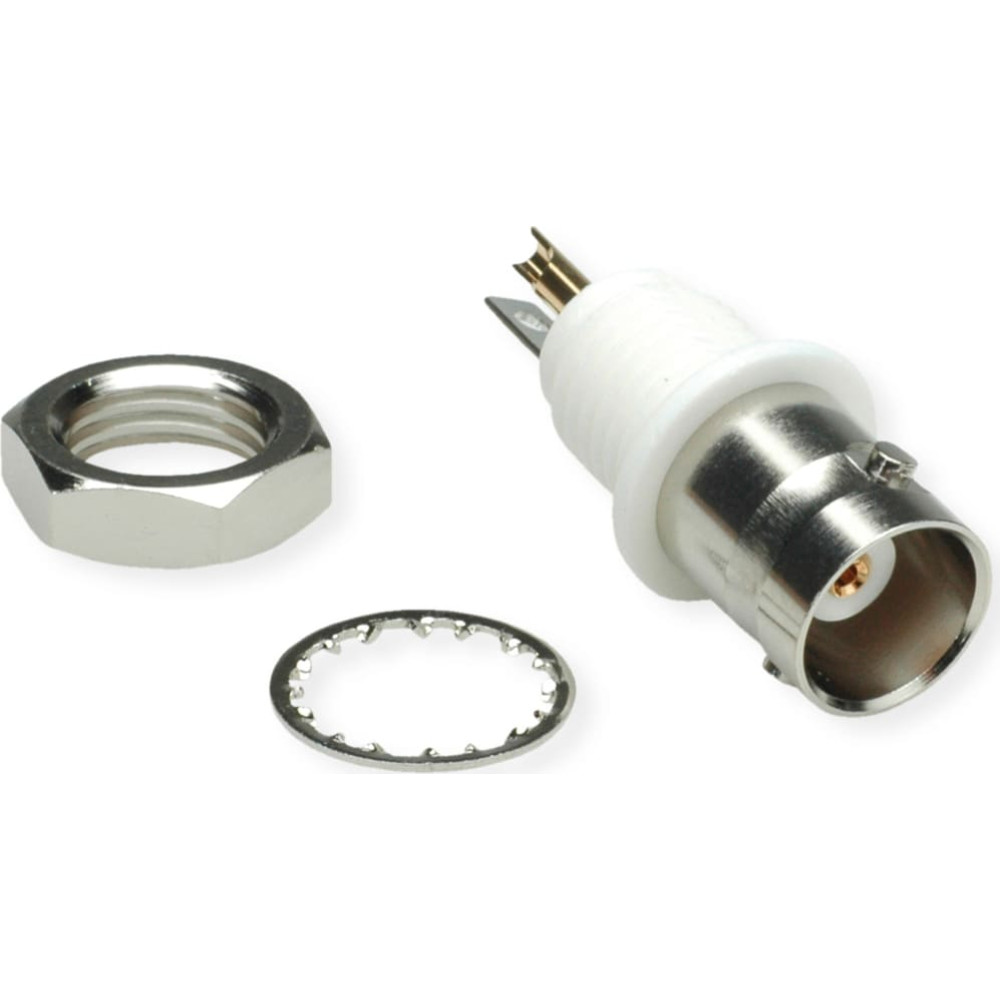

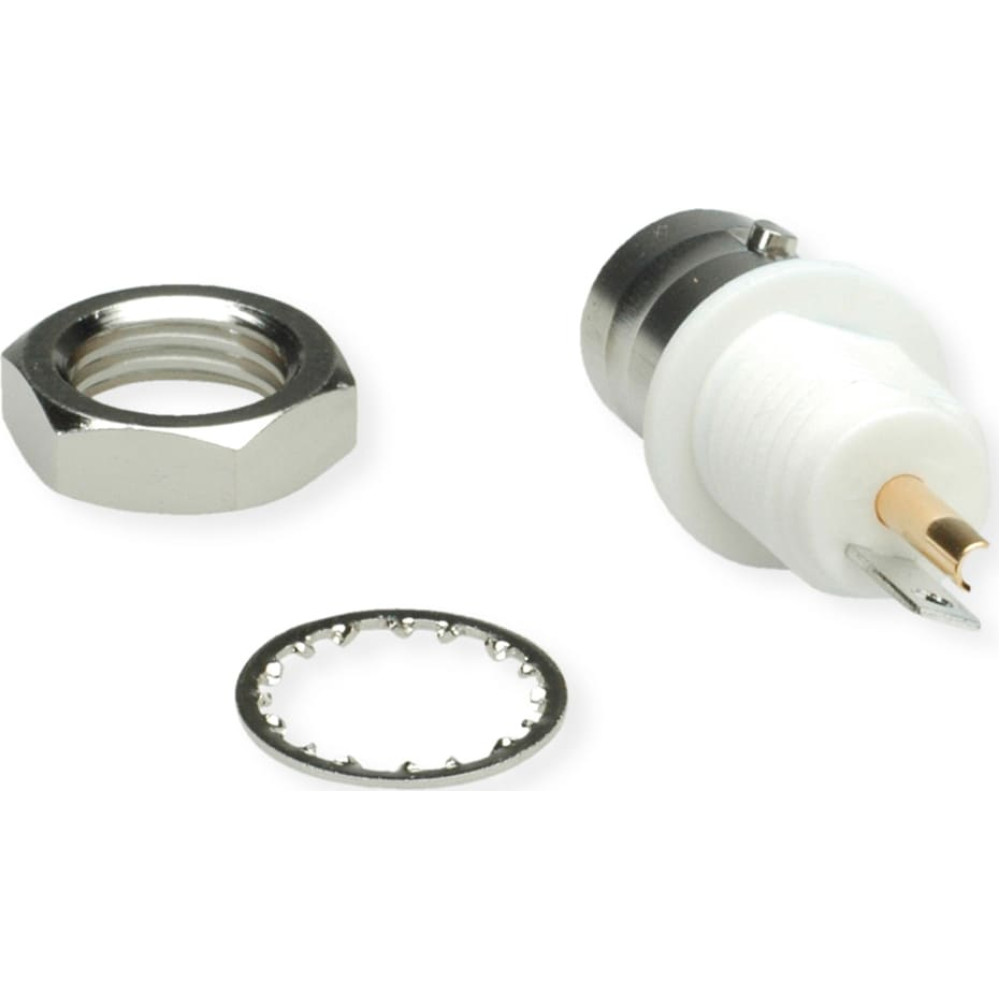

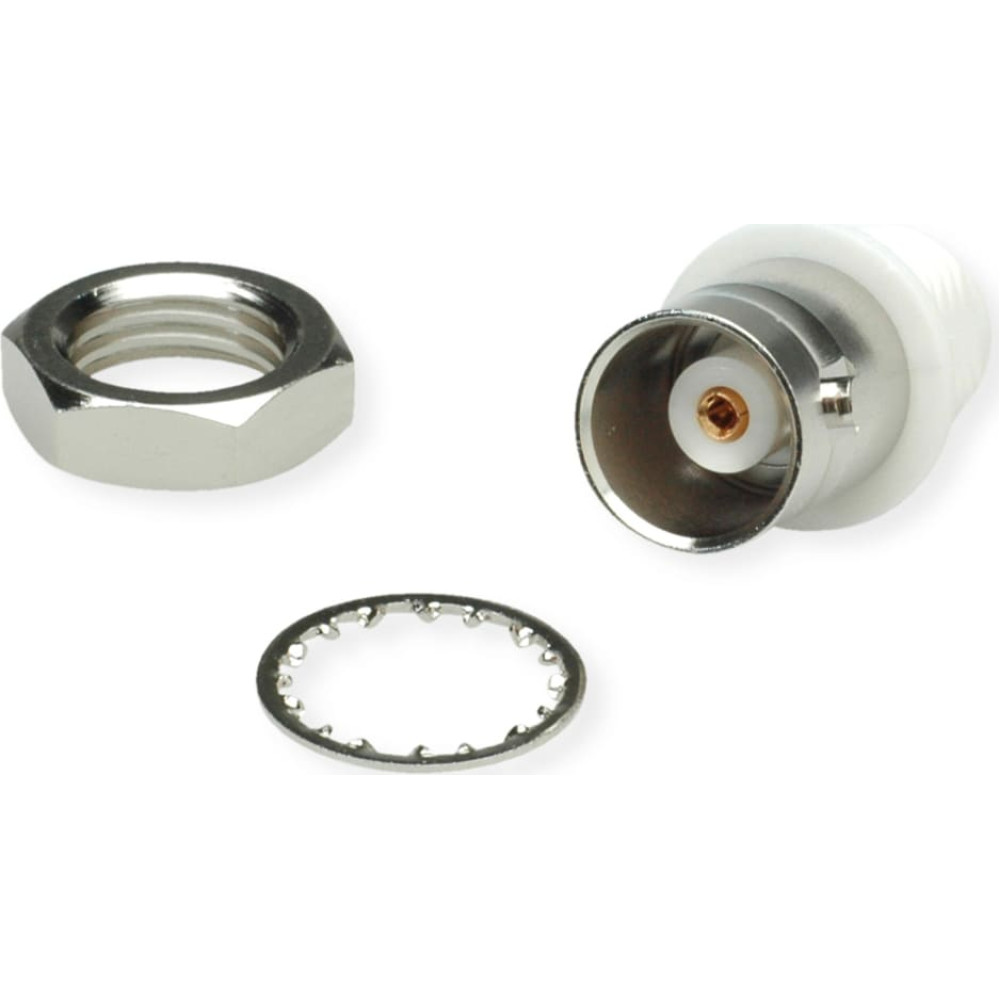

Telegärtner Karl Gärtner TELEGÄRTNER BNC Bulkhead Socket, insulated with white insulating flange

TELEGÄRTNER Karl Gärtner

Telegärtner Karl Gärtner TELEGÄRTNER BNC Bulkhead Socket, insulated with white insulating flange

Produkta kods: 100023370
Svītrkods: 4018359102685

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
characteristic impedance: 50
colour: silver
connection direction: Straight
depth: 29.8
depth of packaging (single piece): 10
frequency range (max.): 4
gross weight: 0.003
height: 12.7
height of packaging (single piece): 10
manufacturer: TELEGÄRTNER
package weight (single piece): 0.003
product group: Coaxial Connectors
product type: BNC Bulkhead Socket
protection class (ip code): IP54
quantity of ports: 1
side 1 connector gender: Female
side 1 connector type: BNC connector
side 2 connector type: Solder termination
weight: 7.03
width: 12.7
width of packaging (single piece): 10
Preces apraksts

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.

  • Article name: BNC Jck str Bkhd sd/sd insul Z50
  • Impedance: 50 Ω
  • Remarks: with white insulating flange
  • Mount. dim.: Z113
