Lindy 7m Type 2 EV-Charging Cable, 11kW

LINDY

Lindy 7m Type 2 EV-Charging Cable, 11kW

Produkta kods: 30111
Svītrkods: 4002888301114

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
cable colour: Black
cable diameter: 1.36 cm
cable length: 7 m
carrying case: Yes
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/55/05/2b/63/632b0555e09a813217e9016e/CE_DoC_DE_30110_30111.pdf
certification: UKCA, TÜV
compliance certificates: CE, REACH, RoHS
connector 1: Type 2
connector 1 form factor: Angled
connector 2: Type 2
connector 2 form factor: Angled
country of origin: CN
gross weight: 4.22
handle colour: Black
maximum operating current (three-phase): 16 A
maximum operating power (three-phase): 11000 kW
net weight: 3.22
number of phases: 3
operating temperature (t-t): -30 - 50 °C
operating voltage: 480 V
packaging height: 37.50
packaging lenght: 37.50
packaging width: 10.00
quantity per pack: 1 pc(s)
storage temperature (t-t): -30 - 40 °C
sustainability compliance: Yes
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/7e/05/2c/63/632c057e326c0b29ef680de0/30111_TDS_v1.pdf
variation of: 30110
warranty: 2
Preces apraksts

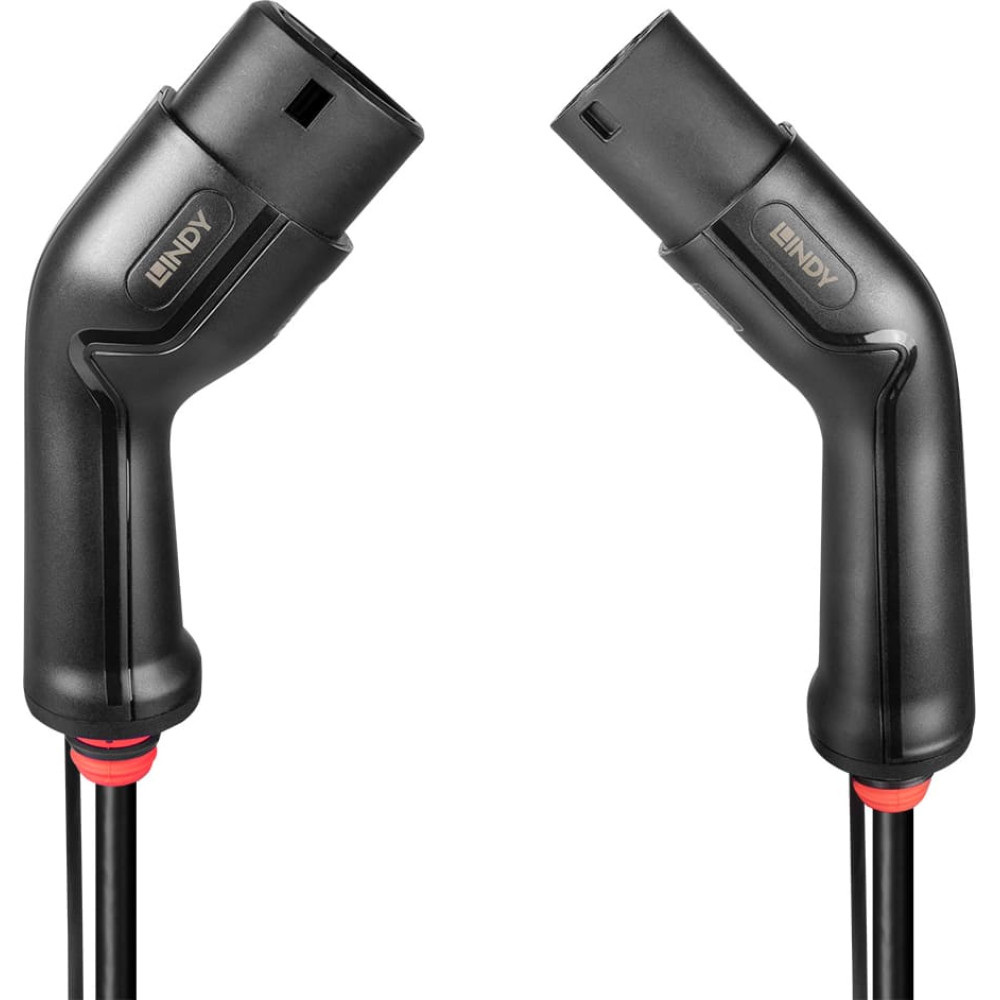

Connectors

  • Connector A: Type 2 Female (IEC 62196)
  • Connector B: Type 2 Male (IEC 62196)
  • Housing Material: PC & Nylon
  • Dimensions (approx.) WxDxH:
    • Type 2 Female: 204.2x122.3x71mm (8,04x4.81x2.8in)
    • Type 2 Male: 214.1x115.5x56mm (8.43x4.55x2.2in)

Cable Construction

  • Length: 7m (22.97ft)
  • Colour: Black
  • Charging Mode: Mode 3
  • Number of Phases: 3
  • Jacket Diameter: 13.6mm (0.54in)
  • Jacket Material: TPU
  • Conductor Material: Copper alloy with silver plating

Specifications

  • Rated Current: 16A
  • Operation Voltage: 480V
  • Charging Power: 11kW
  • Minimum Bend Radius: 68mm (2.68in)
  • Protection Level: IP55, IP65 (with protection caps)
  • UV Resistant: Yes
  • Flame Retardant Grade: UL 94 V-0 (connectors), EN 60332-1-2 (cable)
  • Operating Temperature: -30°C - 50°C (-22°F - 122°F)
  • Storage Temperature: -30°C - 40°C (-22°F - 104°F)

Miscellaneous

  • Packaging Type: Carton Box
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, RoHS, REACH, TÜV

Package Contents

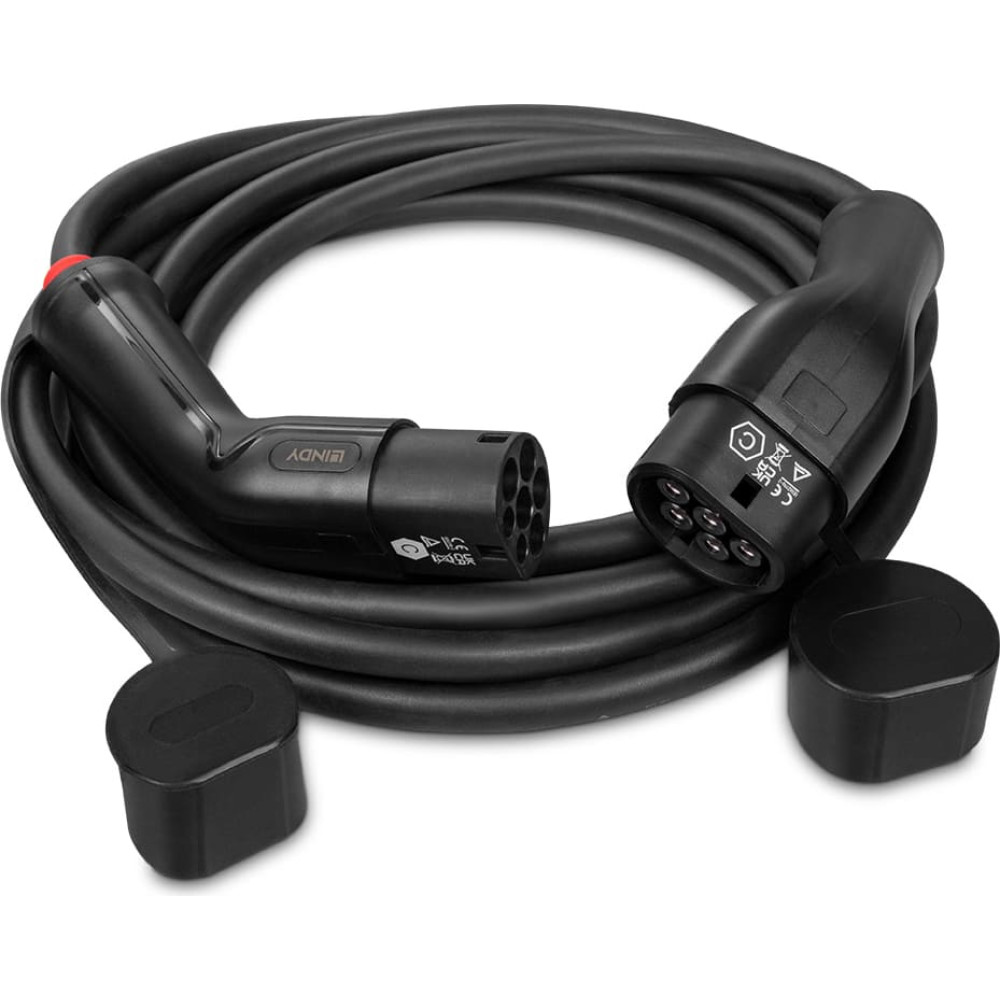

  • 7m Type 2 Charging Cable, 11kW

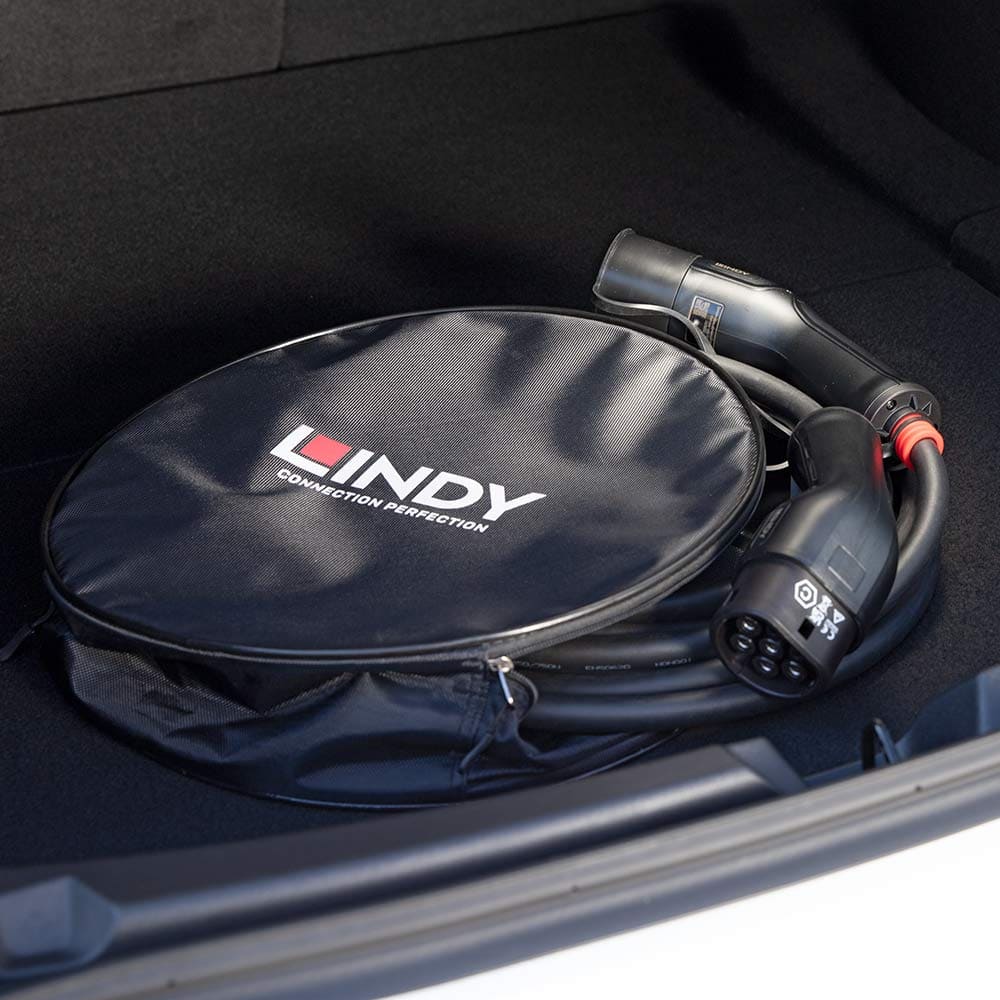

  • Carrying bag

Purchasing Information

  • No.: 30111
  • EAN: 4002888301114

This product is also available in other lengths

  • 30110 - 5m (16.40ft)
  • 30111 - 7m (22.97ft)




CE Doc: CE_DoC_DE_30110_30111.pdf
Tech Data Sheets: 30111_TDS_v1.pdf
