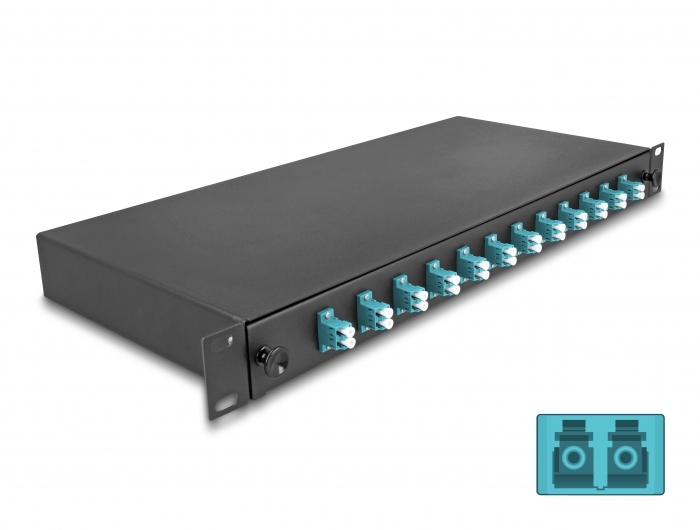

Delock 19″ Optical Fiber Splice Box 12 x LC Duplex OM3 1U complete assembled ready for splicing

DELOCK

67004

New

This pre-assembled optical fiber splice box by Delock can be mounted in a 19″ rack and is ideal for quickly and securely setting up the fiber optic network in buildings.

Equipped for splicing
The optical fiber box is equipped with 12 LC Duplex couplers and fitted with 24 pigtails, which are already inserted in the splice cassette ready for splicing.

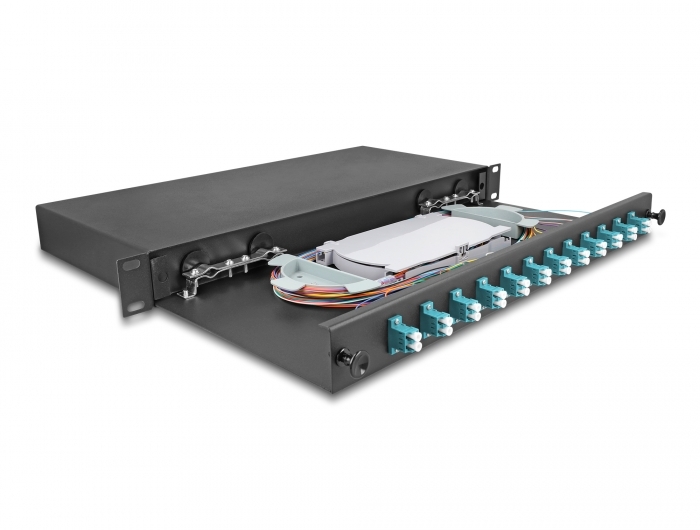

With drawer
The front panel can be pulled out, making it possible to work on both sides of the couplers without removing the cover.
Specification:
• For mounting in 19″ racks, 1U
• Splice box with 12 x LC Duplex couplers
• Extendable tray
• With splice cassette
• OM3 pigtails
• Fibre: 50/125 µm
• Cable jacket material: LSOH
• Cable length: ca. 1.5 m
• Housing colour: black
• Housing material: metal
• Dimensions (LxWxH): ca. 482 x 220 x 44 mm

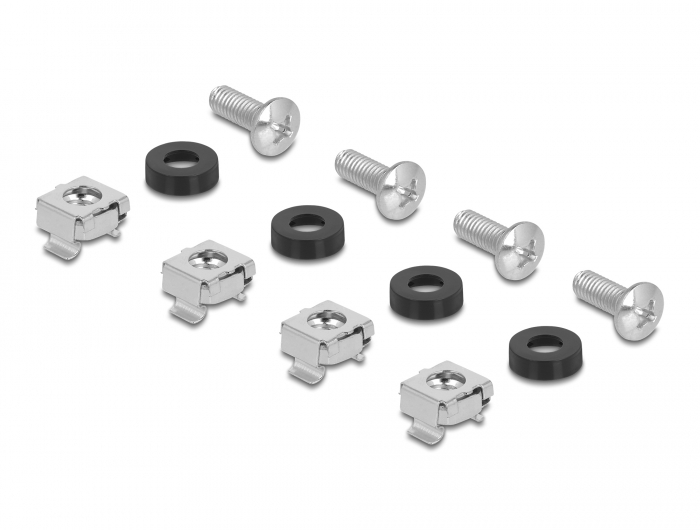

Package content:
• 19″ optical fiber splice box
• 4 x screw
• 4 x caged nut
• 4 x washer

Data sheet:
http://www.delock.de/produkt/67004/pdf.html?sprache=en
