Digitus KVM Switch, 2 Port, Single Display, 4K, HDMI

Digitus

DS-12870

New

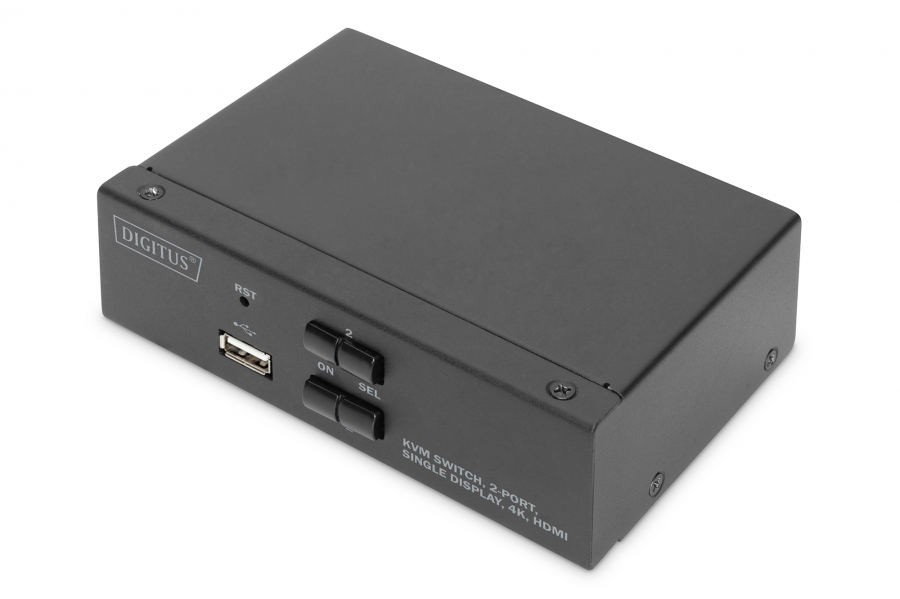

Desktop HDMI KVM Switch

Operate 2 PCs using a USB keyboard and mouse combination – switch between two computers by pressing a button

Use one monitor, a mouse and keyboard to operate two computers with single display
Supports a maximum UHD resolution of 4K / 30 Hz + FreeSync
USB ports for mouse and keyboard
Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
Integrated USB hub with USB A port for additional peripheral equipment
Switching between the PCs via switch on the KVM switch or hot key on the keyboard

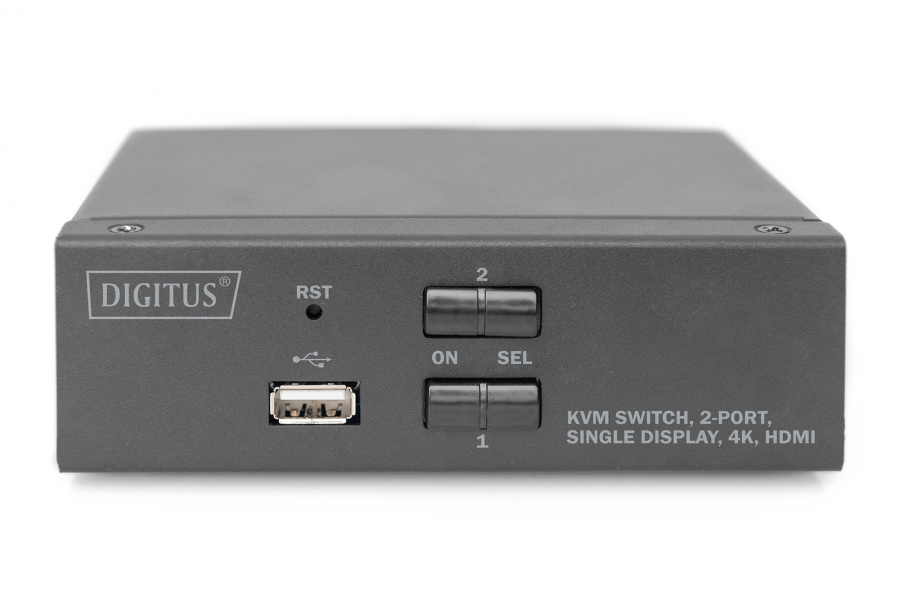

LED status and functional displays on the front side
Laborious replugging of connection cables no longer necessary
Real Plug and Play - no software or driver installation required (BIOS hardware connection)
Sturdy metal housing

With the DIGITUS® 2-Port KVM Switch for single displays, you can operate two 4K-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between the two PCs and are spared the trouble of replugging all cables. Output to one monitor is provided via the HDMI® output on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

UHD resolution: 4K / 30 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4

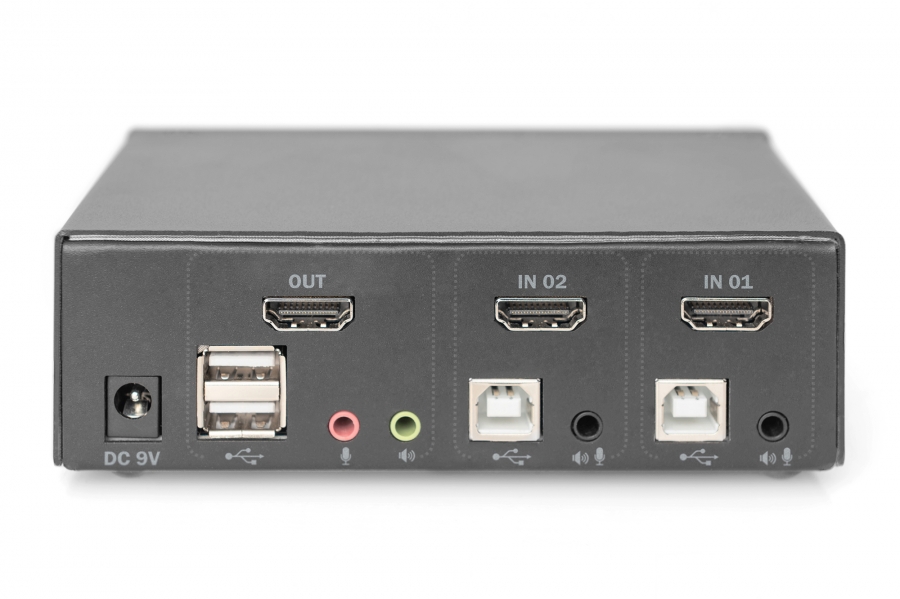

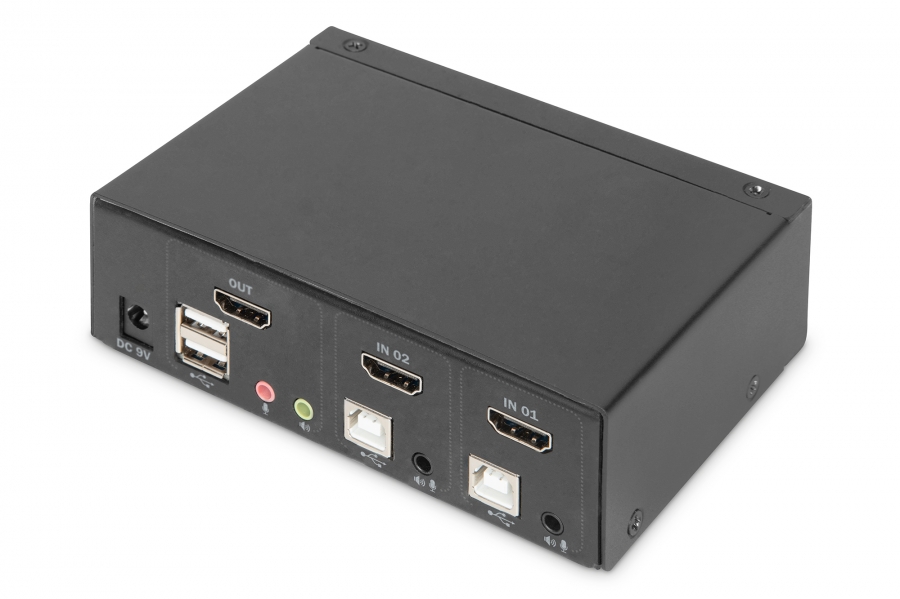

Inputs: 2 x HDMI® inputs (2x1), 2 x USB B, 2 x audio combo socket 3.5 mm jack (microphone, speaker)
Outputs (console): 1 x HDMI®, 2 x USB A (mouse, keyboard), 2 x Stereo Audio 3.5 m jack (microphone, speaker)
Additional connection on the front side: 1 x USB A for additional peripheral equipment such as printers or USB sticks
HDMI® version: 1.4b
USB specifications: USB 2.0 compliant (full speed)
Supports audio formats: Dolby True HD, DTS HD Master Audio
Switching between the PCs: Switch on the front side or hot keys
Status LED on front side shows current configuration
The device is platform-independent, suitable for all operating systems
Operating temperature: 0 °C ~ 50 °C
Storage temperature: -20 °C to +60 °C
Operating humidity: 0% - 80% RH (non-condensing)
Case material: Metal
Power supply: via USB or optional 9 V DC power adapter
Dimensions: 13.2 x 9.2 x 4.4 cm (WxDxH)
Gewicht: 465g

Package content:
1 x KVM Switch, 2-Port, Single Display, 4K, HDMI®
2 x KVM cable (HDMI®, USB, Audio)
1 x QIG

Platums(cm)22.5
Grums(cm)18.5
Augstums(cm)9.3
Svars(kg)1.111
Tilpums(cm3)3871.12
Izcelsmes valstsCN
