Delock External Enclosure 2 x M.2 Key B SSD > USB 3.1 Gen 2 USB Type-C™ female with RAID

DELOCK

42589

New

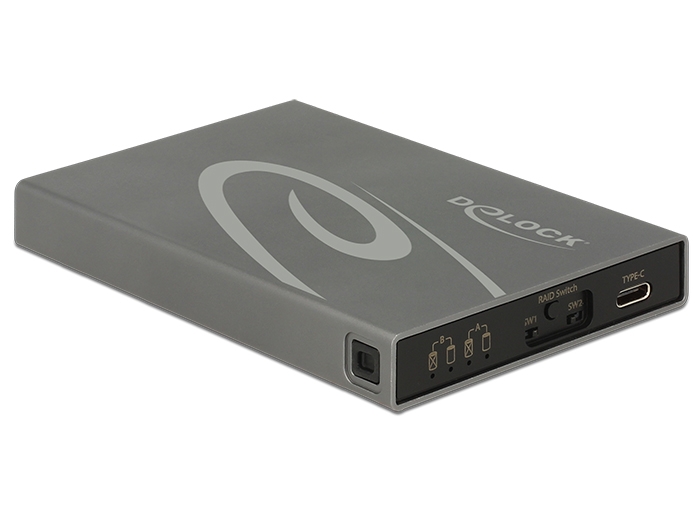

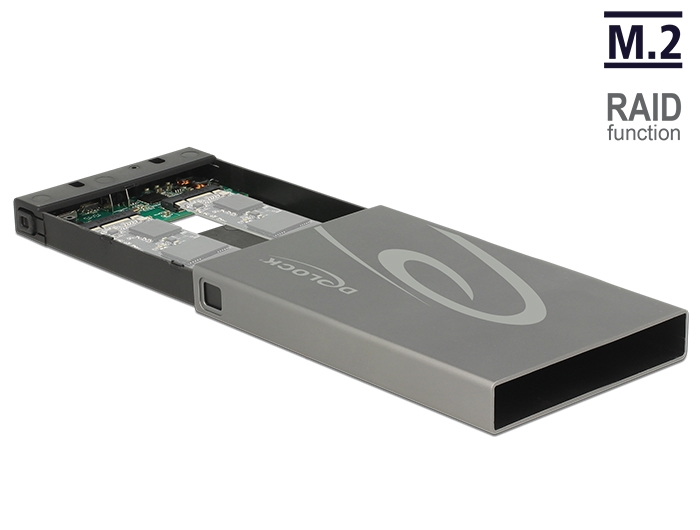

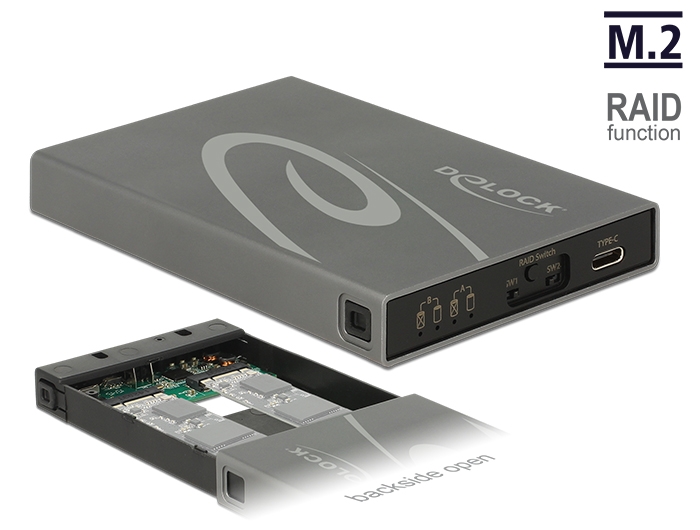

The aluminium enclosure by Delock enables the installation of two M.2 SSD in 2280, 2260, 2242 and 2230 format, which can be connected via USB to the PC or laptop. When using more than one SSD, there is the possibility to use different RAID level.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6, Mac OS 10.12
• PC or laptop with a free USB Type-A port
Specification:
• Connector:
  external: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
  internal: 2 x 67 pin M.2 key B slot
• Chipset: Asmedia ASM1352R
• Supports M.2 modules in format 2280, 2260 and 2242 with key B based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double-sided
  assembled modules supported
• Data transfer rate up to 6 Gbps
• Supports RAID 0, RAID 1, JBOD, Port Multiplier
• LED indicator for RAID mode
• 1 x button for RAID setting
• Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0
• Hot Plug, Plug & Play
• Colour: grey
• Dimensions (LxWxH): ca. 125 x 77 x 15.5 mm
Package content:
• External enclosure
• Screws
• Cable USB-C™ male to USB Type-A male, length ca. 50 cm
• User manual
Data sheet:
http://www.delock.de/produkt/42589/pdf.html?sprache=en
