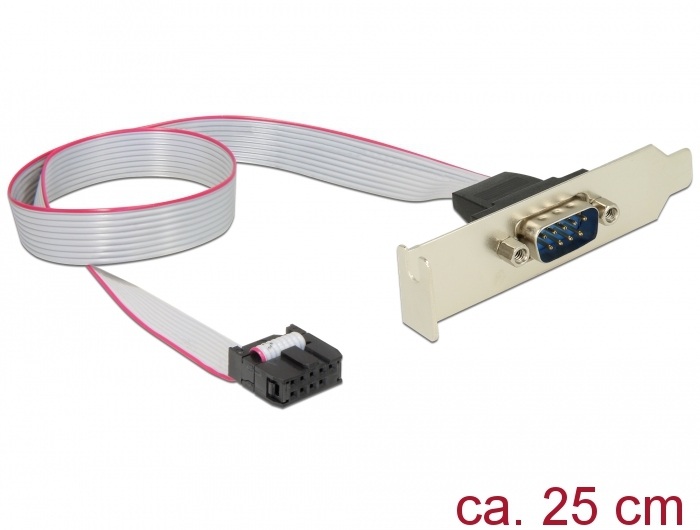

Delock Low Profile Slot Bracket > 1 x Serial Pin layout: twisted

Reference 89605

Condition: New

More info

- 1x Seriell direkt auf Mainboards - über Low Profile Slotblende rausgeführt - 1x serielle 9polige Anschlüsse - 9polig extern - 10polig intern Interfacekabel ca. 25cm lang - Belegung Seriell > Buchsenleiste 1-1, 6-2, 2-3, 7-4, 3-5, 8-6, 4-7, 9-8, 5-9

System requirements:
• PC with a free PC slot
• One free COM port internal

Specification:
• Connection:
internal: 1 x 9 pin serial pin header RS-232 female
external: 1 x 9 pin serial DB9 RS-232 male
• Low profile Slot bracket for installation into PC slot
• Pitch distance: 2.54 mm
• Cable length: ca. 25 cm
• Slot bracket: low profile
• Cable colour: grey

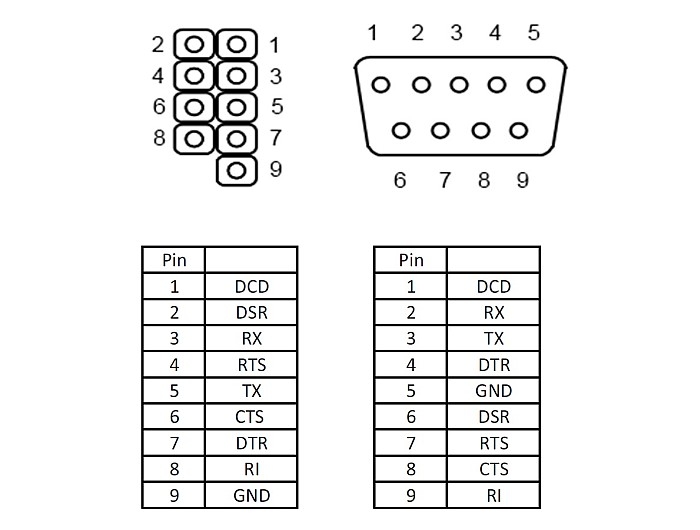

• Pin layout serial > internal port
1-1, 6-2, 2-3, 7-4, 3-5, 8-6, 4-7, 9-8, 5-9

Package content:
• Slot bracket

Data sheet:
http://www.delock.de/produkt/89605/pdf.html?sprache=en
