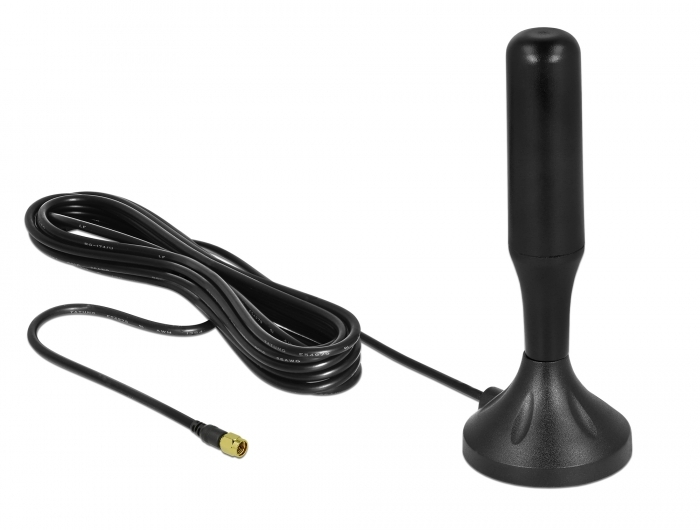

Delock LTE Antenna SMA plug 3 - 5 dBi 12.4 cm fixed omnidirectional with magnetic base and connection cable RG-174 A/U 3 m outdo

DELOCK

12587

New

This antenna by Delock allows the usage of different LTE bands indoors and outdoors.
System requirements:
• Device with a free SMA connector
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  698 MHz - 960 MHz
  1710 MHz - 2170 MHz
  2500 MHz - 2700 MHz
• ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN
• Antenna gain: 3 - 5 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: linear, vertical
• Operating temperature: -20 °C ~ 70 °C
• Housing material: ABS
• Colour: black
• Protection class: IPX5
• Cable: coaxial
• Cable type: RG-174 A/U
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 124.0 x 48.0 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12587/pdf.html?sprache=en
