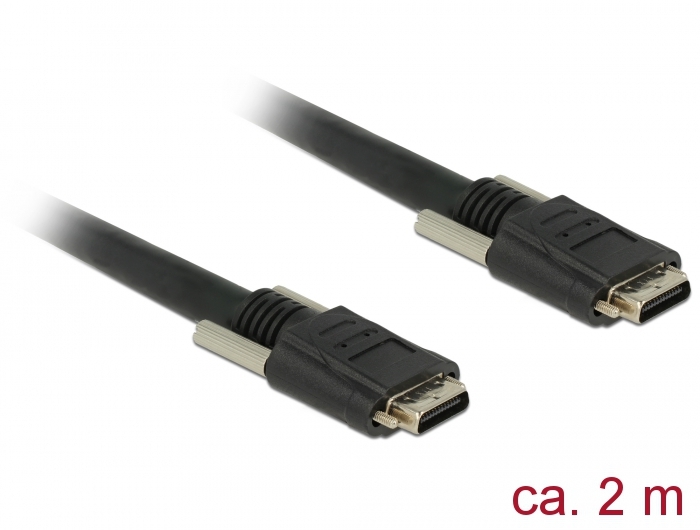

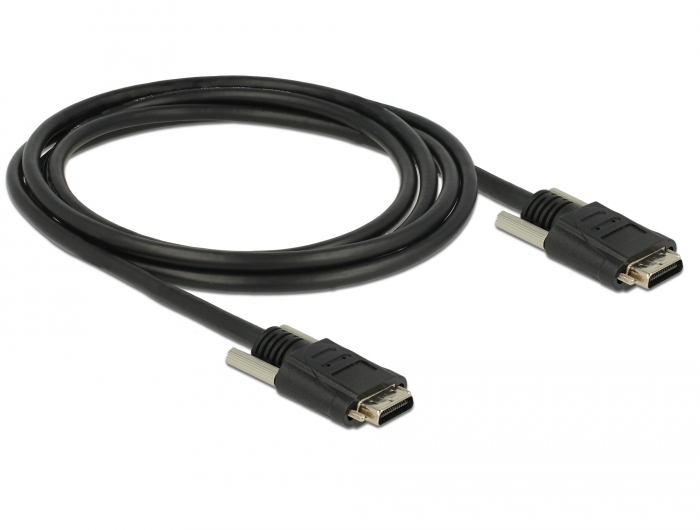

Delock Cable Camera Link SDR plug > SDR plug PoCL 2 m black

DELOCK

85648

New

This Camera Link cable by Delock is used to connect a Camera Link camera to a PC or a laptop with Camera Link frame grabber. Thanks to the integrated Power over Camera Link (PoCL) support, no separate power supply is required for the camera. Camera Link is an interface used in industrial image processing and has been specified for fast image transmission.
System requirements:
• PC or laptop with one free SDR interface and Camera Link frame grabber
Specification:
• Connectors:

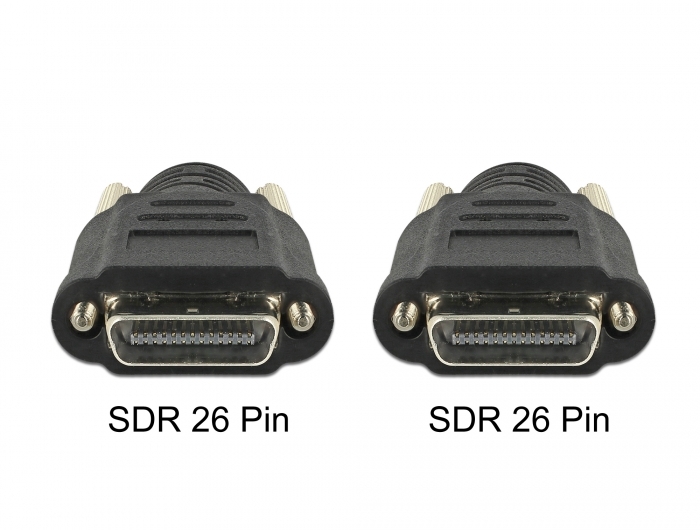

  1 x Honda SDR 26 pin plug with screws >
  1 x Honda SDR 26 pin plug with screws
• Screw type: M2-0.4-6g
• Screw distance: ca. 19.5 mm
• Camera Link 1.2 specification
• Supports Power over Camera Link (PoCL)
• Voltage: 12 V
• Cable gauge:
  28 AWG data line
  24 AWG power line
• Cable diameter: ca. 9.5 mm
• Copper conductor
• Gold-plated connectors
• Data transfer rate up to:
  Base Configuration 2.04 Gb/s
  Medium Configuration 4.08 Gb/s
  Full Configuration 5.44 Gb/s
• Colour: black
• Length incl. connectors (L): ca. 2 m
Package content:
• Camera Link cable
Data sheet:
http://www.tragant.de/produkt/85648/pdf.html?sprache=en
