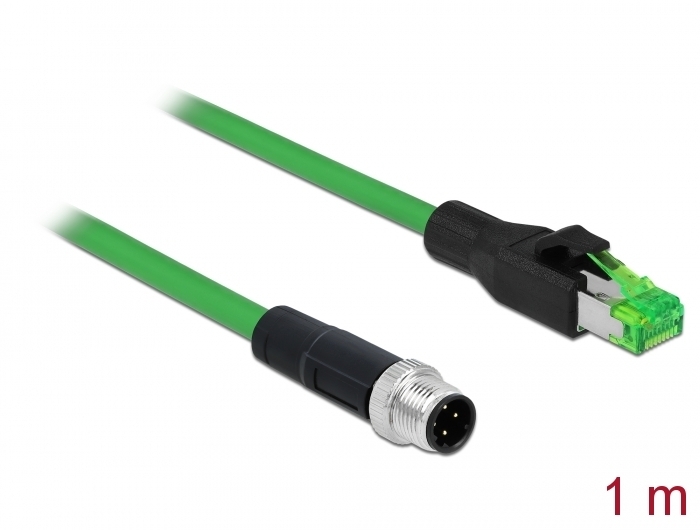

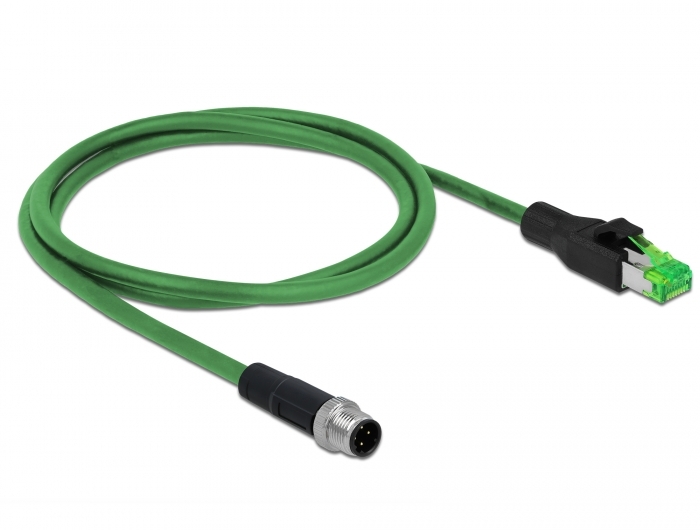

Delock Network cable M12 4 pin D-coded to RJ45 plug PVC 1 m

DELOCK

85437

New

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
System requirements:
• A free M12 female port
• A free RJ45 jack
Specification:

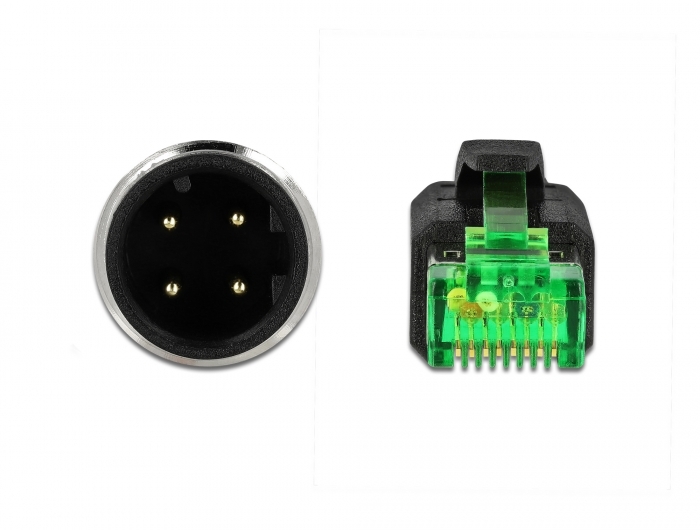

• Connectors:
  1 x M12 male 4 pin D-coded >
  1 x RJ45 plug

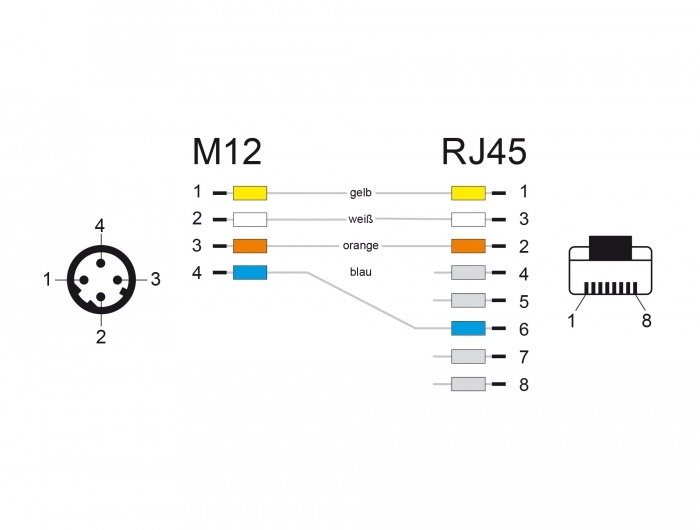

• Pin assignment according to PROFINET standard
• Shielding: aluminium foil, transparent foil, tinned copper braiding
• Tinned copper conductors
• Cable gauge: 22 AWG
• Cable diameter: ca. 6.5 mm
• Cable jacket material: PVC
• Max. number of bending cycles: 1,000,000
• Smallest bending radius:
  19.5 mm with fixed installation
  45.5 mm with flexible installation
• UV-resistant
• Flammability class: FT4
• Operating temperature: -40 °C ~ 70 °C
• Protection class: IP20
• Colour: green
• Length incl. connectors: ca. 1 m
Package content:
• Patch cable
Data sheet:
http://www.delock.de/produkt/85437/pdf.html?sprache=en
