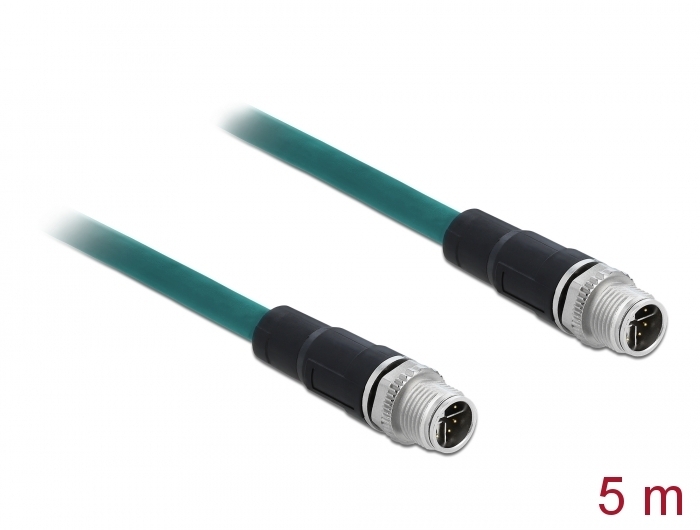

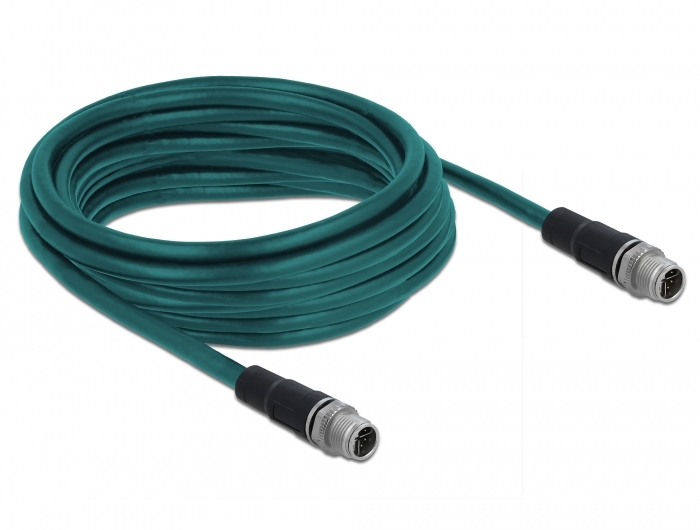

Delock Network cable M12 8 pin X-coded TPU 5 m

DELOCK

85916

New

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

Durable TPU cable jacket
The material of the cable jacket makes the cable flexible and durable, making it suitable for use in drag chains and harsh environments.

The cable is oil and UV resistant and meets the high requirements for industrial applications.
System requirements:
• A free M12 female port
Specification:
• Connectors:

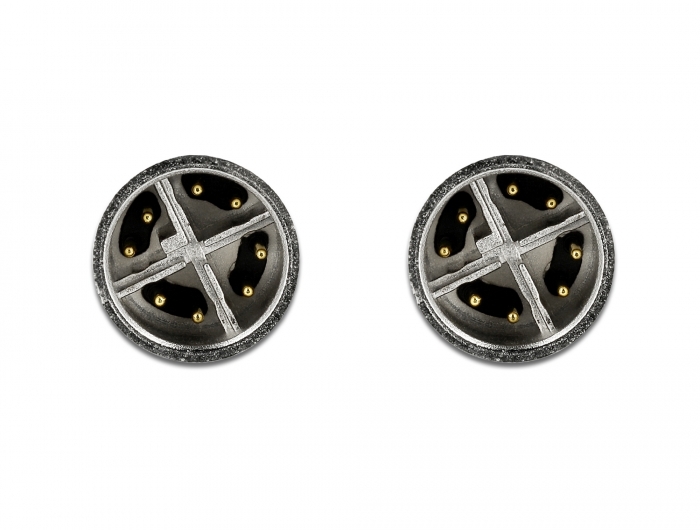

  1 x M12 male 8 pin X-coded >
  1 x M12 male 8 pin X-coded
• Cat.6A specification

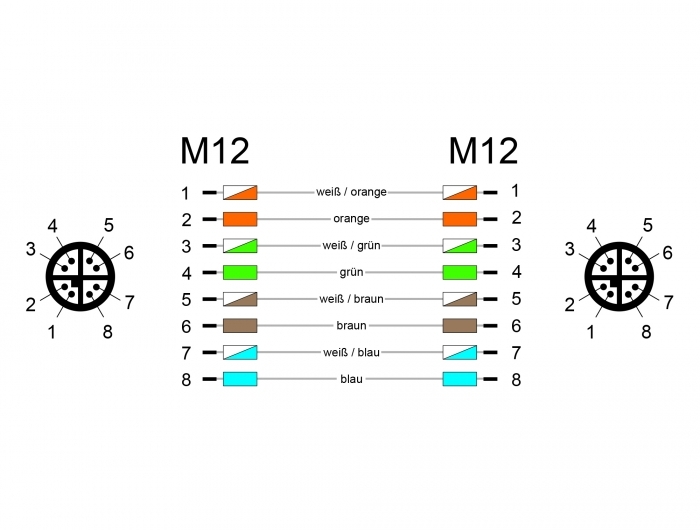

• Pin assignment: 1:1
• Suitable for drag chains
• S/FTP
• Shielding: aluminium foil, tinned copper braiding
• Copper cable
• Cable gauge: 26 AWG
• Cable diameter: ca. 6.4 mm
• Cable jacket material: PUR (TPU)
• Max. number of bending cycles: 1,000,000
• Smallest bending radius:
  32 mm with fixed installation
  64 mm with flexible installation
• Oil-resistant according to DIN EN 60811-2-1
• UV-resistant
• LS0H (halogen-free)
• Flammability class: FT2
• Operating temperature: -20 °C ~ 80 °C
• Protection class: IP67
• Colour: water blue
• Length incl. connectors: ca. 5 m
Package content:
• Patch cable
Data sheet:
http://www.delock.de/produkt/85916/pdf.html?sprache=en
