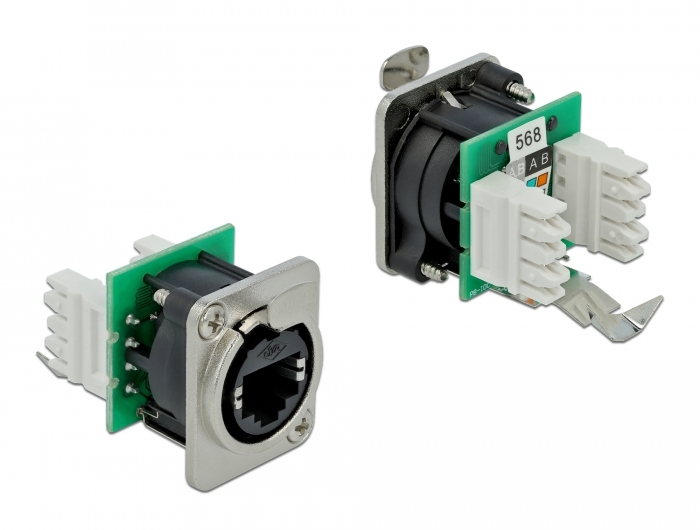

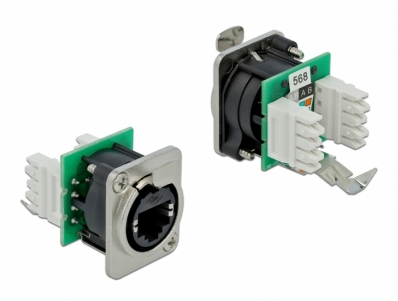

Delock D-Type Module RJ45 jack to LSA

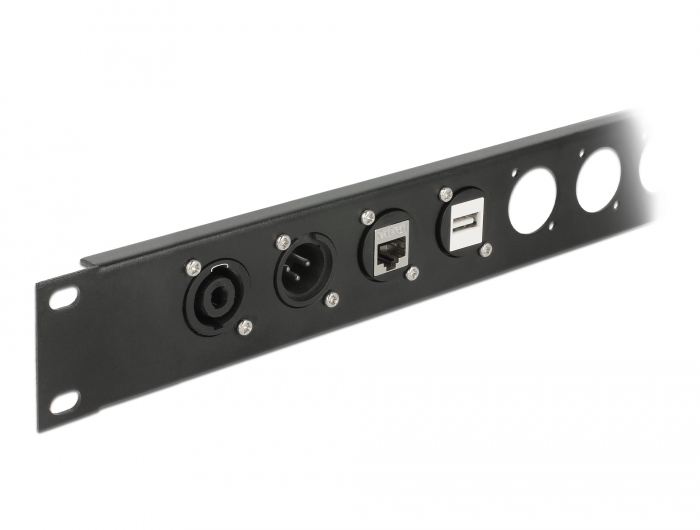

This module by Delock can be mounted e.g. in panels or cases with D-type openings for XLR jacks.
This makes it ideal for integrating digital equipment into professional audio systems.
• Connectors:
  1 x RJ45 jack (8P/8C) >
  LSA (toolfree)
• Cat.5e specification
• Shielded (STP)
• TIA-568A/B pinout
• Locking system
• Material: zinc die cast
• Colour: silver
• For D-type ports with 24 x 19 mm
• Panel cut-out (diameter): ca. 24 mm
• Two mounting holes for screw fastening
• Dimensions (LxWxH): ca. 38 x 26 x 31 mm
Package content:
• D-Type module
• 2 x screw M2.5
