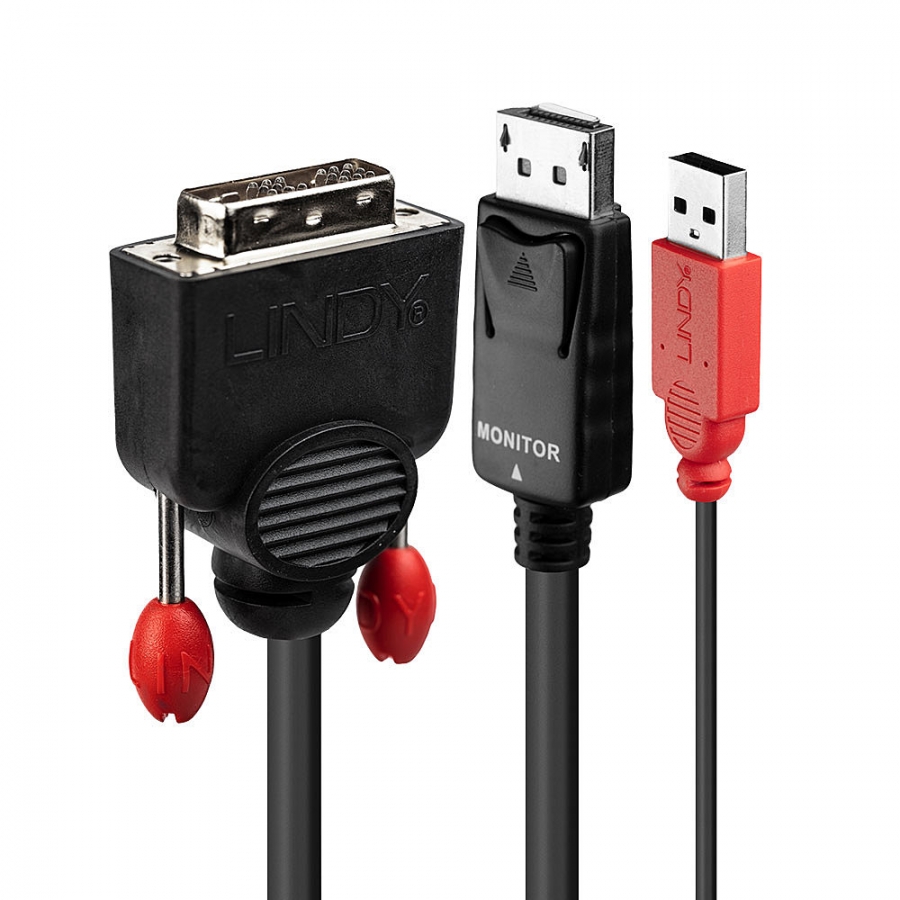

3m DVI to DisplayPort Cable

Connectors

• Connector A: DVI (18+1)  Male
• Connector B: DisplayPort Male
• Housing Material:
  • DisplayPort:ABS
  • DVI: PVC
  • USB:PVC
• Connector Plating: Nickel plated
• Pin Construction: Copper
• Pin Plating: Nickel plated
• Dimensions (approx.) WxDxH:
  • DP: 40x19.6x11.89mm (1.57x0.77x0.47in)
  • DVI: 46.3x40x16.5mm (1.82x1.57x0.65in)
  • USB: 35.5x15.2x8mm (1.4x0.6x0.31in)



Cable Construction

• Length: 3m (9.84ft)
• Standard: DP1.1
• Colour: Black, red USB connector
• Type: Round
• Jacket Diameter: 6mm
• Jacket Material: PVC
• Conductor Material: TC
• Conductor Gauge: 28AWG
• Shielding: Aluminum BRAID

Specifications

• Supported Bandwidth: 4.95Gbps
• Maximum Resolution: 1920x1200@60Hz
• Nominal Attenuation:
  • 100MHz~450MHz  -2.44--5.099dB
  • 450MHz~8100MHz  -5.094~32.906dB
• Minimum Bend Radius: 60mm
• Operating Temperature: 0°C - 75°C (32°F - 167°F)
• Storage Temperature:  -10°C - 80°C (14°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65

Purchasing Information

• No.: 41978
• EAN: 4002888419789

This product is also available in other lengths

• 41975 - 0.5m (1.64ft)
• 41976 - 1m (3.28ft)
• 41977 - 2m (6.56ft)
• 41978 - 3m (9.84ft)
• 41979 - 5m (16.40ft)
