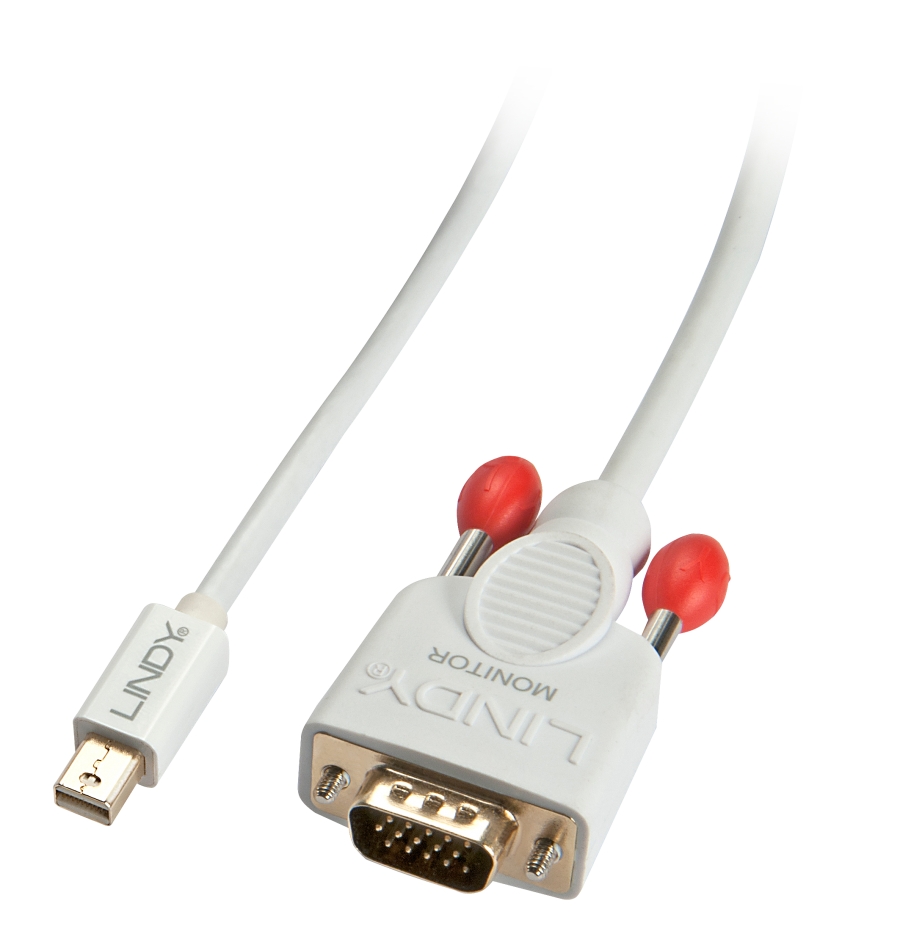

1m Mini DisplayPort to VGA Cable, White

Connectors

• Connector A: Mini DisplayPort Male
• Connector B: VGA Male
• Housing Material:
  • Mini DisplayPort: PVC
  • VGA: PVC
• Connector Plating: Gold plated
• Pin Construction: Copper
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH:
  • Mini DisplayPort:17.8x10.8x7.9mm (0.7x0.43x0.31in)
  • VGA: 53x33.8x16.7mm (2.09x1.33x0.66in)



Cable Construction

• Length: 1m (3.28ft)
• Standard: VGA, DisplayPort 1.1
• Colour: White
• Type: Round
• Jacket Diameter: 4.8mm (0.19in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 32AWG
• Shielding: Aluminum Braid 85%

Specifications

• Supported Bandwidth: 1.65Gbps
• Maximum Resolution: 1920x1200@60Hz
• Nominal Attenuation:
  • 100MHz-450MHz 2.44-5.099dB
  • 450MHz-8100MHz  5.094-32.906dB

• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature:  -10°C - 85°C (14°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65

Purchasing Information

• No.: 41966
• EAN: 4002888419666

This product is also available in other lengths

• 41965 - 0.5m (1.64ft)
• 41966 - 1m (3.28ft)
• 41967 - 2m (6.56ft)
• 41968 - 3m (9.84ft)
• 41969 - 5m (16.44ft)
