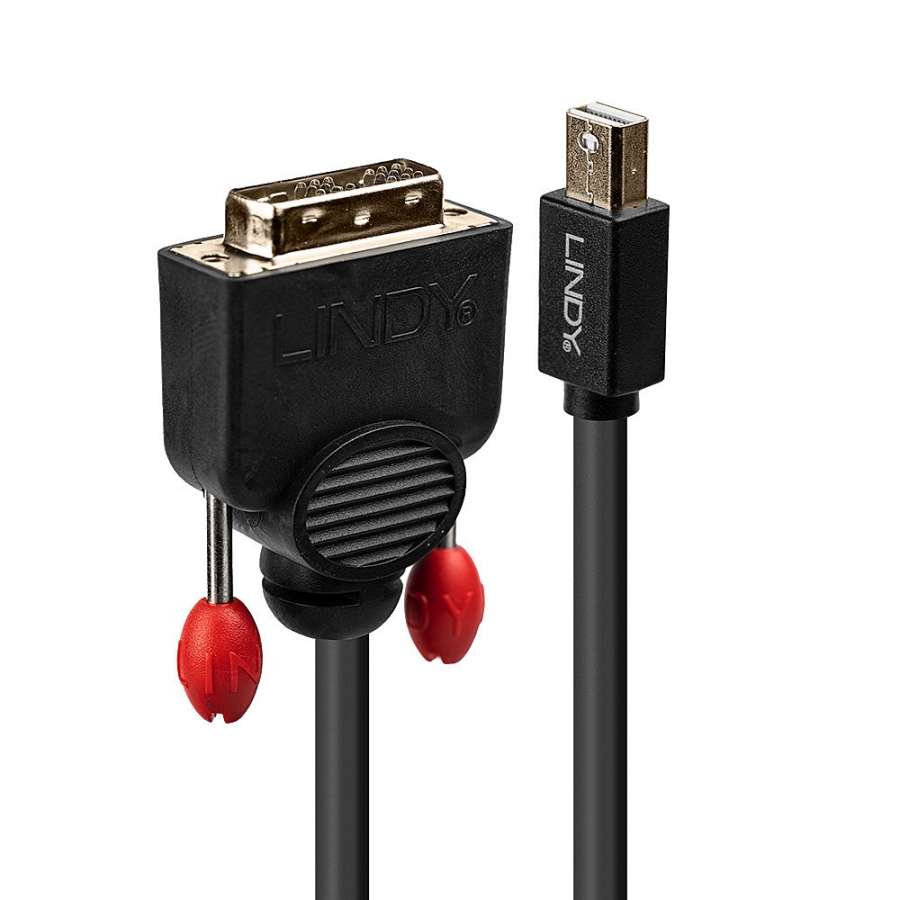

0.5m Mini DisplayPort to DVI Cable, Black

LIN41950

New

Connectors

  • Connector A: Mini DisplayPort Male
  • Connector B: DVI-D Male
  • Housing Material:
    • Mini DisplayPort: PVC
    • DVI: PVC
  • Connector Plating: Gold plated
  • Pin Construction: Copper
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH:
    • Mini DisplayPort: 17.8x10.8x7.9mm (0.7x0.43x0.31in)
    • DVI: 46x39.8x15.9mm (1.81x1.57x0.63in)
  •

Cable Construction

  • Length: 0.5m (1.64ft)
  • Standard: DVI-D (Single Link), DisplayPort 1.1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.8mm (0.19in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 30AWG
  • Shielding: Aluminum Braid 85%



Specifications

  • Supported Bandwidth: 1.65Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation:
    • 100MHz-450MHz 2.44-5.099dB
    • 450MHz-8100MHz 5.094-32.906dB
  • Minimum Bend Radius: 50mm (1.97in)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature:  -10°C - 85°C (14°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65



Purchasing Information

  • No.: 41950
  • EAN: 4002888419505



This product is also available in other lengths

  • 41950 - 0.5m (1.64ft)
  • 41951 - 1m (3.28ft)
  • 41952 - 2m (6.56ft)
  • 41953 - 3m (9.84ft)
  • 41954 - 5m (16.44ft)
