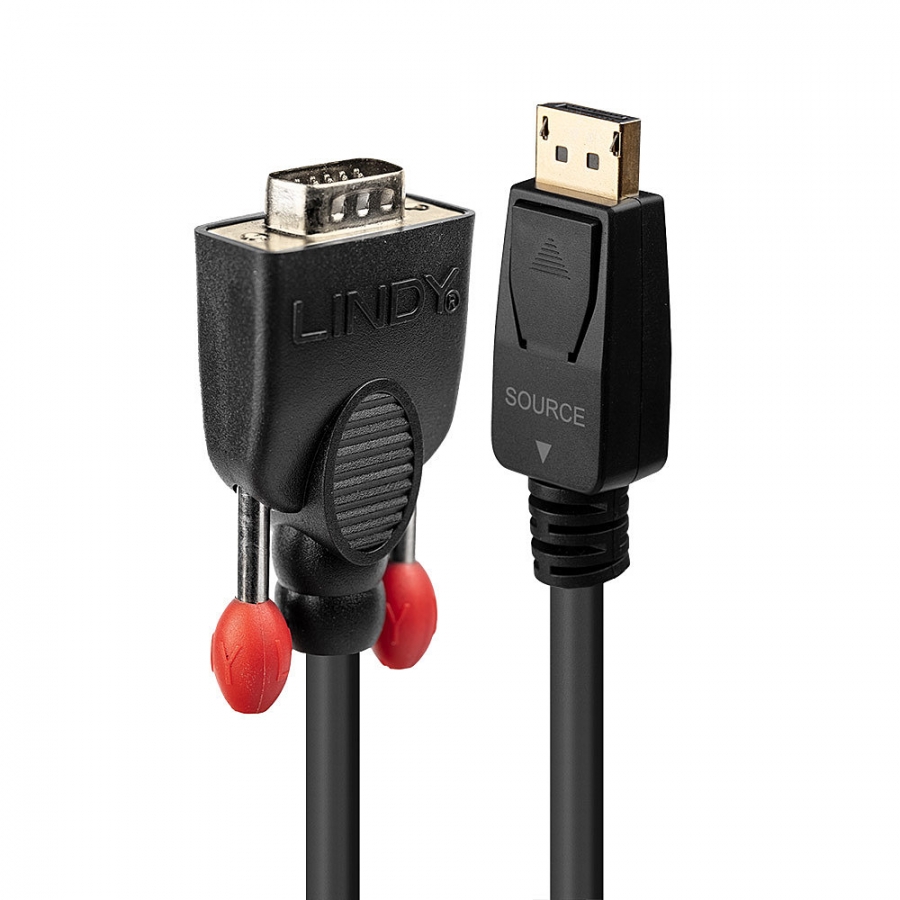

0.5m DisplayPort to VGA Cable

LIN41940

New

Connectors

  • Connector A: DisplayPort Male
  • Connector B: VGA Male
  • Housing Material:
    • DisplayPort: ABS
    • VGA: PVC
  • Connector Plating: Gold plated
  • Pin Construction: Copper
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH:
    • DisplayPort: 42x19.8x11.6mm (1.65x0.78x0.46in)
    • VGA: 53x33.8x16.7mm (2.09x1.33x0.66in)
  •

Cable Construction

  • Length: 0.5m (1.64ft)
  • Standard: VGA, DisplayPort 1.1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6mm (0.24in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG
  • Shielding: Aluminum Braid 85%



Specifications

  • Supported Bandwidth: 1.65Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation:
    • 100MHz-450MHz 2.44-5.099dB
    • 450MHz-8100MHz  5.094-32.906dB
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature:  -10°C - 85°C (14°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65



Purchasing Information

  • No.: 41940
  • EAN: 4002888419406



This product is also available in other lengths

  • 41940 - 0.5m (1.64ft)
  • 41941 - 1m (3.28ft)
  • 41942 - 2m (6.56ft)
  • 41943 - 3m (9.84ft)
  • 41944 - 5m (16.44ft)
