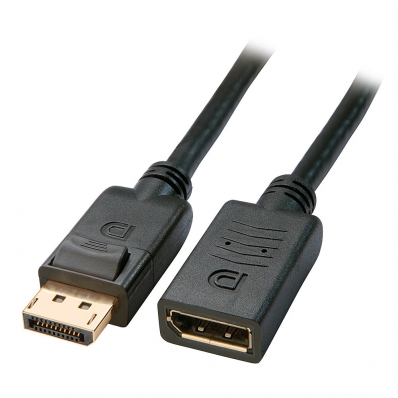

0.5m DisplayPort Extension Cable

LIN41622

New

Connectors

  • Connector A: DisplayPort Male
  • Connector B: DisplayPort Female
  • Housing Material: PVC + ABS
  • Connector Plating: Gold plated
  • Pin Construction: Copper
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH:
    • M: 20x45x11mm (0.79x1.77x0.43in)
    • F: 21.8x38.8x11.5mm (0.86x1.53x0.45in)
  •

Cable Construction

  • Length: 0.5m (1.64ft)
  • Standard: DP 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6.5mm (0.27in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG
  • Shielding: Copper Braid 85%



Specifications

  • Supported Bandwidth: 21.6 Gbps
  • Maximum Resolution: 4K@60Hz
  • Nominal Attenuation: -5dB@100MHz-450MHz, -37.1dB@ 450MHz-7GHz
  • Minimum Band Radius: 65mm (2.56in)
  • Operating Temperature: 0°C - 45°C (-17.8°F - 113°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL



Purchasing Information

  • No.: 41622
  • EAN: 4002888416221



This product is also available in other lengths

  • 41622 - 0.5m (1.64ft)
  • 41623 - 1m (3.28ft)
  • 41624 - 2m (6.56ft)
  • 41625 - 3m (9.84ft)
