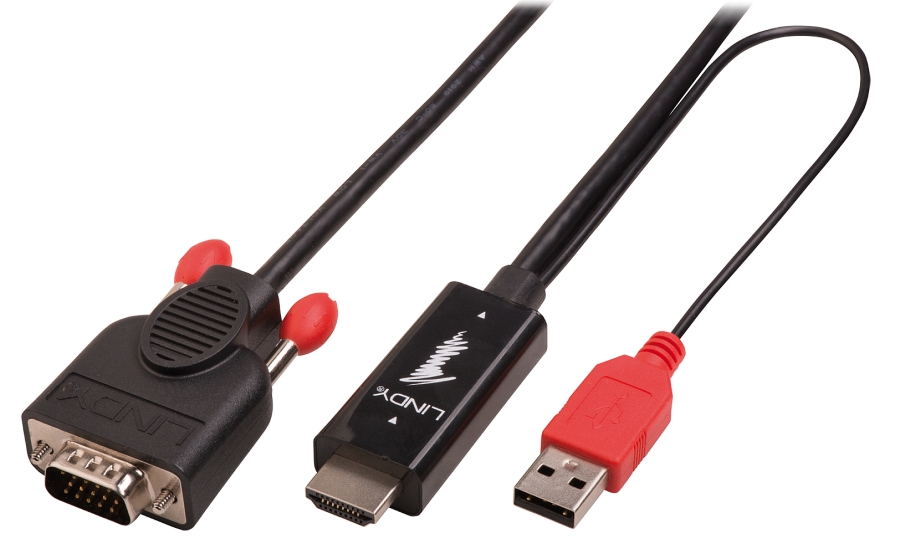

2m HDMI to VGA Cable

LIN41456

New

Connectors

  • Connector A: HDMI Type A Male
  • Connector B: VGA Male
  • Housing Material:
    • HDMI: ABS
    • VGA:PVC
    • USB: PVC
  • Connector Plating: Nickel plated
  • Pin Construction: Copper
  • Pin Plating: Nickel plated
  • Dimensions (approx.) WxDxH:
    • HDMI: 54.4x25x10.1mm (2.14x0.98x0.4in)
    • VGA:46x34x20mm (1.81x1.34x0.79in)
    • USB: 37x16x7mm (1.46x0.63x0.28in)
  •

Cable Construction

  • Length: 2m (6.56ft)
  • Standard: HDMI 1.3
  • Colour: Black, red USB connector
  • Type: Round
  • Jacket Diameter: 6mm
  • Jacket Material: PVC
  • Conductor Material: TC
  • Conductor Gauge: 28AWG
  • Shielding: Aluminum BRAID



Specifications

  • Supported Bandwidth: 4.95Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation:
    • 100MHz~450MHz  -2.44--5.099dB
    • 450MHz~8100MHz  -5.094~32.906dB
  • Minimum Bend Radius: 60mm
  • Operating Temperature: 0°C - 75°C (32°F - 167°F)
  • Storage Temperature:  -10°C - 80°C (14°F - 176°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65



Purchasing Information

  • No.: 41456
  • EAN: 4002888414562



This product is also available in other lengths

  • 41455 - 1m (3.28ft)
  • 41456 - 2m (6.56ft)
  • 41457 - 3m (9.84ft)
  • 41458 - 5m (16.40ft)
