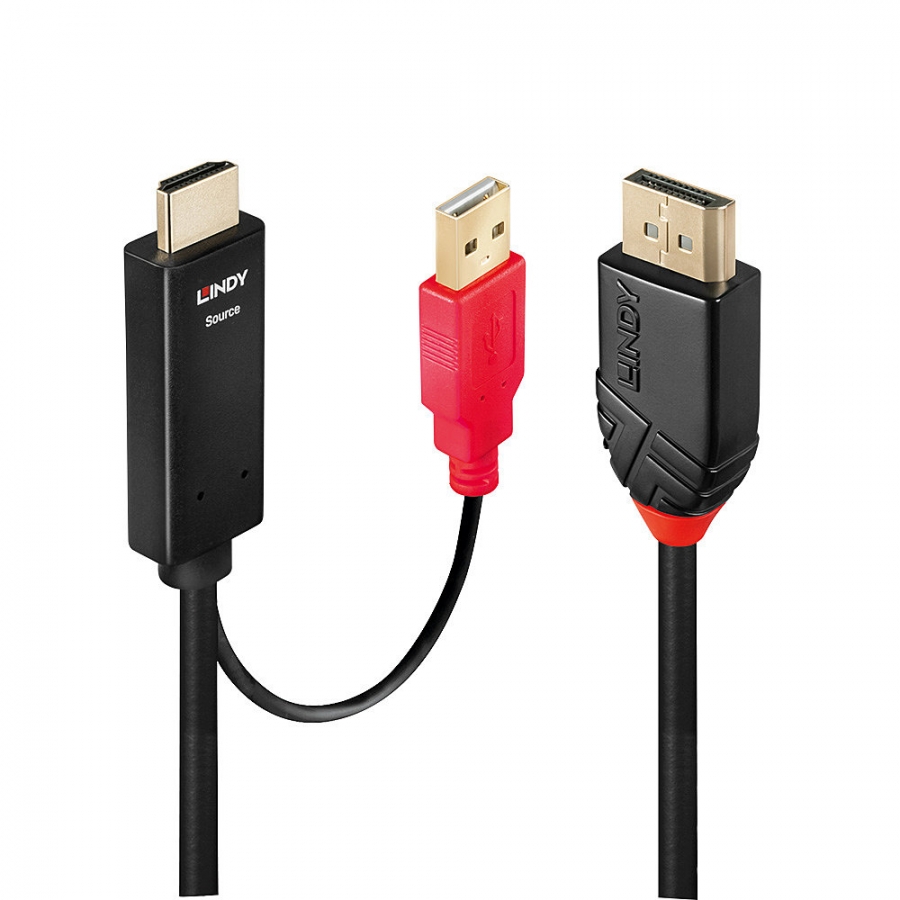

5m HDMI to DisplayPort Cable

LIN41428

New

Connectors

  • Connector A: HDMI Type A Male, USB Type A Male
  • Connector B: DisplayPort A Male
  • Housing Material: ABS
  • Connector Plating: Gold 1µm
  • Pin Construction: Phosphor Bronze
  • Pin Plating: Gold 15µm
  • Dimensions (approx.) WxDxH:
    • HDMI: 48x20.9x11.3mm (1.89x0.82x0.44in)
    • USB: 37.5x15.8x8mm (1.48x0.62x0.31in)
    • DisplayPort: 36.4x20x9.4mm (1.43x0.79x0.37in)
  •

Cable Construction

  • Length: 5m (16.44ft)
  • Standard: DisplayPort 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.5mm (0.22in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 30AWG
  • Shielding: Aluminium Braid, 85%



Specifications

  • Supported Bandwidth: 10.2Gbps
  • Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
  • Nominal Attenuation:
    • 300kHz-825MHz <5dB
    • 825MHz-2.475GHz <5dB
    • 2.475GHz-4.125GHz <12dB
    • 4.125GHz-5.1GHz <20dB
  • Minimum Bend Radius: 55mm (2.17in)
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65



Purchasing Information

  • No.: 41428
  • EAN: 4002888414289



This product is also available in other lengths

  • 41424 - 0.5m 1.64ft)
  • 41425 - 1m (3.28ft)
  • 41426 - 2m (6.56ft)
  • 41427 - 3m (9.84ft)
  • 41428 - 5m (16.44ft)
