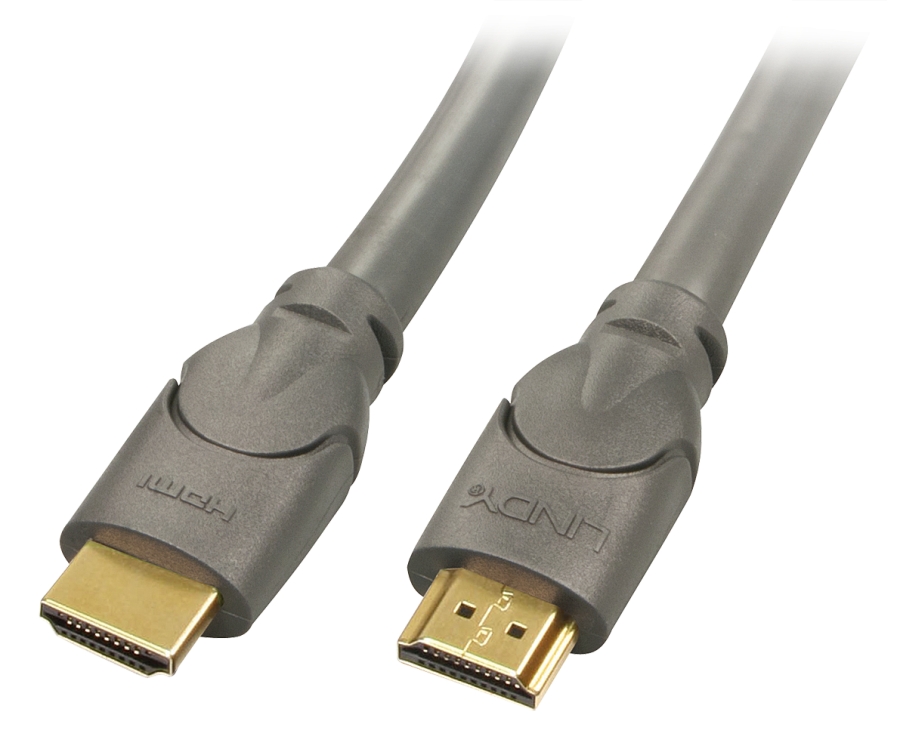

Premium Standard HDMI Cable with Ethernet, 7.5m

LIN41115

New







Connectors:

  • Connector A: HDMI Type A 19 Pin Male
  • Connector B: HDMI Type A 19 Pin Male
  • Housing material: ABS plastic
  • Connector plating: Gold Flash
  • Pin construction: Phosphor Copper
  • Pin plating: Gold 1µ
  • Dimensions (approx.): 22.7 x 13.5 x 39.4mm (WxDxH)


Cable construction:

  • Length: 7.5m
  • Standard: Standard HDMI with Ethernet
  • Colour: Grey
  • Type: Round
  • Jacket diameter: 9.8mm
  • Jacket material: PVC
  • Conductor material: Stranded Core, Tinned Copper
  • Conductor gauge: 24AWG
  • Shielding: Aluminium foil, 125% coverage
  • Ferrite: NA


Technical Information:

  • Supported bandwidth: 340MHz / 10.2Gbps
  • Maximum resolution: 3840 x 2160p 60Hz including 1080p 3D (4:2:0)
  • Maximum colour depth: 8 bit
  • Nominal Attenuation: -5dB@0.3~825MHz, -12dB@825~2475MHz, -20dB@2475~4125MHz, -25dB@4125~5100MHz
  • Weight: 0.75kg
  • Chipset: NA
  • Minimum bend radius: 100mm
  • Operating temperature: -20°C - 80°C
  • Storage temperature: -10°C - 60°C
  • ATC approved: Yes
  • Lengths available: 7.5m - 20m
