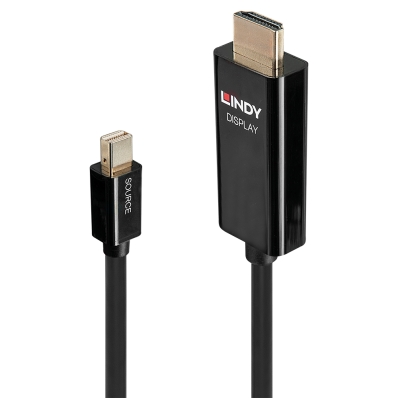

1m Active Mini DisplayPort to HDMI Cable

LIN40911

New

Connectors

  • Connector A: Mini DisplayPort Male
  • Connector B: HDMI Type A Male
  • Housing material: ABS
  • Connector plating:  24K Gold 1µm
  • Pin construction: Brass
  • Pin Plating:  24K Gold 3µm
  • Dimensions:
    • Mini DisplayPort : 18.6x11.1x9mm (0.73x0.44x0.35in)
    • HDMI : 44.5x20.8x10.8mm (1.75x0.82x0.43in)
  •

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: HDMI 2.0, Mini DisplayPort 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: OD: 5mm (0.2in)
  • Jacket Material: PVC
  • Conductor Material: Tinned copper
  • Conductor Gauge: 32AWG
  • Shielding: Copper braid, 85% coverage



Technical Information

  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60HZ 4:4:4 8Bit
  • Nominal Attenuation:
    • -12dB@825-2475MHz
    • -20dB@ 2475-4125MHz
    • -25dB@4125-5100MHz
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Purchasing Information

  • No.: 40911
  • EAN: 4002888409117
