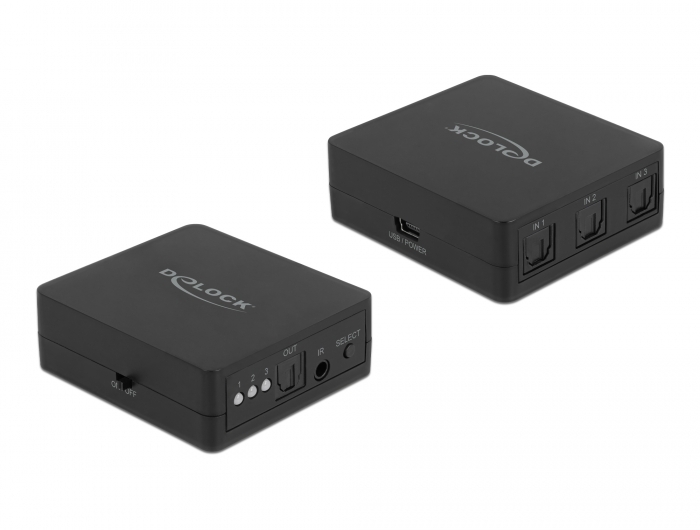

Delock S/PDIF TOSLINK Switch 3 In 1 Out with IR Remote Control and USB Powered

DELOCK

63395

New

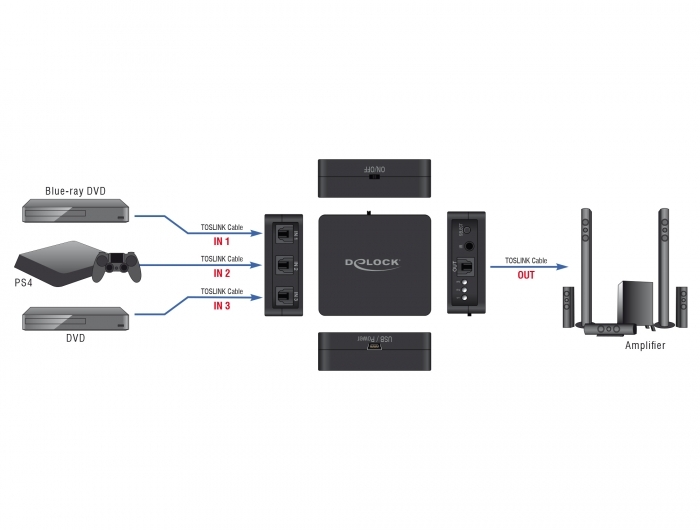

With this TOSLINK switch by Delock up to three TOSLINK devices can be operated for example on a home theater system.

Supports HD audio formats
The switch supports all popular 2.0 and 5.1 audio formats such as LPCM, Dolby Digital, DTS Audio and therefore offers a sound experience like in a cinema.

High resolution sampling rate
The switch offers a sampling rate of up to 24 bit and 96 kHz. This allows a loss-free playback of the sound in the High-Res audio range.

High transmission distance
The switch supports an output transmission distance of up to 40 m via an optical TOSLINK cable with a signal loss of less than 0.2 dB / m.

Manual switching or with IR remote control
The switch can be toggled or turned off by using buttons on the device or by using the included infrared remote control. This allows the inputs to be switched easily and conveniently.

Last time working state memory
The switch automatically remembers the last working state when powered off and therefore uses the last selected input.

USB powered
The switch does not require an additional external power supply, power will be supplied via the included USB cable.
System requirements:
• Digital optical audio signal
• A free USB Type-A female port
Specification:

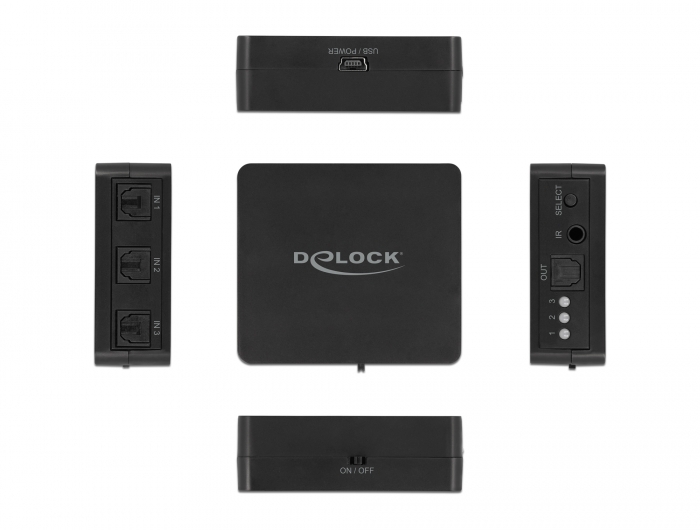

• Connectors:
  Input:
  3 x TOSLINK female S/PDIF
  1 x USB Type Mini-B female (5 V power supply)
  1 x 3.5 mm 3 pin stereo jack female (infrared input)
  Output: 1 x TOSLINK female S/PDIF
• Supported sample rates: 32 / 44.1 / 48 / 96 kHz
• Bit rate 16 - 24 Bit
• Baud rate: max. 16 Mbps
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Supports signal retiming
• On / Off switch
• Switch to change the input source
• 3 x LED indicator (blue) for selected input
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 61 x 54 x 20 mm
• Voltage: 5 V
• Surge Protection
• USB bus powered

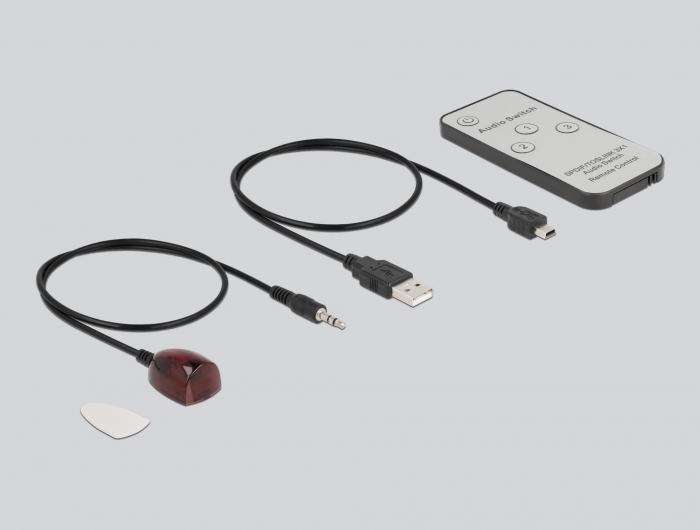

Package content:
• TOSLINK switch
• USB Type-A to Type Mini-B cable, length ca. 75 cm
• Infrared receiver with 3.5 mm stereo jack plug, cable length ca. 60 cm
• Adhesive pad for infrared receiver
• Remote control
• User manual
Data sheet:
http://www.delock.de/produkt/63395/pdf.html?sprache=en
