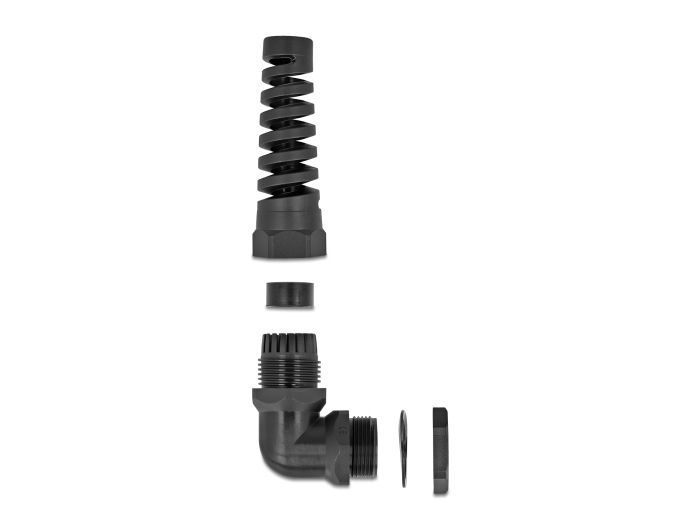

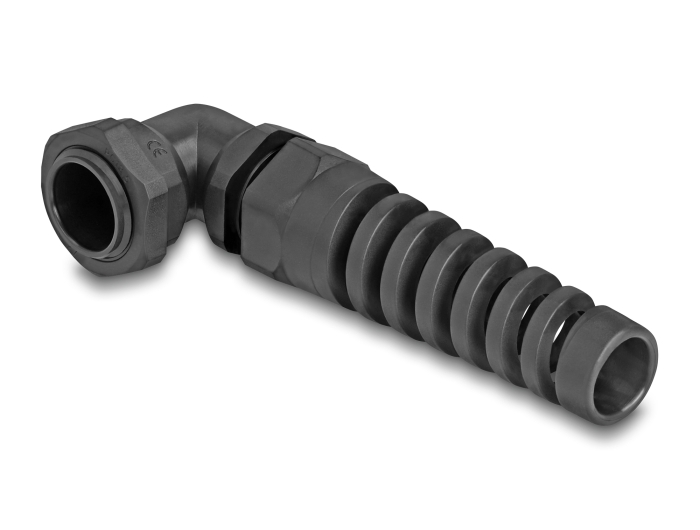

Delock Cable Gland with strain relief 90° angled PG13.5 black

DELOCK

60585

New

This cable gland by Delock allows a watertight seal to the housing for the lead-through of cables and electrical tubes. The angled design is perfectly suited to use the cable gland in installation areas with limited space.

Additional protection through strain relief

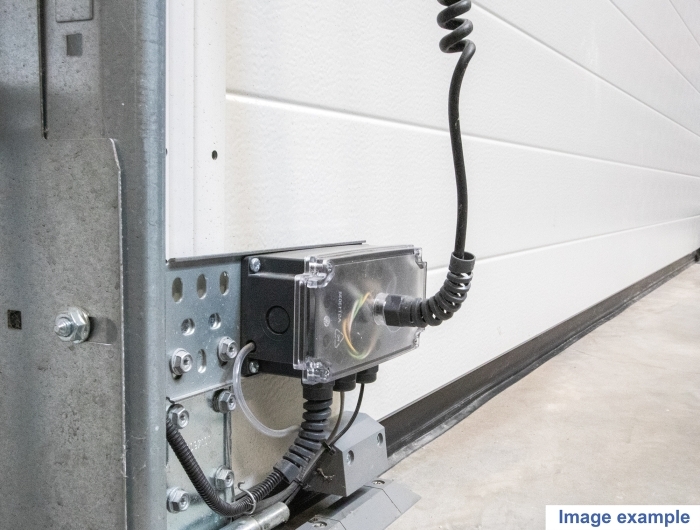

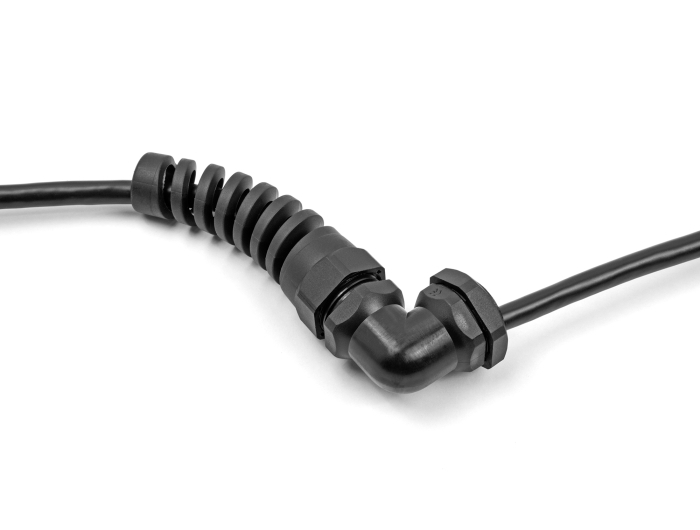

Due to the bend protection spiral, the flexible cables are secured and protected from excessive bending, e.g. in the case of moving machine parts.

IP68 dust and waterproof
The cable gland also offers increased protection against dirt and moisture.

Multifunctional application
The robust design is ideal for use in automation, the robotics industry and machinery.
Specification:
• Thread size: PG13.5
• Thread length: 9 mm
• Spanner width: 24 mm
• Protection class: IP68
• Cable diameter:
  min.: 6 mm
  max.: 12 mm
• Operating temperature: -40 °C ~ 100 °C
• Material: plastic
• Colour: black RAL9005
Package content:
• Cable gland
Data sheet:
http://www.delock.de/produkt/60585/pdf.html?sprache=en
