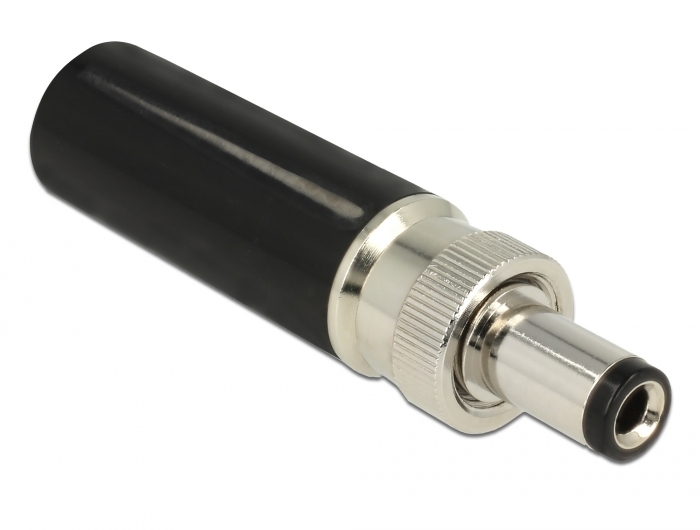

Delock Connector DC 5.5 x 2.5 mm with 9.5 mm length male

DELOCK

89914

New

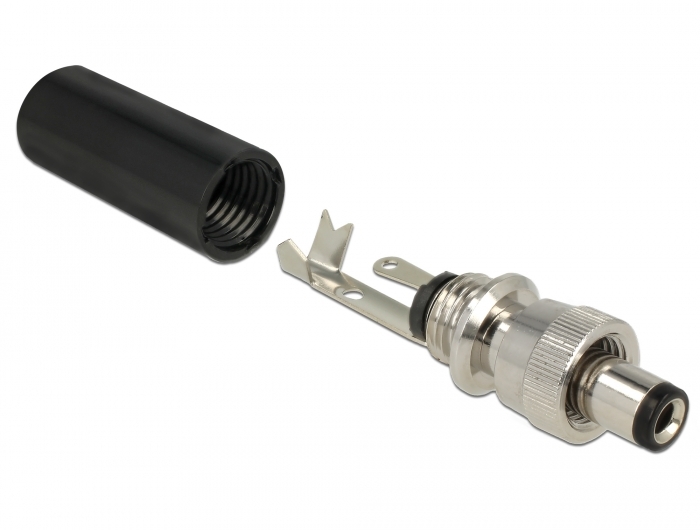

This DC connector by Delock is made for soldering to a cable and can be used for connection of different devices with 5.5 x 2.5 mm DC jack. The screw type connector on the plug supports a tight connection with the suitable DC jacks by Delock e.g. item 89911.
System requirements:
• A free DC female port 5.5 x 2.5 x 9.5 mm


Specification:
• Connectors:

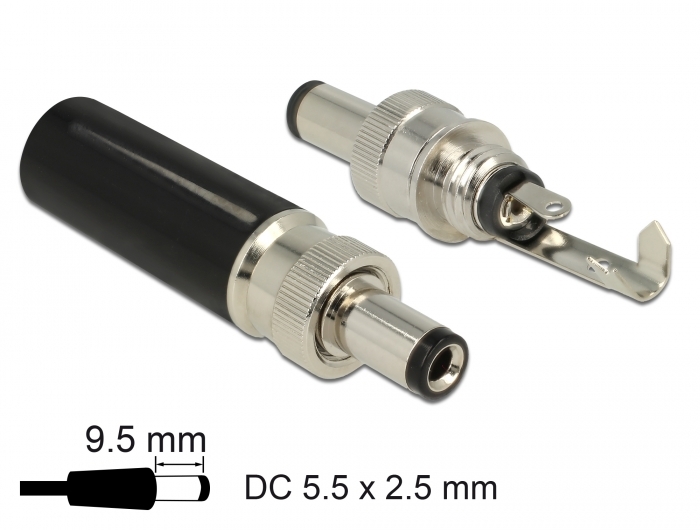

  1 x DC 5.5 x 2.5 x 9.5 mm male >
  1 x solder connection
• Dielectric force: AC 500 V / 1 minute
• Isolation resistance: 100 MΩ / min. (500 V DC)
• Voltage: max. 18 V
• Current: max. 2 A
• Length: ca. 39.5 mm
• Diameter: ca. 10.6 mm
Package content:
• DC connector
Data sheet:
http://www.delock.de/produkt/89914/pdf.html?sprache=en
