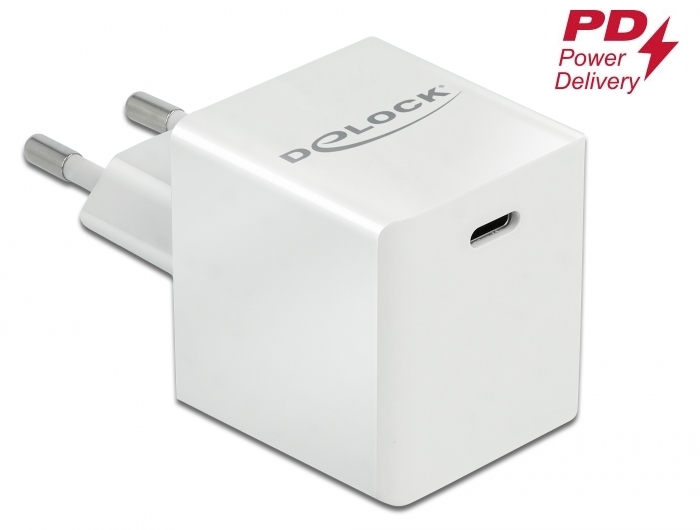

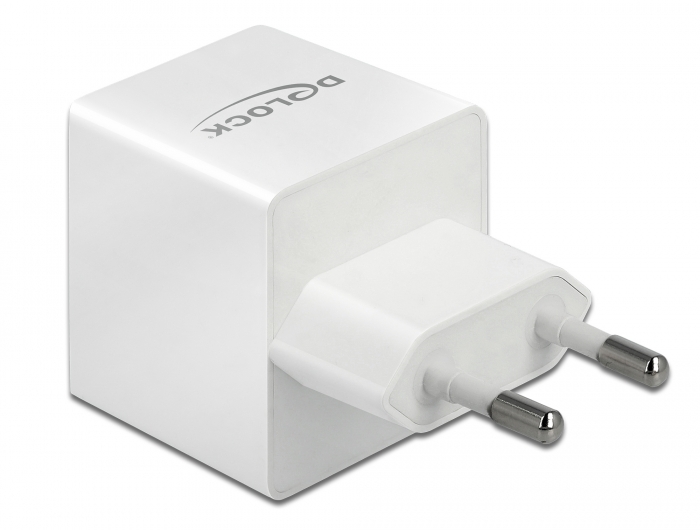

Delock USB Charger 1 x USB Type-C™ PD 3.0 with 40 W

DELOCK

41446

New

This USB Power Delivery (PD) charger by Delock can be used to charge mobile devices with USB Type-C™ connector. It provides various voltages from 5 V to 20 V and power up to 40 watt.

GaN technology
The use of novel GaN (gallium nitride) transistors increases efficiency compared to conventional silicon technology. Even with very compact dimensions a high output power can be achieved.
Specification:
• Connectors:
  1 x USB Type-C™ female
  1 x plug CEE 7/16
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: PD 3.0: 5.0 V, 9.0 V / 3.0 A, 15.0 V / 2.6 A, 20.0 V / 2.0 A
• Output power: max. 40.0 W total
• Average active efficiency 87.29 % (5.0 V / 3.0 A)
• Average active efficiency 89.68 % (20.0 V / 2.0 A)
• Efficiency at low load (10 %) 84.15 % (5.0 V / 3.0 A)
• Efficiency at low load (10 %) 77.61 % (20.0 V / 2.0 A)
• No-load power consumption 0.033 W
• USB Power Delivery (PD) 3.0
• Overload protection
• Over current protection
• Overheating protection
• Short circuit protection
• Colour: white
• Dimensions without plug (LxWxH): ca. 39.5 x 37.5 x 36.0 mm
Package content:
• USB Charger
• User manual
Data sheet:
http://www.delock.de/produkt/41446/pdf.html?sprache=en
