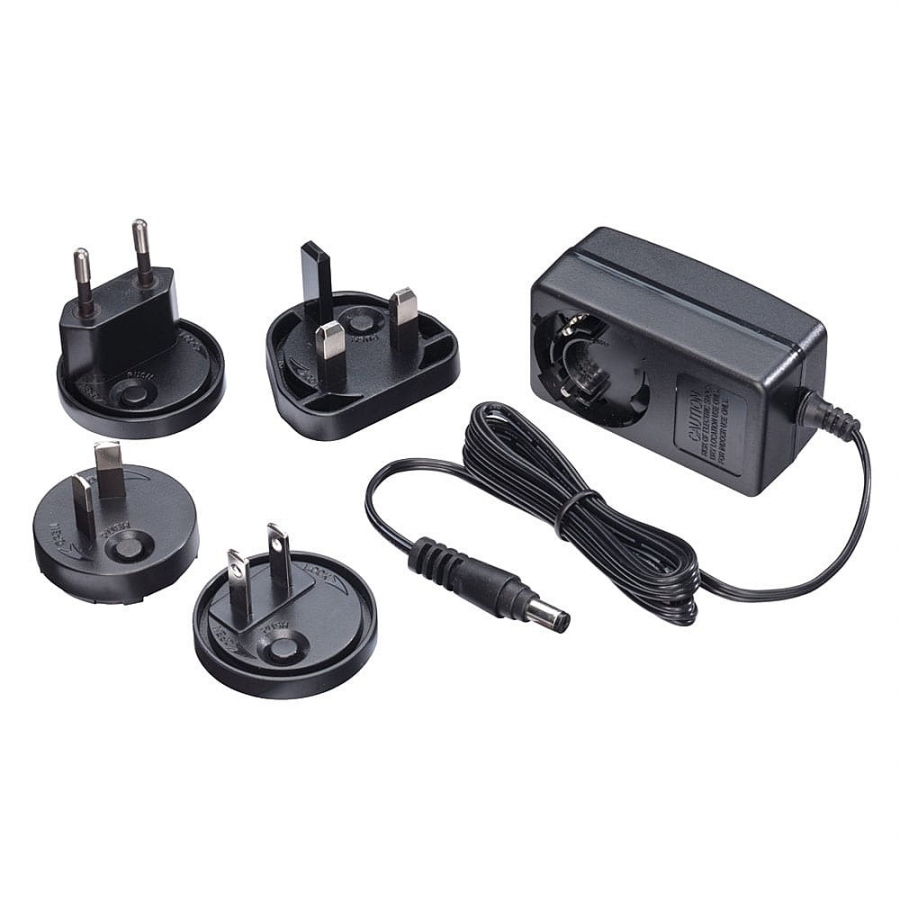

5VDC 2.6A Multi-country Power Supply, 5.5/2.1mm

Specifications

• Input Voltage: 100…240VAC
• Input AC Frequency: 50…60Hz
• Output Voltage: 5V
• Output Voltage Accuracy: 4.75~5.25V
• Output Current (max.): 2.6A
• Output Power: 13W
• Average active efficiency: 0.8047
• Efficiency at low load (10%): Yes
• No-load Power Consumption: 0.1W

Physical Properties

• Dimensions (approx.) WxDxH: 70x39x34mm (2.76x1.54x1.34in)
• DC Cable Length: 1.5m (4.92ft)
• DC Connector Size: 5.5/2.1mm
• Housing Material: Plastic
• Net Weight: 0.18kg (0.4lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Operating Humidity: 0 - 75% RH (non-condensing)
• Storage Humidity: 0 - 95% RH (non-condensing)
• Colour: Black

Miscellaneous

• Manufacturer Name: Powertron
• Commercial Registration No. : 91441900082613408
• Manufacturer Address: JinHe Indursty Area, Yufeng GuanLiQu,

ZhangMuTou, DongGuan City ,

523627

Guangdong China

• Manufacturer Model No.: PA1015-050IB260
• Packaging Type: Carton Box
• Packaging Dimensions: 100x58x90mm (3.94x2.28x3.54in)
• Gross Weight: 0.21kg (0.46lb)
• Warranty (Years): 2
• Certificated: EMC

LVD

ErP

UL

CCC

RCM

PSE

RoHS

REACH

California Proposition 65

Package Content

• Multi-country Power Supply
• UK, EU, US & AUS Adapters
• Lindy Manual

Purchasing Information

• No.: 73828
• EAN: 4002888738286
