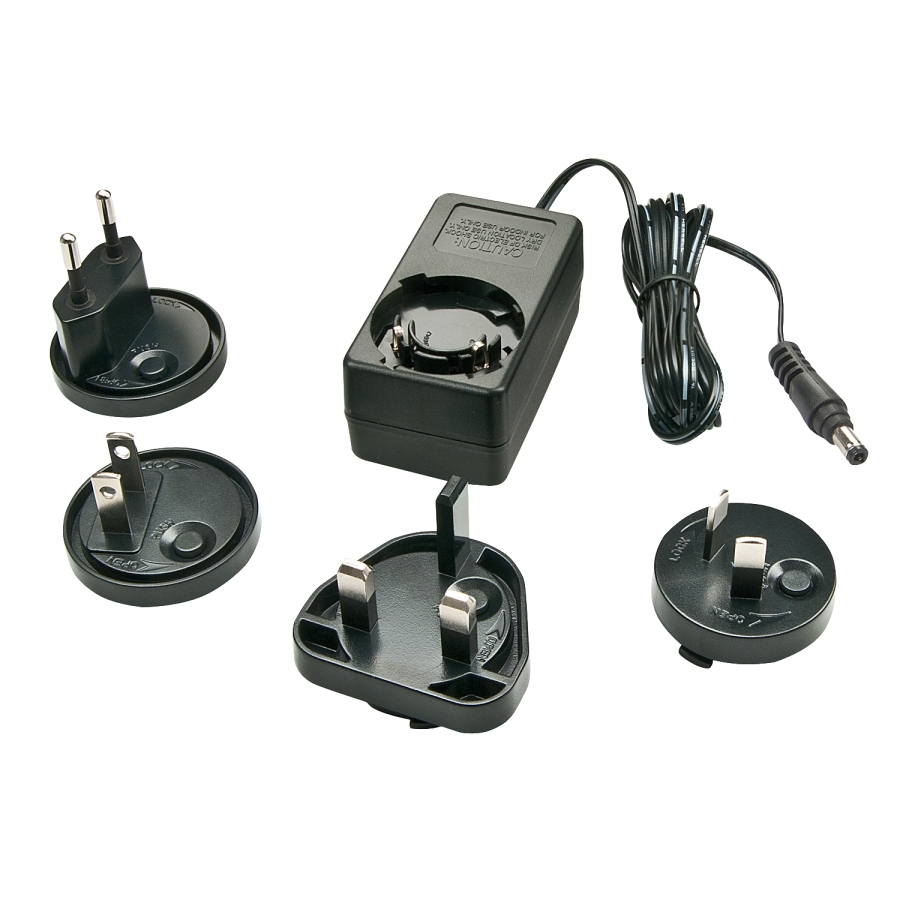

12VDC 1.25A Multi-country Power Supply, 5.5/2.5mm

LIN73807

New

Specifications

  • Input Voltage: 100…240VAC
  • Input AC Frequency: 50…60Hz
  • Output Voltage: 12V
  • Output Voltage Accuracy: 11.4~12.6 V
  • Output Current (max.): 1.25A
  • Output Power: 15W
  • Average active efficiency: 0.8413
  • Efficiency at low load (10%): Yes
  • No-load Power Consumption: 0.1 W



Physical Properties

  • Dimensions (approx.) WxDxH: 70x39x34mm (2.76x1.54x1.34in)
  • DC Cable Length: 1.5m (4.92ft)
  • DC Connector Size: 5.5/2.5mm
  • Housing Material: Plastic
  • Net Weight: 0.168kg (0.37lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Operating Humidity: 0 - 75% RH (non-condensing)
  • Storage Humidity: 0 - 95% RH (non-condensing)
  • Colour: Black



Miscellaneous

  • Manufacturer Name: Powertron
  • Commercial Registration No. : 91441900082613408
  • Manufacturer Address: JinHe Indursty Area, Yufeng GuanLiQu,

ZhangMuTou, DongGuan City ,

523627

GuangDong China

  • Manufacturer Model No.: PA1015-120IB125
  • Packaging Type: Carton Box
  • Packaging Dimensions: 120x90x60mm (4.72x3.54x2.36in)
  • Gross Weight: 0.201kg (0.44lb)
  • Warranty (Years): 2
  • Certificated: EMC

LVD

ErP

UL

CCC

RCM

PSE

RoHS

REACH

California Proposition 65



Package Content

  • Multi-country Power Supply
  • UK, EU, US & AUS Adapters
  • Lindy Manual



Purchasing Information

  • No.: 73807
  • EAN: 4002888738071
