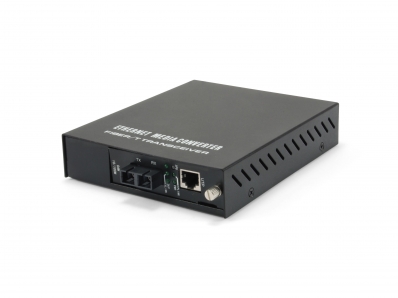

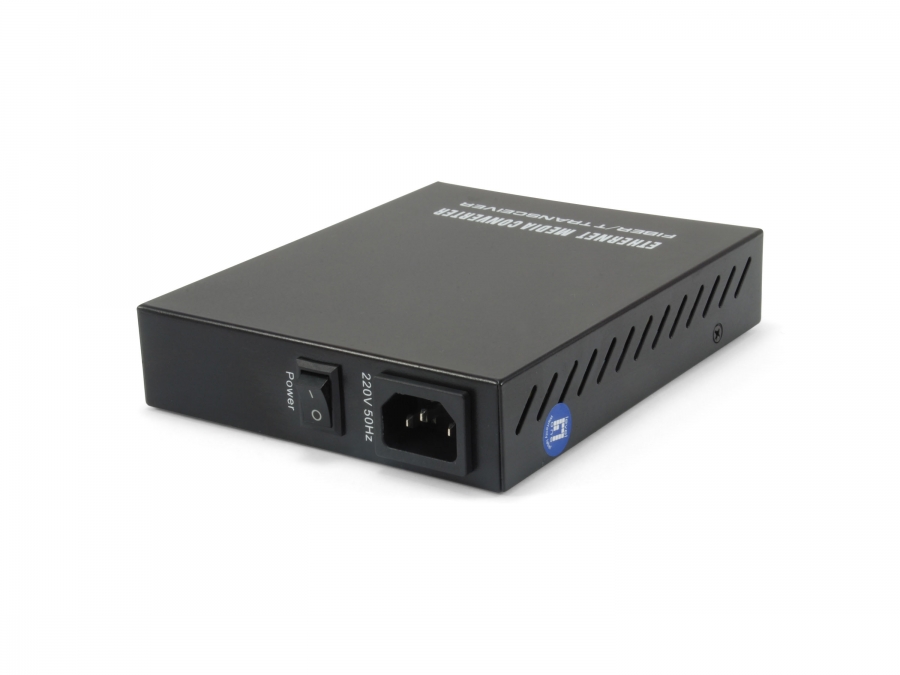

Level One LevelOne Konverter FVM-1101 10/100TX>100FX 2km

LEVEL ONE

FVM-1101

New

FVM-1101 is remote Managed Fast Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100Base-Tx and 100Base-FX, It supports both half-duplex and full-duplex operations and a variety of fiber options. It is double fiber, multi mode, 2km media converterRemote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.Key Features - Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology - Web-based and SNMP Management - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Supports VLAN (tag-based, Q-in-Q)

Maximum data transfer rate100 Mbit/s
Converter input interface10Base-T, 100Base-TX
Converter output interface100Base-FX
Networking standardsIEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Copper ethernet cabling technology10BASE-T, 100BASE-FX, 100BASE-TX
Jumbo frames supportY
Jumbo frames9000
Flow control supportY
VLAN supportY
Store-and-forwardY
Duplex systemFull, Half
Fiber optic connectorLC, SC, ST
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Maximum transfer distance2000 m
Wavelength1310 nm
LED indicatorsActivity, FDX, Link, Power
Product colourBlack
Country of originChina
CertificationFCC, CE
Input voltage100 - 240 V
Output voltage5 V
Output current2 A
Web-based managementY
Width127 mm
Depth156 mm
Height32 mm
Weight720 g
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)5 - 90%
Package width185 mm
Package depth275 mm
Package height62 mm
Package weight880 g
Package typeBox
Sustainability certificatesRoHS
Harmonized System (HS) code85176990
Master (outer) case width360 mm
Master (outer) case length480 mm
Master (outer) case height390 mm
Master (outer) case gross weight17.5 kg
Products per master (outer) case17 pc(s)
