LINDY Extender Transmitter mit HDMI,DP,Typ-C Inputs HDBaseT

Lindy

38338

New

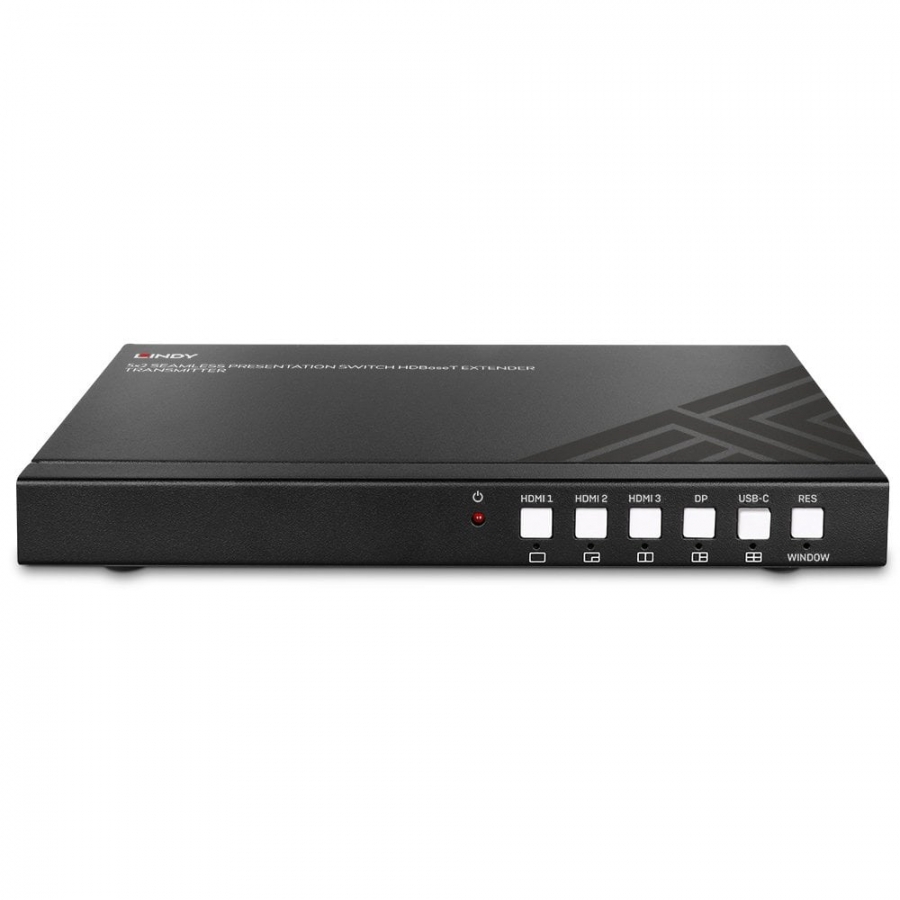

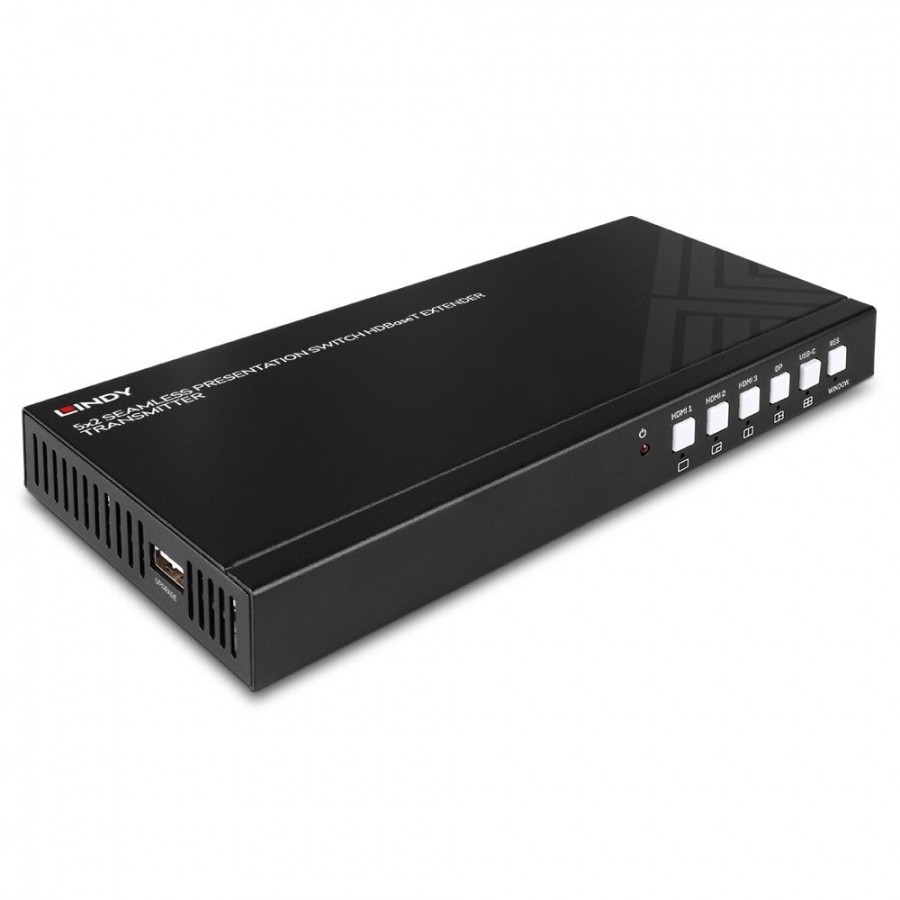

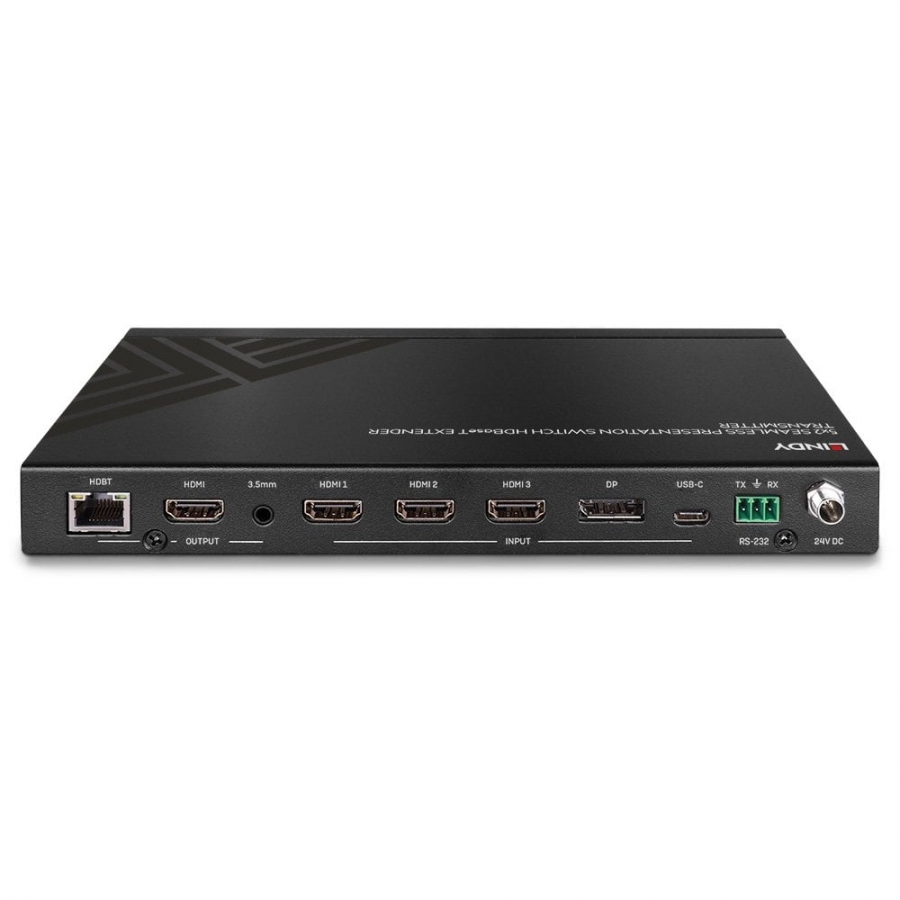

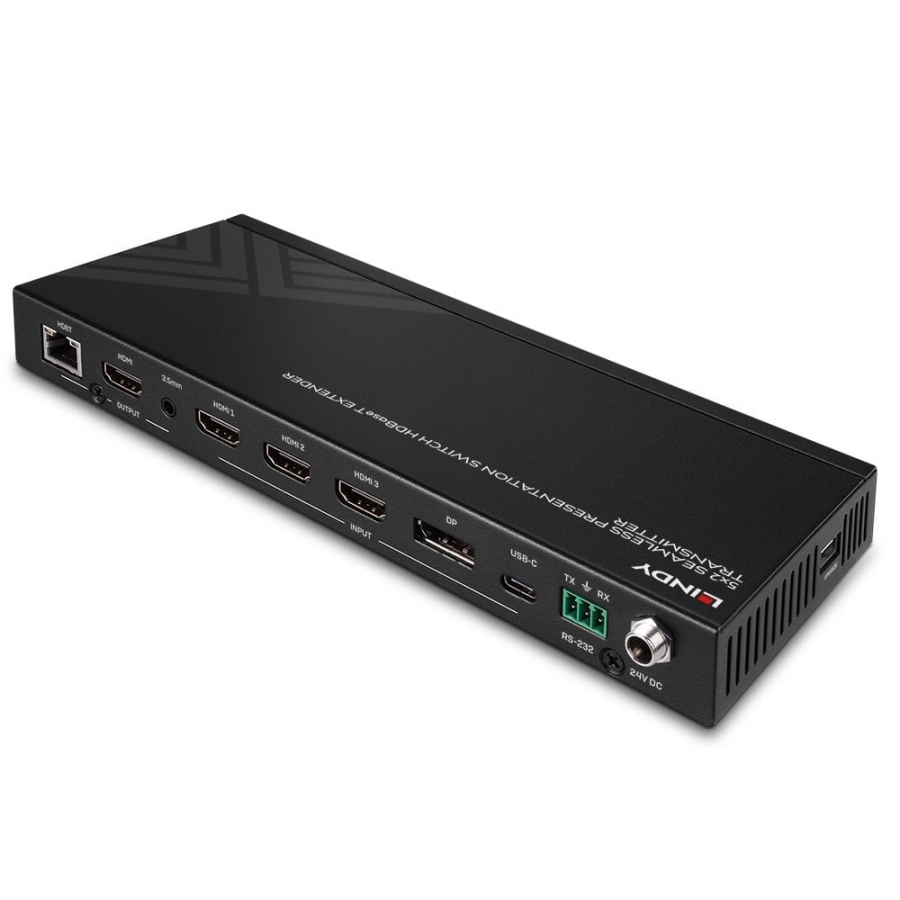

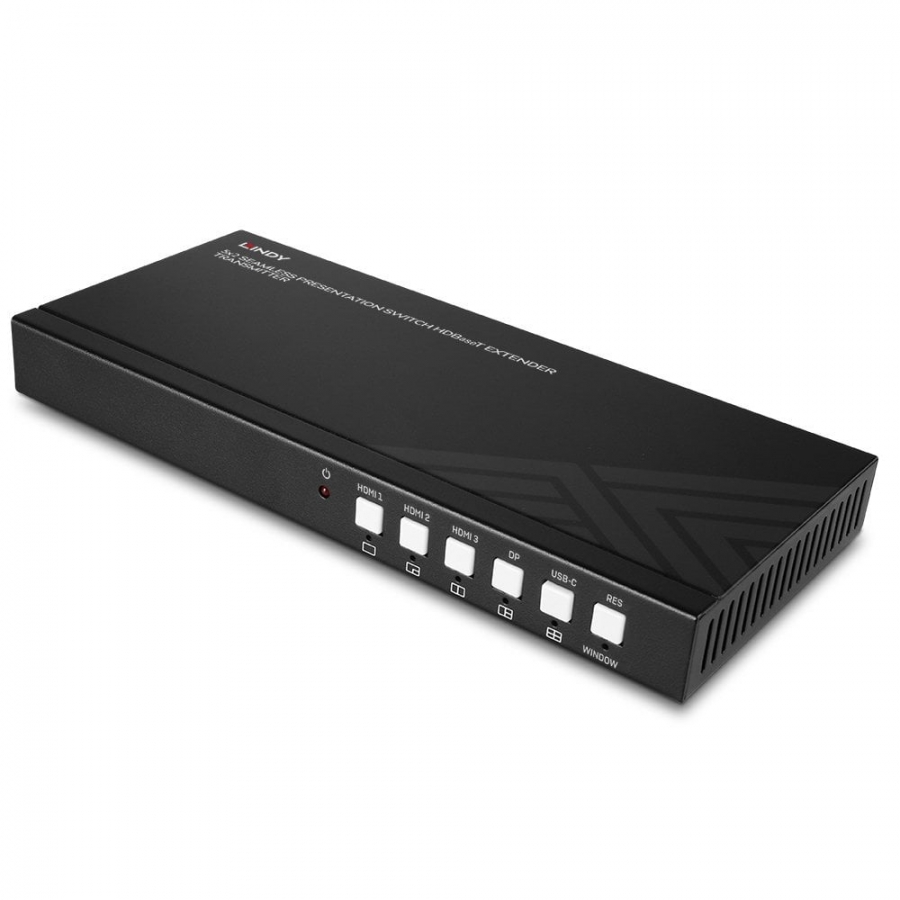

The 5 Port Seamless Presentation Switch HDBaseT Transmitter is one part of a high performance, reliable solution for extending AV signals over long distances via Cat.6 network cable.By combining this transmitter unit with the Lindy HDBaseT receiver n. 38214, the following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable: 70m: 1920x1080@60Hz 4:4:4 8bit 40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bitIt can be connected to other HDBaseT receiver supporting up to 4K30 resolutions.This unit provides 3 HDMI, 1 DP and 1 Type C inputs with 1 HDBaseT and 1 HDMI local outputs; sources can be switched seamlessly pushing the buttons on the front panel, long press can activate different multiview options. This and many more functions such as auto-switch mode, select resolutions, EDID, PIP size, etc. can be managed via RS-232 commands.2 outputs are mirrored while 3.5mm stereo audio output can be used for connecting speakers or headphones to get de-embedded audio.PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and a receiver with the same feature, meaning only a single power supply is required.This transmitter provides a full range of solutions and AV interfaces to connect different kind of devices, ideal for presentations, trade shows and conference rooms. Type C sources must support Alternate Mode.HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

TypeAV transmitter
Maximum resolution3840 x 2160 pixels
Cable types supportedCat6
Maximum transfer distance70 m
ChipsetMST9804
Bandwidth18 Gbit/s
HDCPY
MaterialMetal
HDCP & EDID bypassY
HDCP version2.2
Product colourBlack
HDBaseT certifiedY
CertificationCE, UKCA, FCC, RoHS, REACH & California Proposition 65
Connectivity technologyWired
RJ-45 output ports1
HDMI in3
Number of HDMI outputs1
DisplayPorts in1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
3.5 mm (1/8-inch) outY
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 50%
Width225 mm
Depth100 mm
Height25 mm
Weight590 g
Quantity per pack1 pc(s)
Package width273 mm
Package depth138 mm
Package height75 mm
Package weight1.02 kg

Converters / Transceivers / Repeaters
