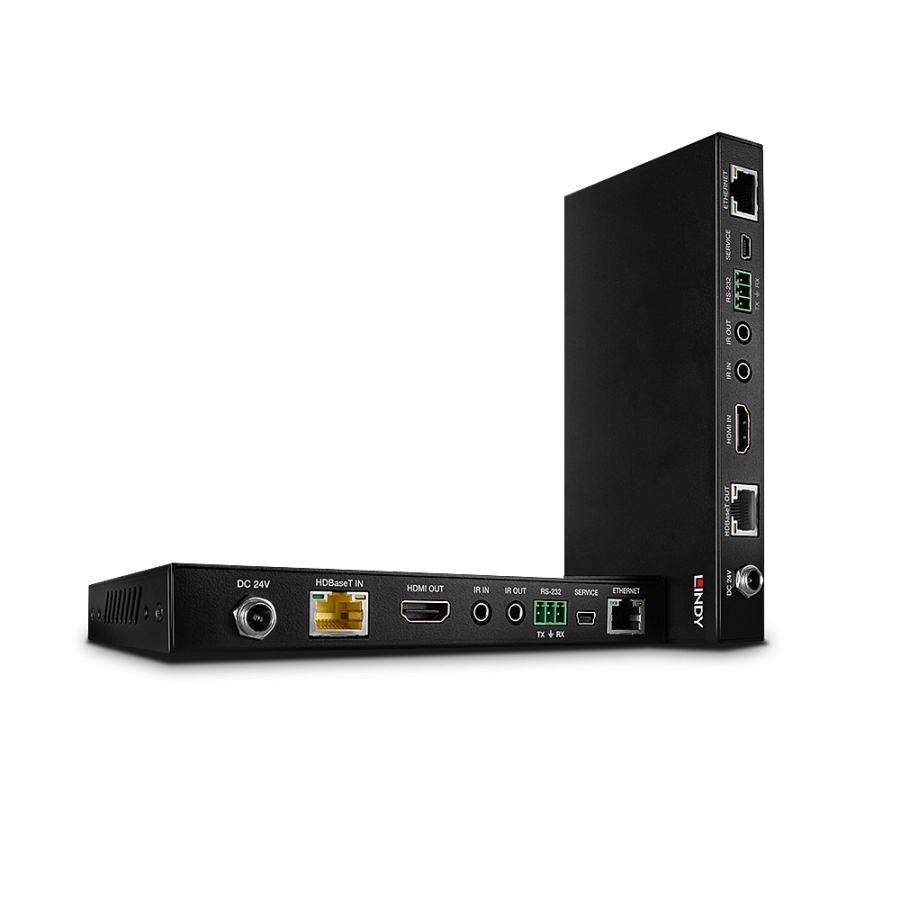

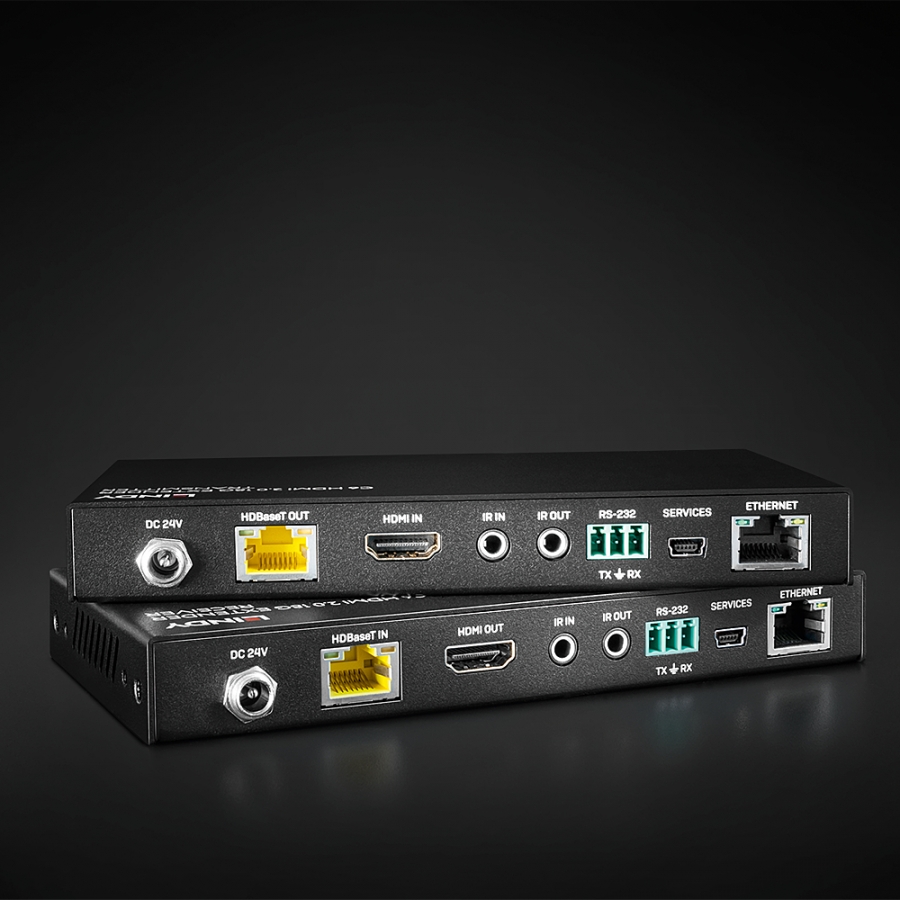

LINDY Extender HDMI 2.0 18G & IR Cat6 UHD 4K60Hz RS232 100m

Lindy

38219

New

Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR RS-232, CEC & Ethernet pass-through and bi-directional IR for simple control Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation 2 year warrantyThe Lindy 100m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Extender with PoC, Transmitter is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:100m: 1920x1080@60Hz 4:4:4 8bit70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bitSupporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat6
Maximum transfer distance100 m
Electrostatic Discharge (ESD) protection8 kV
LED indicatorsY
Supported video modes1080p, 2160p
Bandwidth18 Gbit/s
HDCPY
MaterialMetal
Colour depth16 bit
3DY
HDCP & EDID bypassY
Consumer Electronics Control (CEC) supportY
Product colourBlack
CertificationREACH, FCC, CE
Connectivity technologyWired
Ethernet LANY
RJ-45 input ports1
RJ-45 output ports1
HDBaseT portY
HDMI in2
Number of HDMI outputs1
HDMI version2.0
Video in1
Video out1
Serial ports quantity1
Serial interface typeRS-232
Remote (IR) input2
Remote (IR) output2
DC-in jackY
Operating voltage (transmitter)24 V
Output current1 A
Operating voltage (receiver)24 V
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Width157 mm
Depth90 mm
Height20 mm
Receiver dimensions (WxDxH)157 x 90 x 20 mm
Receiver weight333 g
Transmitter dimensions (WxDxH)157 x 90 x 20 mm
Transmitter weight333 g
Package width330 mm
Package depth243 mm
Package height72 mm
Package weight1.45 kg
AC adapter includedY
Cables includedIR
ManualY
Mounting brackets includedY
Sustainability certificatesRoHS
