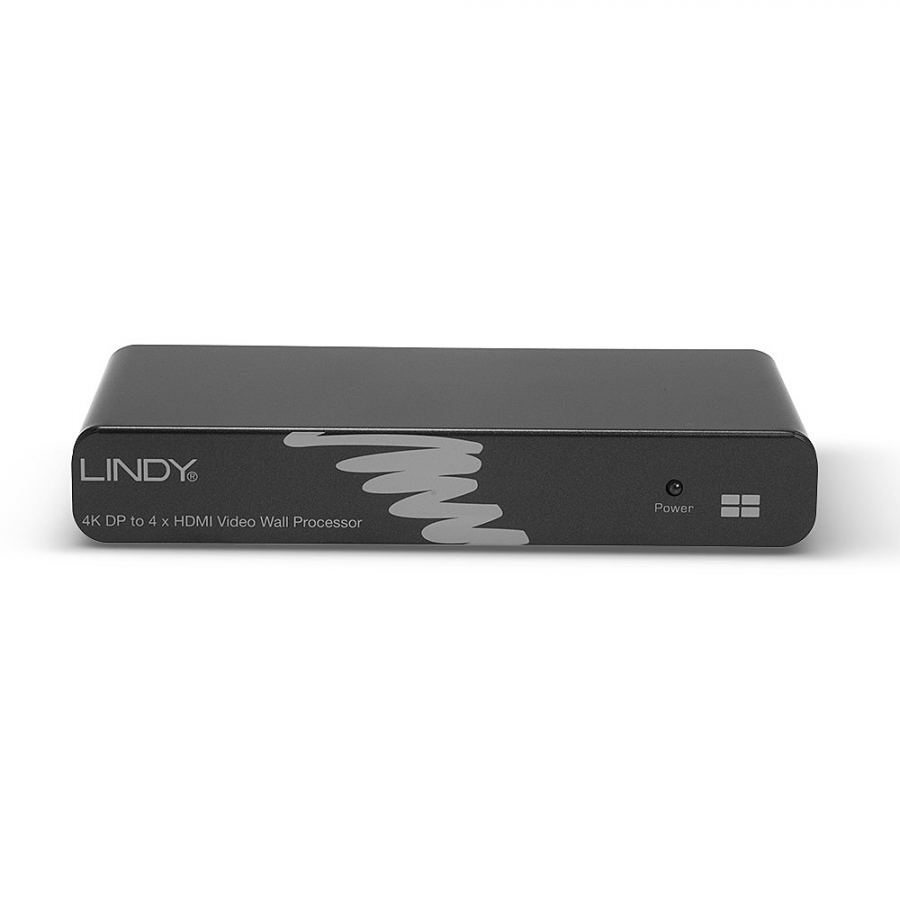

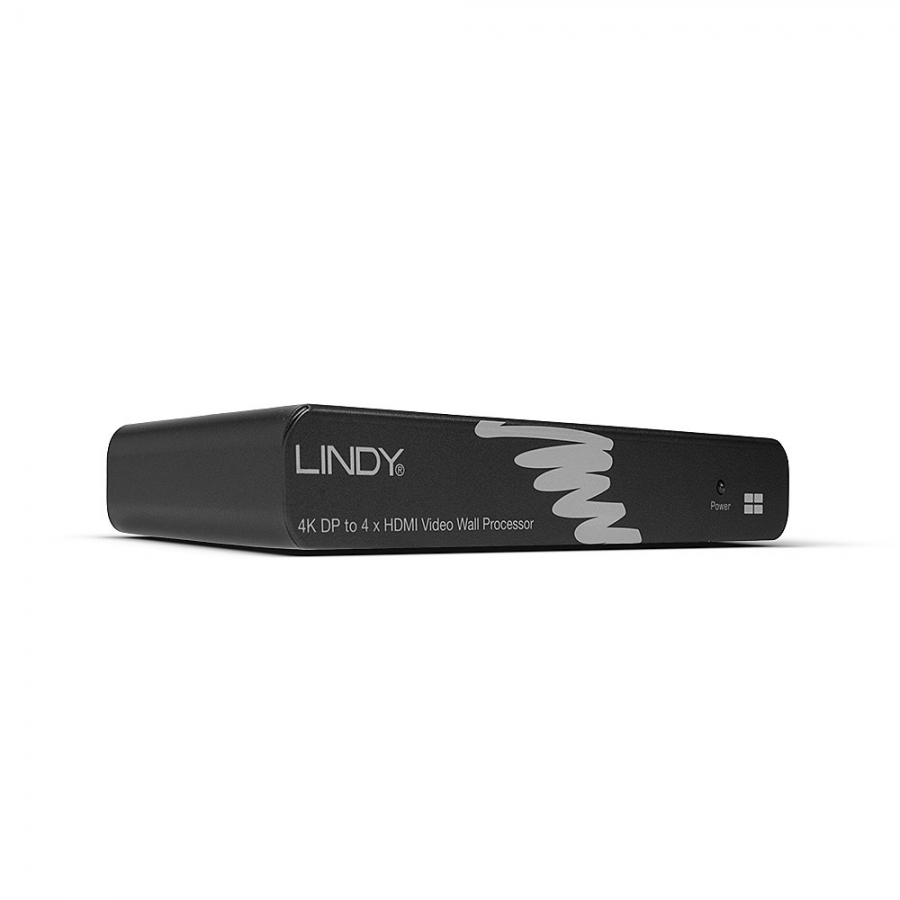

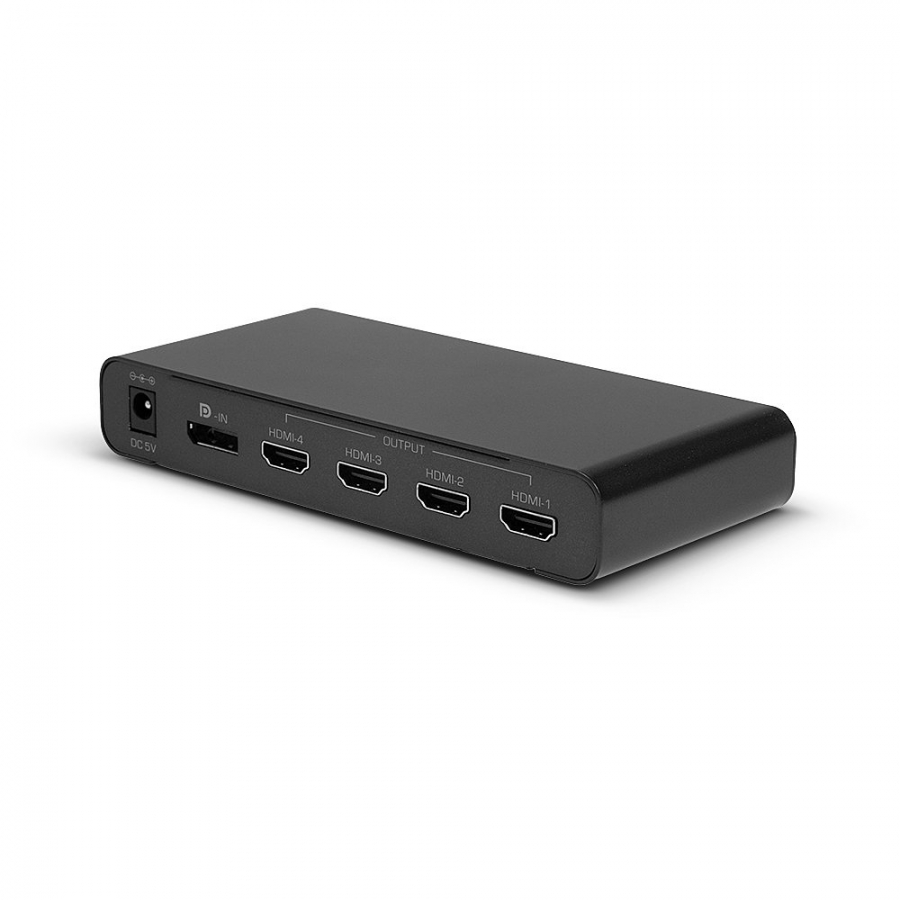

LINDY Videowand Konverter DisplayPort 1.2 an 4xHDMI 2x2

Lindy

38418

New

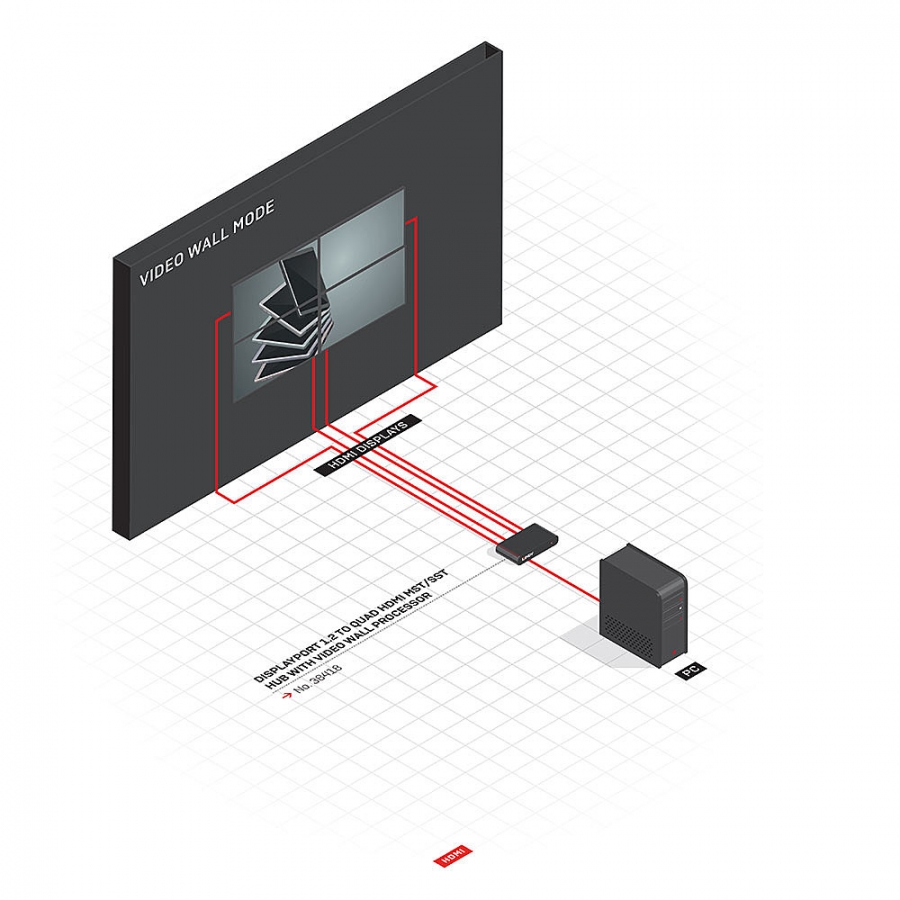

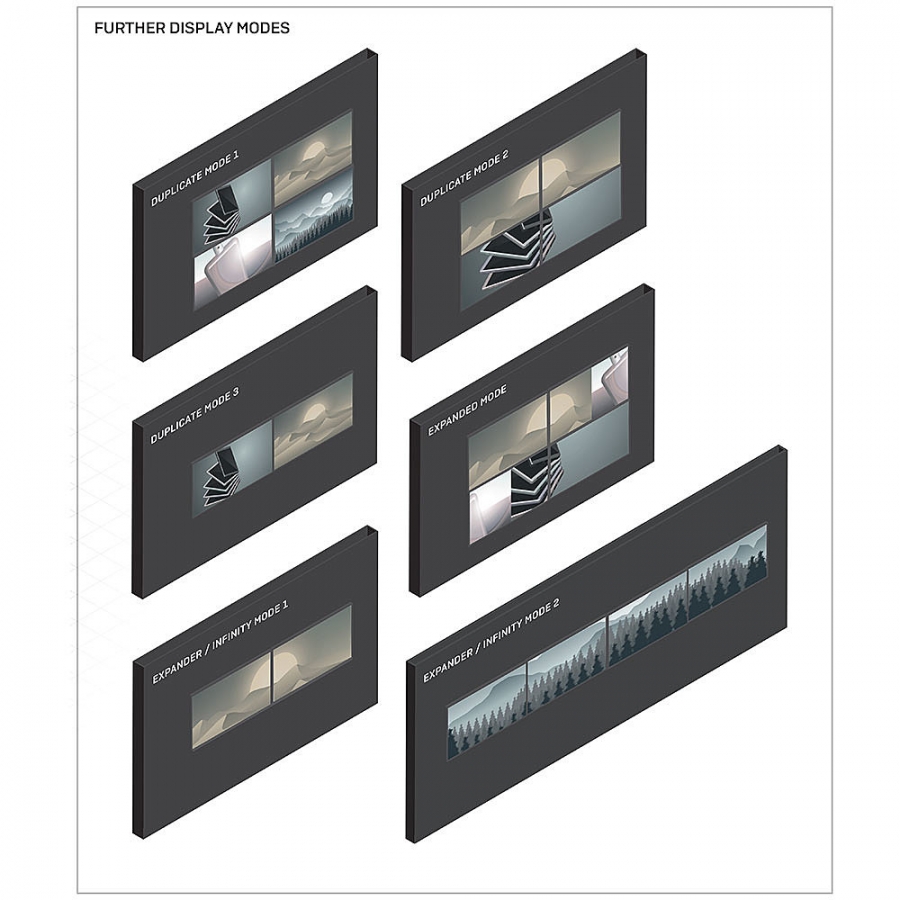

Creates a 2x2 4K Ultra HD video wall from a single DisplayPort 1.2 source High performance DisplayPort 1.2 MST and SST Hub, with Video Wall, Duplicate, Extended & Expander View / Eyefinity functionality Supports DisplayPort & HDMI resolutions up to 4K@60Hz 4:4:4 Supports DisplayPort MST and SST modes 2 year warrantyDisplayPort MST Hubs allow for the connection of multiple displays to a single DP source, to create larger workstation setups or larger scale DP distribution.The Lindy DisplayPort to Quad HDMI MST/SST Hub with Video Wall Processor is a high-performance DP 1.2 MST and SST hub, with Video Wall, Duplicate, Extended and Expander View / Eyefinity functions.To create a wide variety of display solutions, this processor groups the displays connected to port 1 and 2 together to create 1 single output, and then also apply this to the displays connected to 3 and 4.This allows for the use of 4 different modes as detailed below. Maximum supported resolution can depend on the windows configuration, graphics card and connected display.Video Wall Mode:· Supports resolutions up to 3840x2160@60Hz using 4 displays connected together to create a single display, visualised as a 2x2 video wall.· This is a great solution for digital signage in retail, transport hubs or trade shows.For the system requirements and set-up instructions of certain graphics cards, please refer to the Lindy manual under the Downloads section of this page.Duplicate Mode:· Supports resolutions up to 1920x1080@60Hz per display, using up to 4 displays. This works similar to a standard DisplayPort splitter with SST functionality, duplicating the input signal onto each individual display. The processor can also split the signal across 2 individual 4K displays, with resolutions up to 3840x2160@60Hz.· Using the grouped layout, resolutions up to 3840x1080@60Hz can be supported, duplicating the signal across the 2 separate groups (1+2) and (3+4).These modes are great for use in security, surveillance and control installations.Extended Mode:· This mode supports resolutions up to 3840x1080@60Hz per display by using the grouped layout of displays 1+2 and 3+4. Content can be then shared across the 2 layouts simply by dragging the mouse across the displays.This is useful for creating a large-scale office setup, or in graphic designs installations where users want to easily transfer content to another display or user.Expander / Eyefinity Mode:· This mode allows for the connection of 4 displays to create a multi-display workstation, viewed as a single display with resolutions up to 7680x1080@60Hz, with each display showing Full HD signals. Alternatively using 2 4K displays viewed as a single display, 7680x2160@30Hz can be viewed. This allows for the creation of a premium office or home workstation, or high-performance control set-ups in broadcasting and surveillance.Multiple MST/SST hubs can be used to create even larger display setups, providing this cna be supported by the display driver and graphics card.Please note: This active MST Hub requires the source or graphics card to support DP++ to provide dual-mode signalsPlease note: this MST hub does not support output to 3 displays.Please note: NVIDIA graphics cards require a display to be connected to the graphics card for control. Intel and AMD cards do not require this.

Product colourBlack
CertificationFCC
Maximum video resolution7680 x 2160 pixels
Supported video modes1080p, 2160p
Host interfaceDisplayPort
Output interfaceHDMI
Video in1
Video out4
External power adapterY
Operating voltage5 V
AC adapter includedY
ManualY
Quantity1
Supported resolutions3840x2160@60Hz 1920x1080@60Hz 7680x1080@60Hz
Compatible operating systemsWindows 7/8/8.1
Harmonized System (HS) code85176990
