LINDY Videowand Scaler HDMI Matrix 2x2 Switch HDMI 1.4

Lindy

38131

New

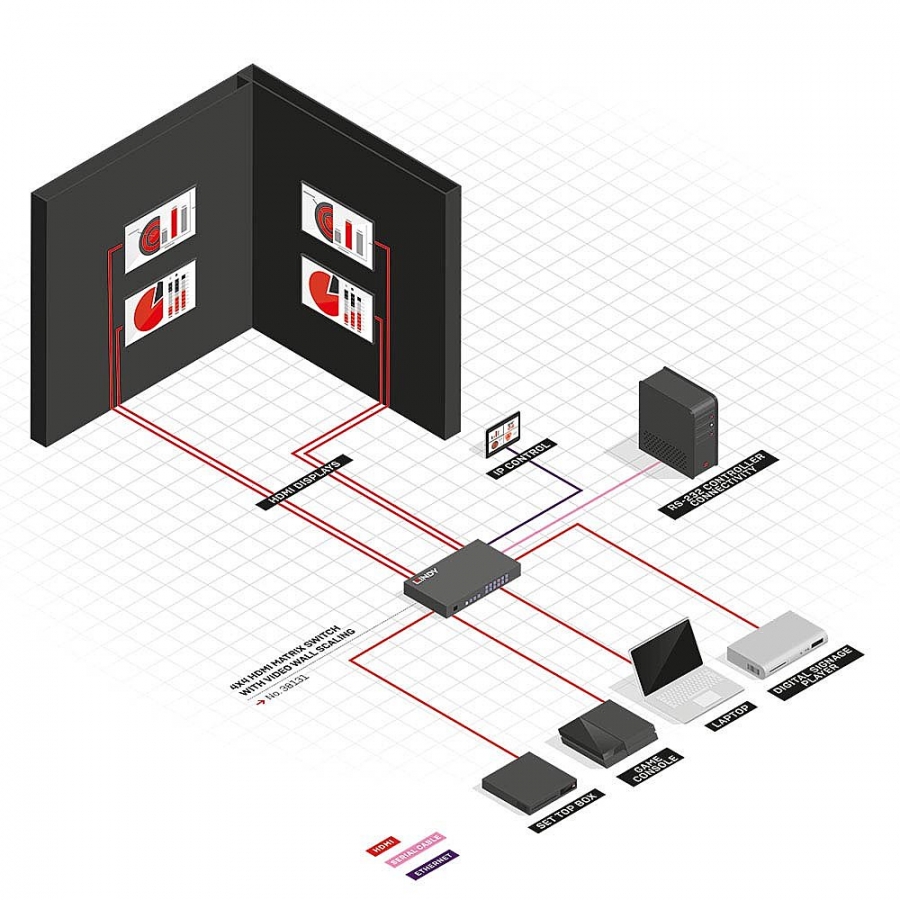

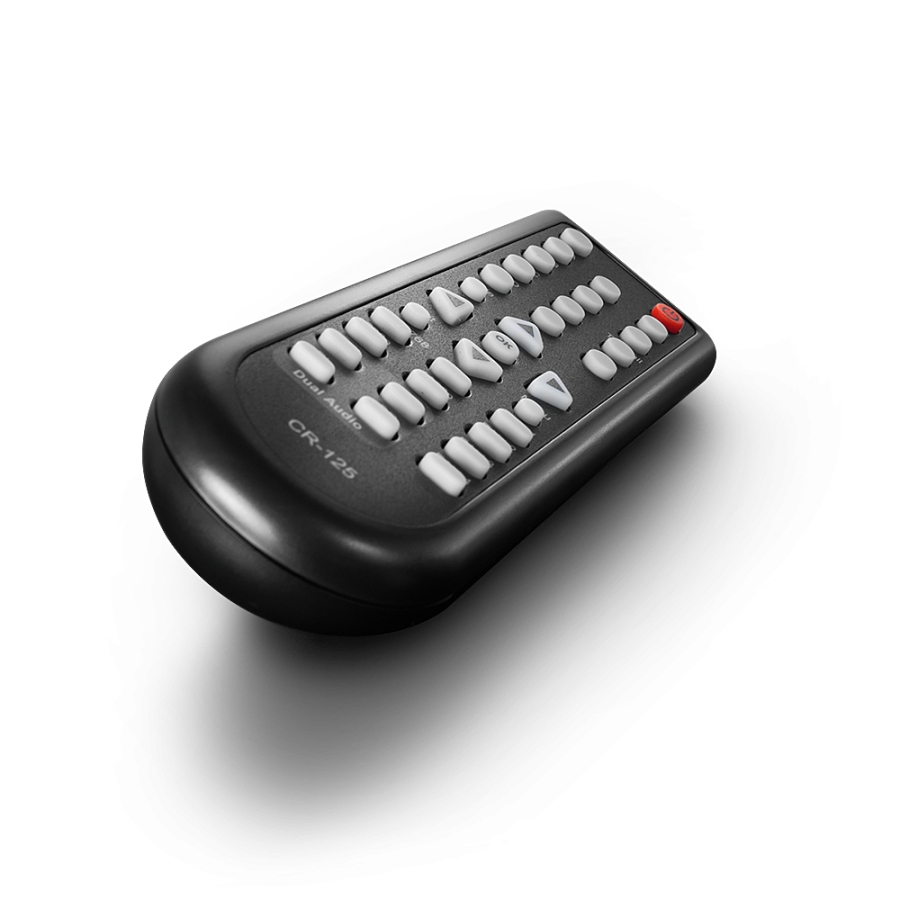

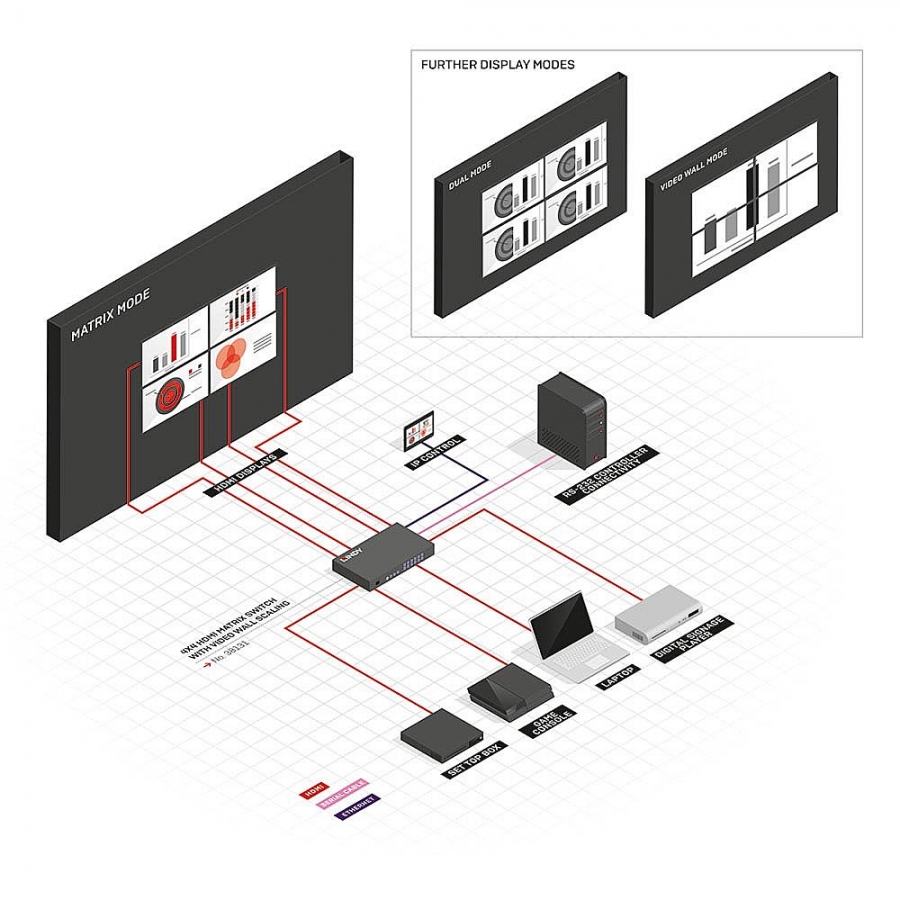

Allows 4 HDMI Inputs to be displayed in 3 different modes across 4 HD displays Video Wall Mode – Display an HDMI source across a 2x2 video wall Matrix Mode – Display any HDMI source on any HDMI display Dual Mode – Display 2 sources on a single HDMI displaySeamless switching between HDMI sources User definable output scaling Controlled via On-panel controls, IR Remote, RS-232 and Telnet Bezel correction to aide screen blending Adjustable picture contrast, brightness, saturation and hue Memory function to store 4 user determined configurations 2 Year WarrantyThe HDMI Video Wall 4x4 Matrix allows the signals from four different sources to be freely selected and arranged on 4 displays (TV, Monitor or Projector), in one of three output modes; Video Wall, Matrix and dual.This flexible feature rich product has been designed to be used in a number of different applications, such as:Public Advertisement Digital Presentation Broadcasting & Control Surveillance & Control Conference & Meeting RoomPackage Contents:HDMI Video Wall 4x4 MatrixIR Remote ControlMulti-Country 12V 3A Power Supply (UK/EU/US/AUS)Driver CDUser Manual

Video port typeHDMI
HDMI ports quantity8
HDMI in4
Number of HDMI outputs4
RJ-45 input ports1
RS-232 ports1
Video in4
Video out4
DC-in jackY
Product colourBlack
HDCPY
Supported graphics resolutions720 x 400, 1600 x 900, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 х 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Bandwidth6.75 Gbit/s
LED indicatorsY
Bandwidth225 MHz
External power adapterY
Remote control typeIR
AC adapter output voltage12 V
AC adapter output current3 A
Power consumption (typical)15 W
Width436 mm
Depth247 mm
Height44 mm
Weight2.95 kg
Remote control includedY
Harmonized System (HS) code85176990
