Delock Board Holder for DIN Rail 5 cm long

DELOCK

65989

New

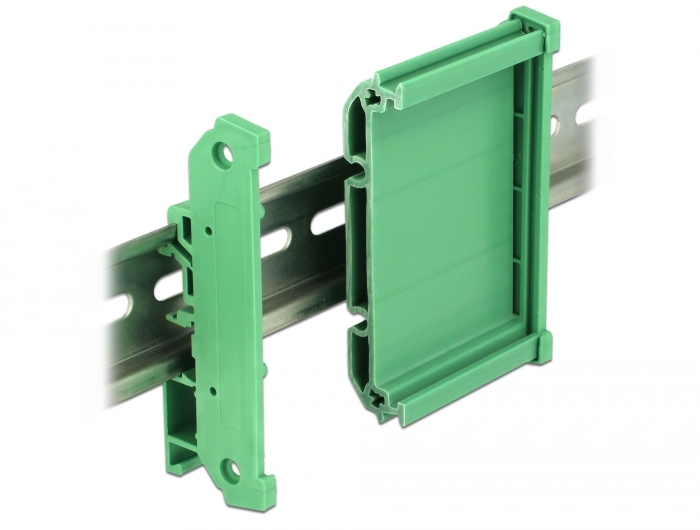

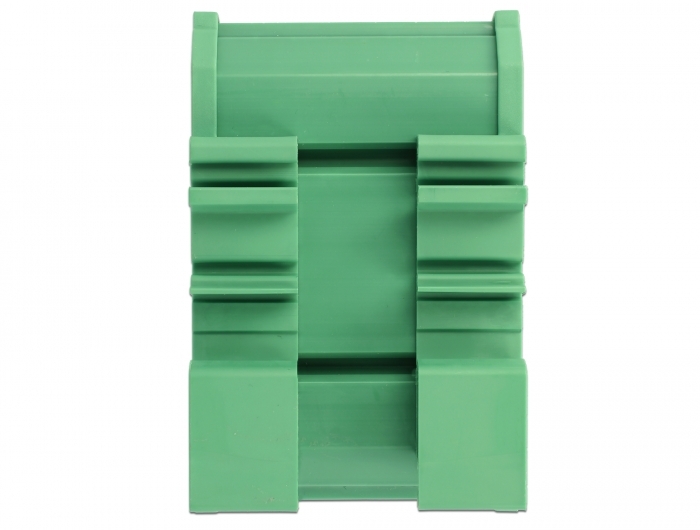

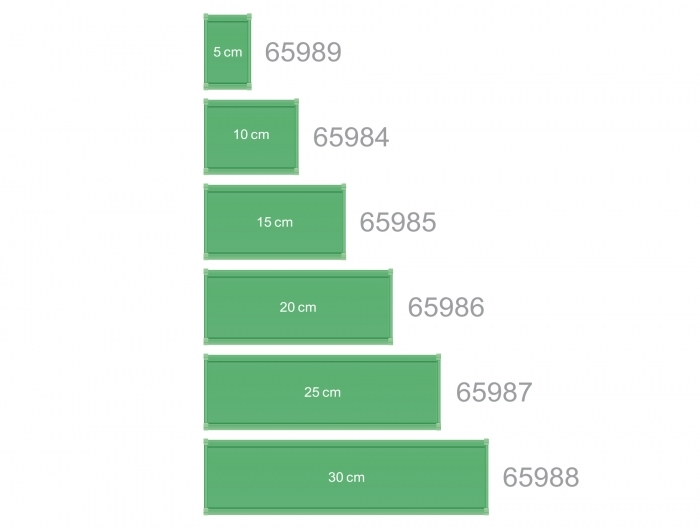

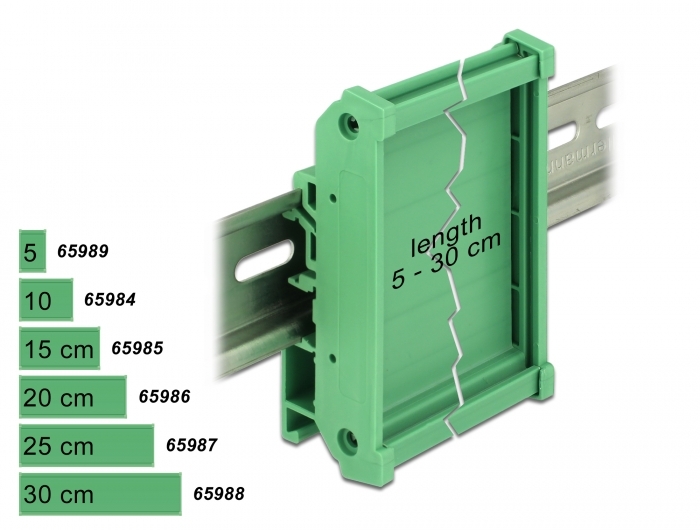

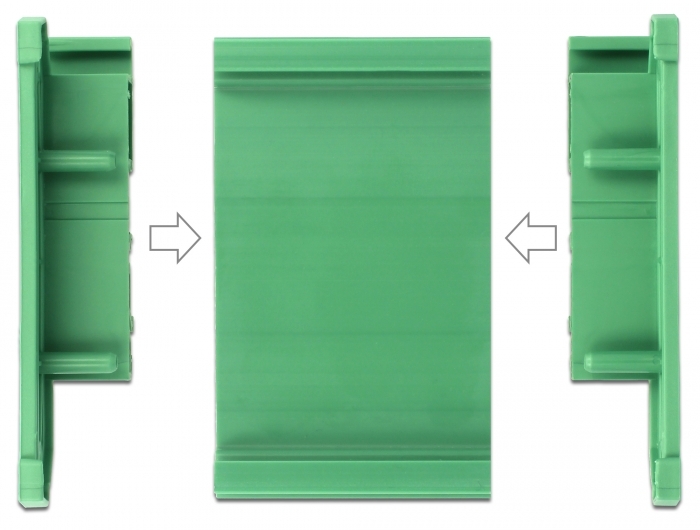

This board holder by Delock can be used to hold circuit boards with a width of 72 mm, to mount them on a 15 mm or 35 mm DIN rail. The board holder can be shortened individually in different lengths. After shortening, the two end caps can be put on again.
System requirements:
• 15 mm or 35 mm DIN rail
Specification:
• Suitable for boards with a width of 72 mm
• Environmental temperature: -10 °C ~ 70 °C
• DIN rail mounting: 15 mm and 35 mm
• 4 x mounting holes
• Mounting hole diameter: 3.5 mm
• Pitch of screw hole: ca. 70 mm
• Material: plastic
• Colour: green


Package content:
• 1 x board holder
• 4 x screw
• 2 x end cap
Data sheet:
http://www.delock.de/produkt/65989/pdf.html?sprache=en
