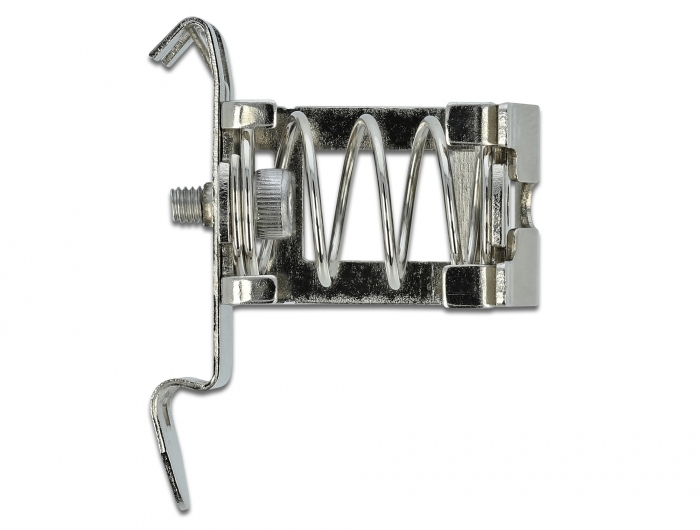

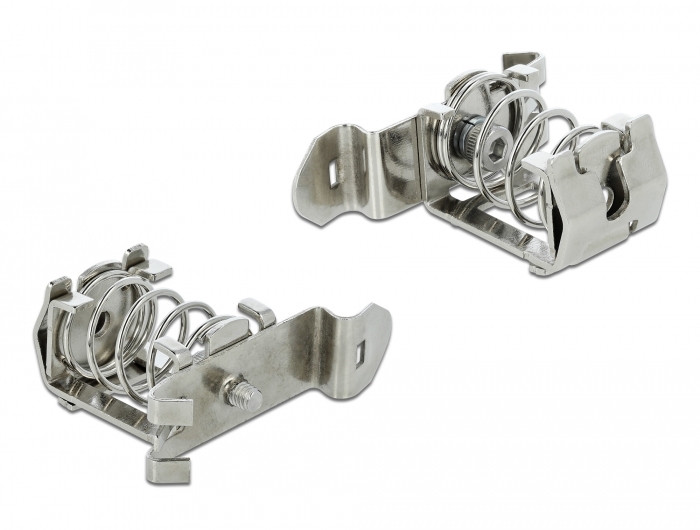

Delock Shield Clamp for DIN Rail - Cable diameter 4 - 13.5 mm

DELOCK

66441

New

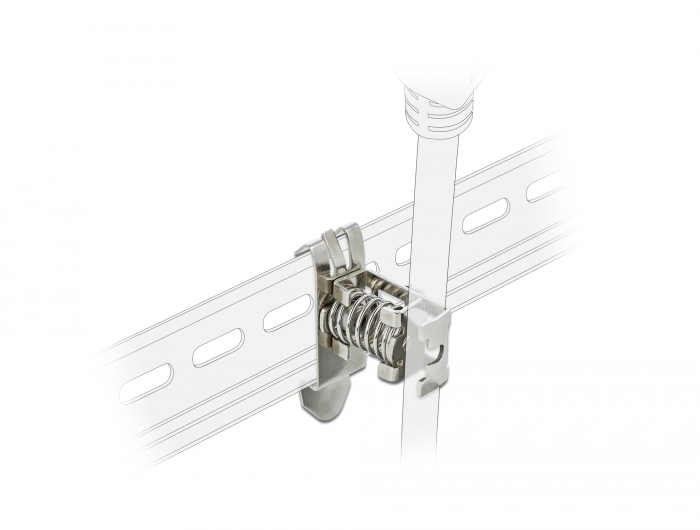

With this shield clamp by Delock a cable with a diameter of 4 - 13.5 can be attached to a 35 mm DIN rail. The clamp can also be used as an EMC shield. In this case, unwanted electrical or electromagnetic effects are dissipated from the DIN rail.

Application
To fasten a cable to the clamp, the spring must be pressed down with a tool, e.g. a screwdriver. If a cable is attached to the clamp, the best way to detach it is to press the spring down with the cable. The shield clamp can also be screwed to the DIN rail, for which an Allen key size HX3 is required.

System requirements:
• 35 mm DIN rail
Specification:
• DIN rail mounting: 35 mm
• Cable diameter:
  min.: 4 mm
  max.: 13.5 mm
• Material: metal
• Dimensions (LxWxH): ca. 31 x 20 x 20 mm
Package content:
• Shield clamp
Data sheet:
http://www.delock.de/produkt/66441/pdf.html?sprache=en
