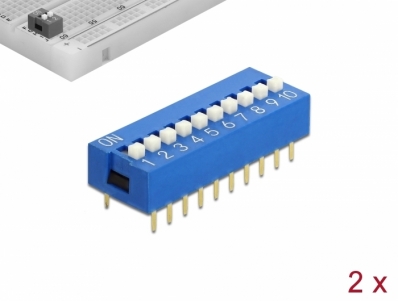

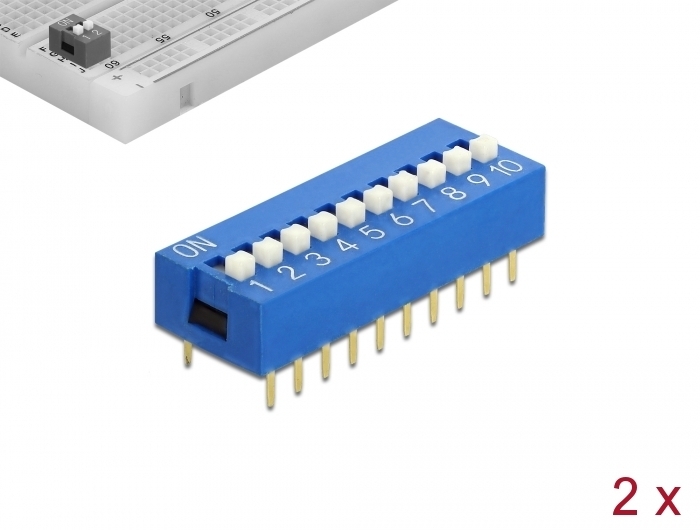

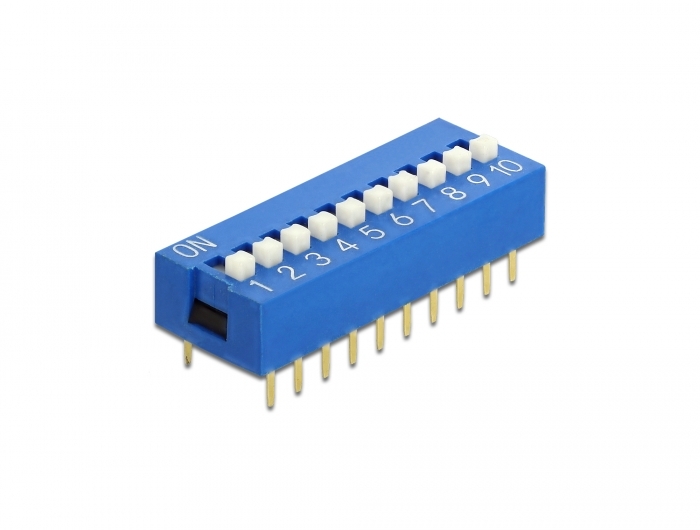

Delock DIP sliding switch 10-digit 2.54 mm pitch THT vertical blue 2 pieces

DELOCK

66101

New

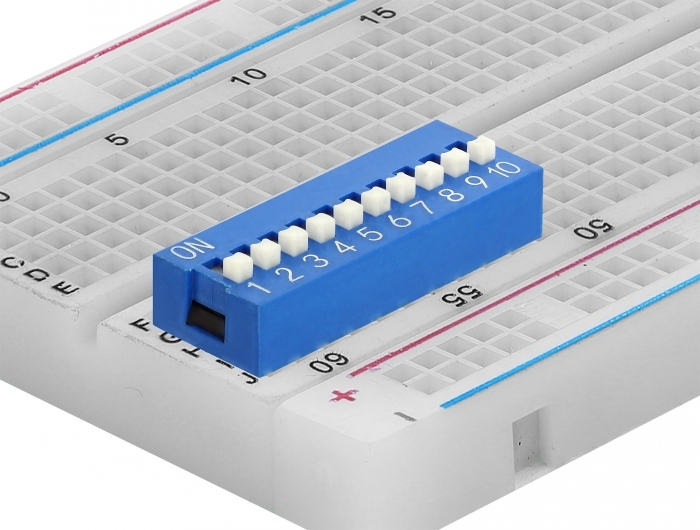

This DIP sliding switch by Delock is suitable for the through-hole mounting on a PCB.

THT Assembly Technology

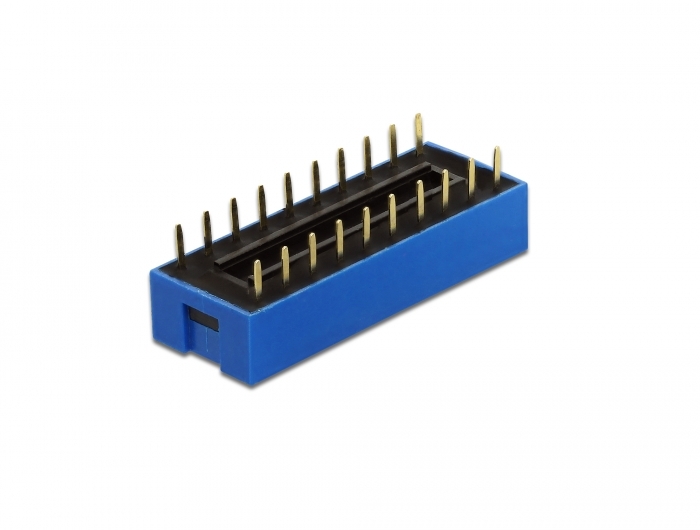

The attached soldering pins on the DIP switch can be inserted through contact holes on a PCB and soldered from the bottom side. The switching rows are used to set configurations and to change parameters.

Multifunctional application
The DIP switch is mainly used in telecommunications, computers and measuring.
Specification:
• Connectors:
  2 x 10 soldering pin
• Number of positions: 10
• Pitch: 2.54 mm
• Switch position: on / off
• Switching rating: 25 mA, 24 VDC
• Insulation resistance: 100 MΩ / 500 VDC
• Withstanding voltage: 300 VAC / 1 minute
• Soldering temperature: 250 °C for ca. 3 - 5 seconds
• Environmental temperature: -40 °C ~ 85 °C
• Operating temperature: -20 °C ~ 85 °C
• Material: plastic
• Colour: blue
• Dimensions (LxWxH): ca. 26.8 x 9.9 x 5.6 mm
Package content:
• 2 x DIP sliding switch
Data sheet:
http://www.delock.de/produkt/66101/pdf.html?sprache=en
