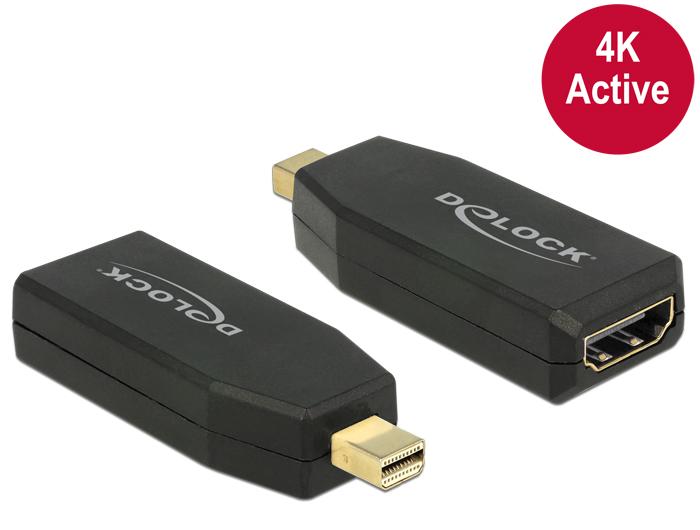

Delock Adapter mini Displayport 1.2 male HDMI female 4K Active black

DELOCK

65581

New

This adapter enables you to connect e.g. a HDMI monitor through a free mini Displayport interface. The adapter supports a resolution up to Ultra HD (4K) and is backward compatible to Full-HD 1080p. The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.

More details

Description:
This adapter enables you to connect e.g. a HDMI monitor through a free mini Displayport interface. The adapter supports a resolution up to Ultra HD (4K) and is backward compatible to Full-HD 1080p. The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.

Specification:
• Connector: mini Displayport 20 pin male > HDMI-A 19 pin female
• Chipset: Parade PS171
• Mini Displayport 1.2 and High Speed HDMI specification
• Active converter, for graphics cards with DP and DP++ output
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the monitor and your system)
• Supports 3D displays (1080p @ 120 Hz)
• Supports HDCP 1.3
• Supports Eyefinity
• Audio input formats: 8-channel LPCM, compressed audio (AC-3, DTS) and
HBR audio format up to 24 Bit audio sample size and 192 kHz sample rate
• Gold-plated connector
• Dimensions incl. connector (LxWxH): ca. 61 x 22 x 12 mm
• Colour: black
• OS independent, no driver installation necessary

System requirements:
• A free mini Displayport female port

Package content:
• Adapter mini Displayport to HDMI

Displayport
