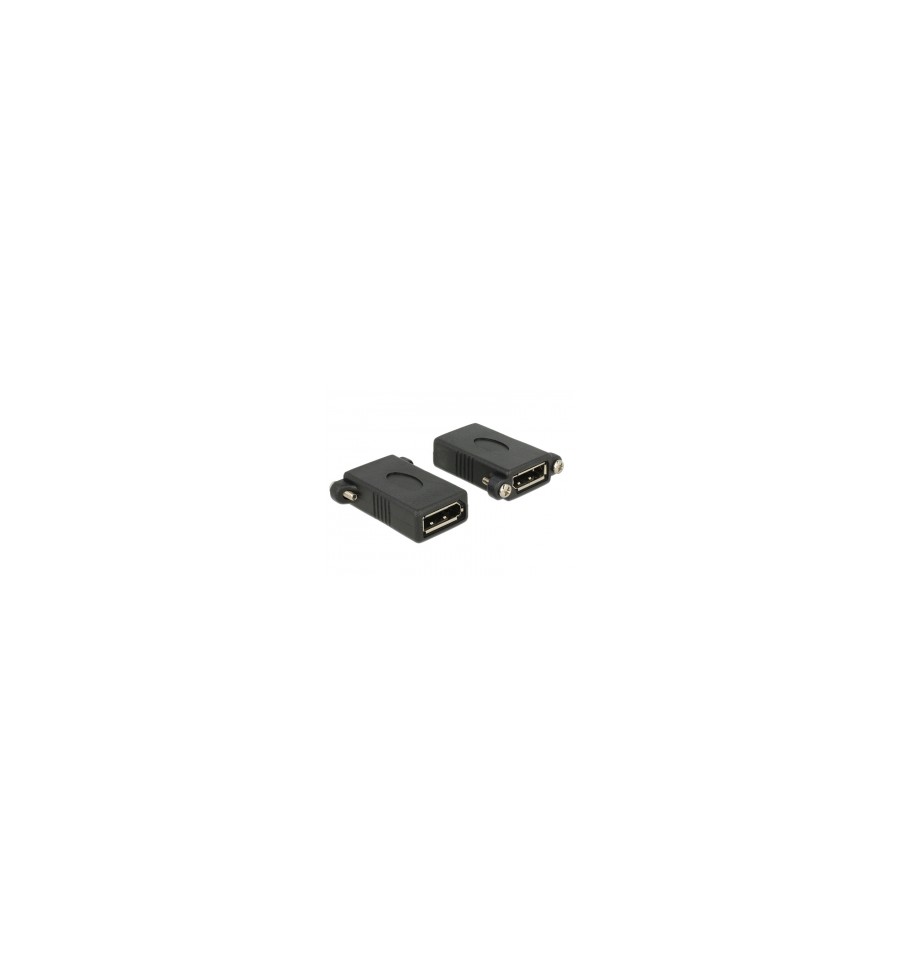

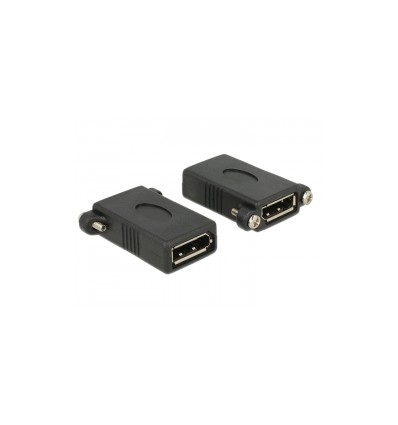

Delock Adapter Displayport 1.1 female - Displayport female panel-mount

DELOCK

85123

New

Description
This adapter enables you to extend a Displayport connection and can be used to connectvarious devicesThe female port can be attached with two screwse.g. to a slot bracketa cable duct or an enclosure with the corresponding openingThis can be used to install aDisplayport connector at an easily accessible position

More details

Description
This adapter enables you to extend a Displayport connection and can be used to connectvarious devicesThe female port can be attached with two screwse.g. to a slot bracketa cable duct or an enclosure with the corresponding openingThis can be used to install aDisplayport connector at an easily accessible position.

Specification
• Connector:
  Displayport 20 pin female >
  Displayport 20 pin female with screw nuts for installation
• Screw type: #4-40 UNC
• Mounting hole ca. 18 x 7 mm, screw hole pitch ca. 27 mm

• Displayport 1.1 specification
• Pin 20 is connected (supports 3.3 V)
• Supports a resolution up to 1920 x 1080 @ 60 Hz
  (depending on the system and the connected hardware)
• Gold-plated connector
• Colour: black
• Dimensions (LxWxH): ca. 42,2 x 35,3 x 13,3 mm

System requirements
• A free Displayport port

Package content
• Displayport adapter panel-mount
• 2 screws

Package
• Poly bag
