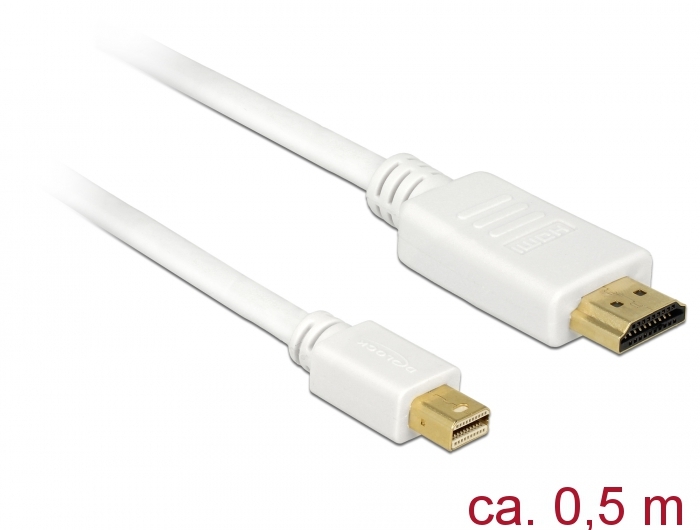

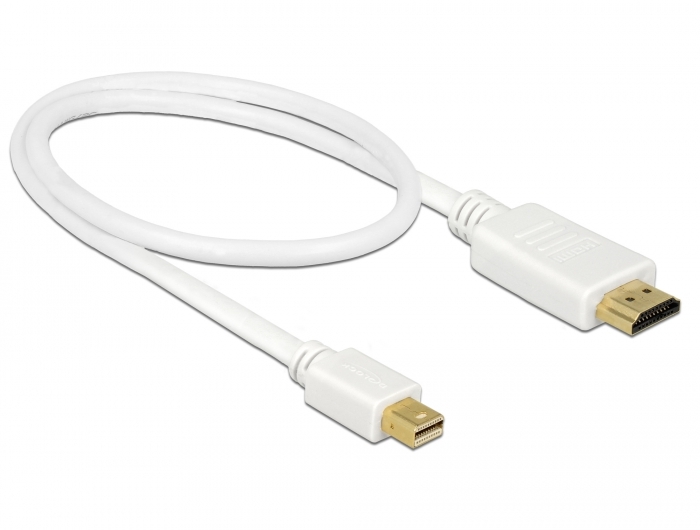

Delock Cable mini Displayport 1.1 male > HDMI-A male 0,5 m

DELOCK

83993

New

This cable by Delock can be used to connect a display with an HDMI port to a PC or a laptop with mini Displayport interface.
System requirements:
• One free mini Displayport DP++ female
Specification:
• Connectors:
  1 x mini Displayport 20 pin male >
  1 x High Speed HDMI-A 19 pin male
• Chipset: Parade PS8121E
• Displayport 1.1a and High Speed HDMI specification
• Passive cable (level shifter), suitable only for graphics cards with DP++ output
• Signal direction: mini Displayport input > HDMI output
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connectors
• Triple shielded cable
• Transfer of audio and video signals
• Data transfer rate up to 10.2 Gb/s
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected
  hardware)
• Colour: white
• Length incl. connectors: ca. 0.5 m
Package content:
• Mini Displayport to HDMI cable
Data sheet:
http://www.delock.de/produkt/83993/pdf.html?sprache=en
