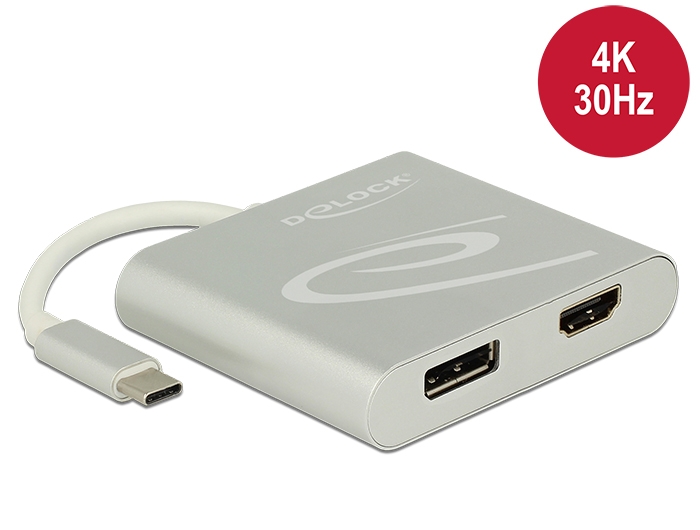

Delock USB Type-C™ Splitter (DP Alt Mode) to 1 x HDMI + 1 x Displayport out 4K 30 Hz

DELOCK

87716

New

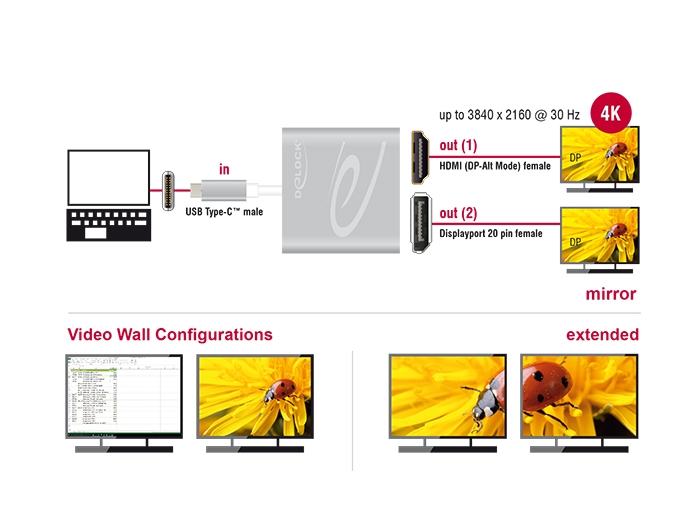

This splitter by Delock is suitable for the connection of a Displayport monitor and an HDMI monitor to a computer with USB-C™ interface and Displayport alternate mode support. Two monitors can be operated simultaneously at the outputs. The Displayport output is dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with a suitable adapter.
System requirements:
• Windows 8.1/8.1-64/10/10-64, Mac ex OS 10.9
• PC or laptop with a free USB Type-C™ port and Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Specification:
• Connectors:
  Input: 1 x USB Type-C™ male
  Output:
  1 x HDMI-A 19 pin female
  1 x Displayport 20 pin female
• Chipset: STDP4320
• Displayport 1.2 specification
• Resolution up to 2560 x 1440 @ 60 Hz / 3840 x 2160 @ 30 Hz (depending on the
  system and the connected hardware)
• Active converter, Single / Multi Stream Transport Hub (SST / MST)
• Functions: Mirrored or Extended (Windows only)
• Displayport output supports Dual Mode DP++
• Transmission of audio and video signals
• USB bus powered
• Metal housing
• Colour: silver
• Cable length incl. connectors: ca. 10 cm
• Dimensions (LxWxH): ca. 73 x 60 x 15 mm
Package content:
• USB-C™ Splitter (DP Alt Mode)
• User manual
Data sheet:
http://www.delock.de/produkt/87716/pdf.html?sprache=en
