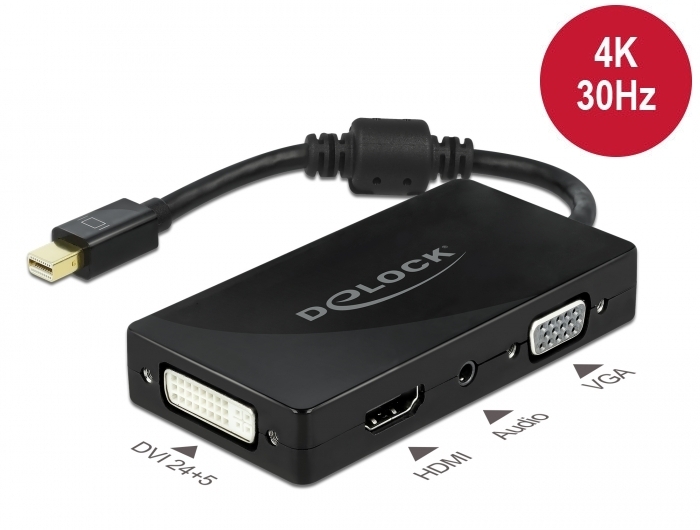

Delock Mini DisplayPort 1.2 Adapter to VGA / HDMI / DVI / Audio female 4K Passive black

DELOCK

62073

New

With this mini DisplayPort adapter by Delock, the system can be extended by a VGA, HDMI or DVI interface and various devices such as TV, projector, monitor etc. can be connected.

Dual video output
If only one monitor is connected to the HDMI output, a maximum resolution of 4K 30 Hz can be achieved.
It is possible to operate two monitors simultaneously, HDMI + VGA or DVI + VGA, with a maximum resolution of 1920 x 1080 @ 60 Hz per monitor. In addition, it is then possible to extend or mirror the desktop.
System requirements:
• Linux Kernel 4.15 or above
• Windows 8.1/8.1-64/10/10-64
• A free mini DisplayPort DP++ female
Specification:
• Connectors:
  1 x mini DisplayPort male >
  1 x VGA female
  1 x HDMI-A female
  1 x DVI 24+5 female
  1 x 3.5 mm 3 pin stereo jack female
  1 x USB 2.0 Type Micro-B female (optional for power supply)
• Chipset: Explore EP9632C
• DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
• DVI-D (Single Link), VGA not wired
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Audio signal is transmitted only over HDMI
• HDMI specification:
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected
  hardware)
• Supports 3D displays (1080p @ 60 Hz)
• VGA / DVI specification:
• Resolution up to 1920 x 1080 @ 60 Hz (depending on the system and the connected
  hardware)
• 1 x ferrite core
• Cable length without connectors: ca. 15 cm
• Colour: black
Package content:
• Adapter mini DisplayPort to VGA / HDMI / DVI
Data sheet:
http://www.delock.de/produkt/62073/pdf.html?sprache=en
