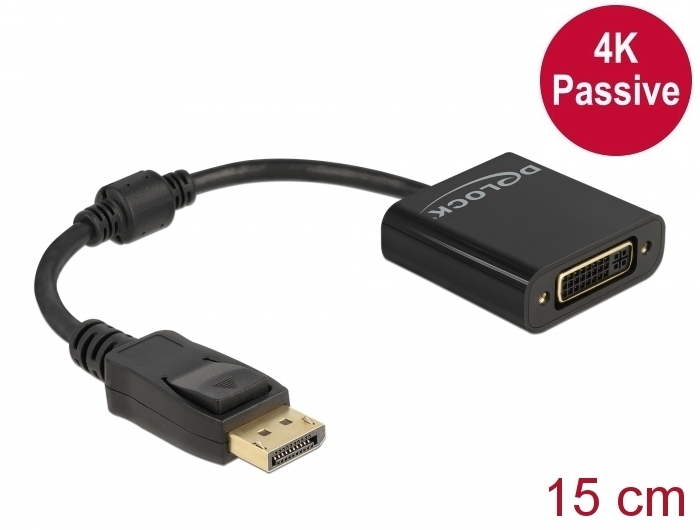

Delock Adapter DisplayPort 1.2 male to DVI female 4K Passive black

DELOCK

61023

New

This adapter by Delock enables the connection of an DVI monitor to the system via a free DisplayPort interface. The adapter supports a resolution up to 4K Ultra HD at 30 Hz and is backward compatible to Full-HD 1080p.
System requirements:
• A free DisplayPort DP++ female port
Specification:
• Connectors:
  1 x DisplayPort male >
  1 x DVI 24+5 female with nuts
• Chipset: Parade PS8402A
• DVI-D (Single Link), VGA not wired
• DisplayPort 1.2 specification
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Resolution:
  DVI up to 1920 x 1080 @ 60 Hz (depending on the system and the connected
  hardware)
  HDMI with the help of an adapter cable up to 3840 x 2160 @ 30 Hz
  (depending on the system and the connected hardware)
• Connectors: gold-plated
• 1 x ferrite core
• Cable length without connectors: ca. 15 cm
• Colour: black
• OS independent, no driver installation necessary
Package content:
• Adapter DisplayPort to DVI
Data sheet:
http://www.delock.de/produkt/61023/pdf.html?sprache=en
