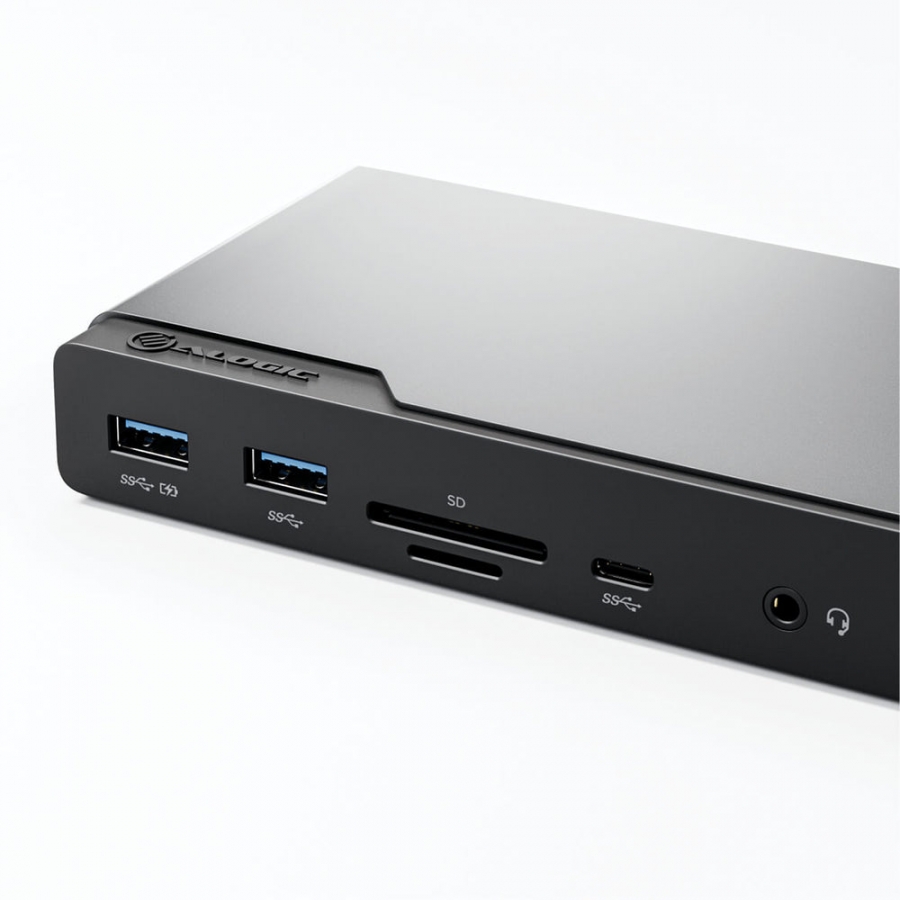

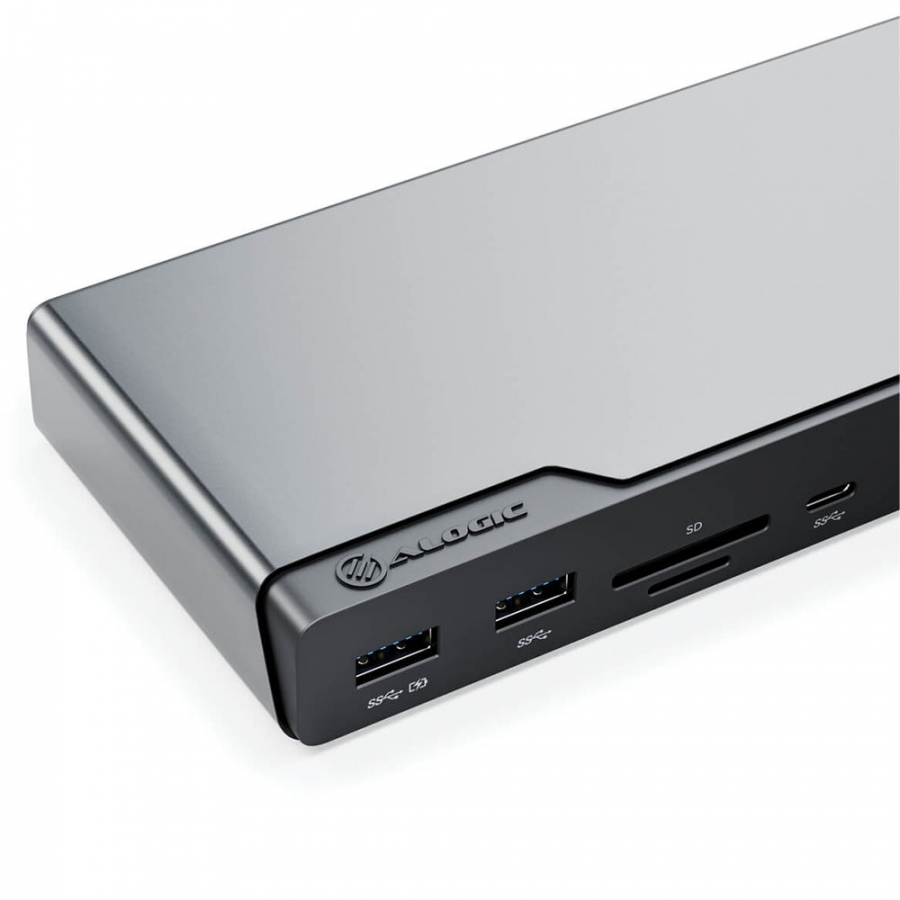

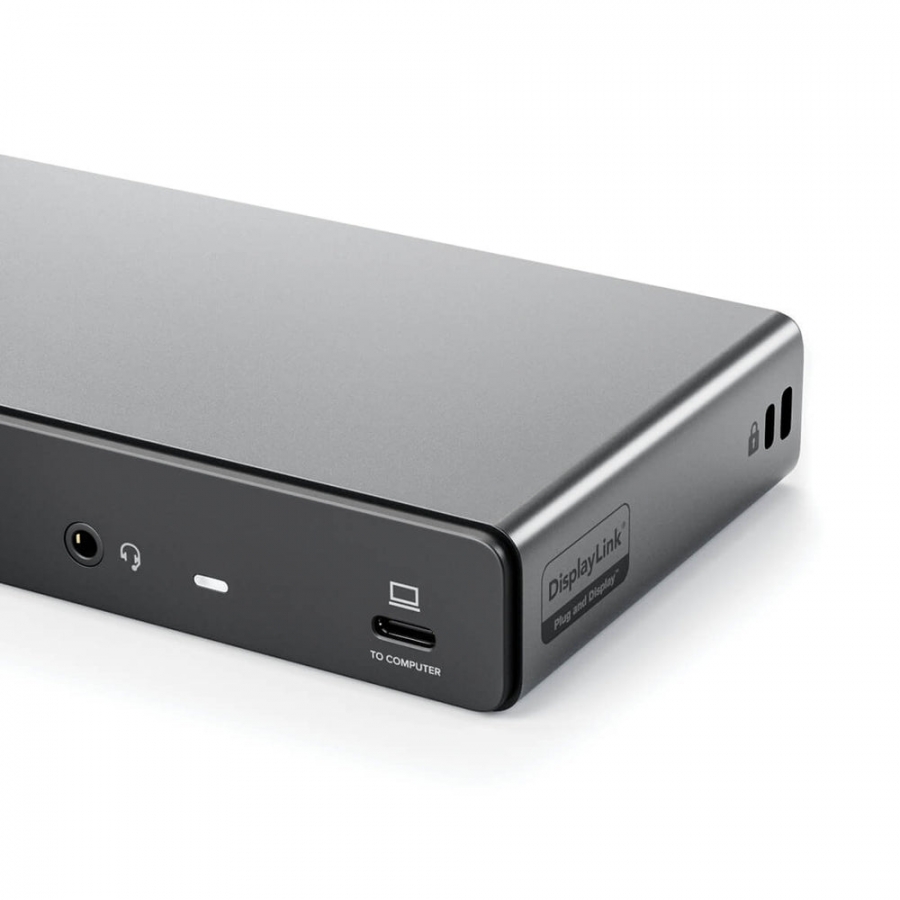

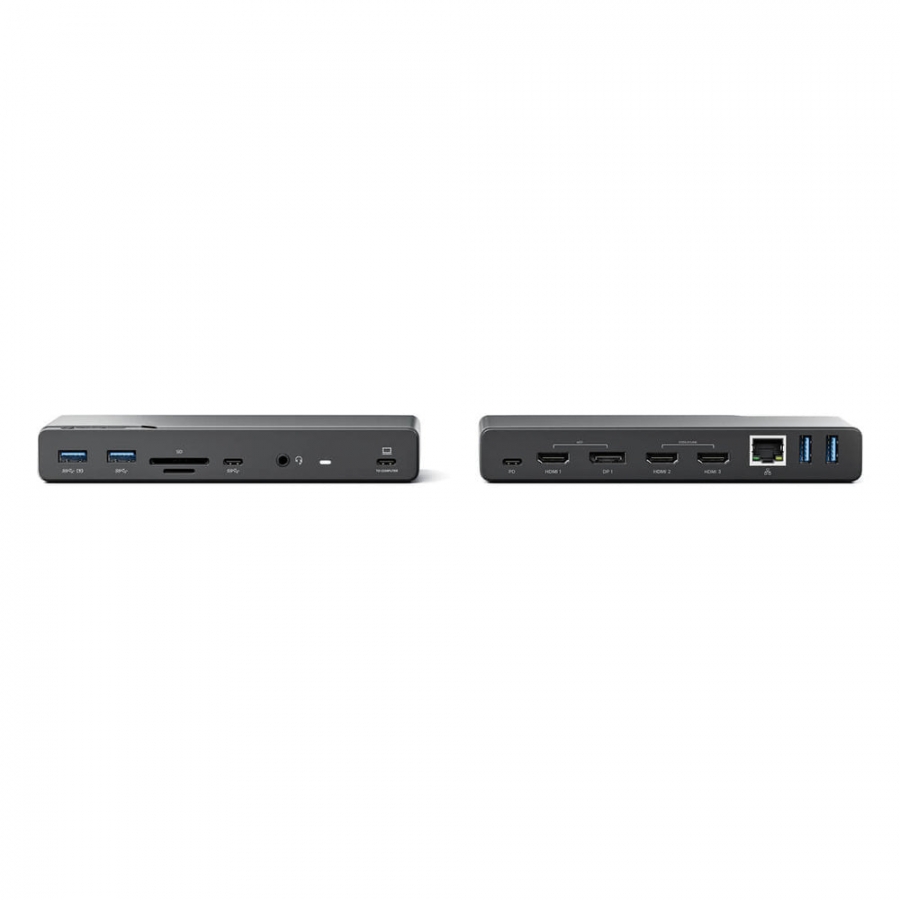

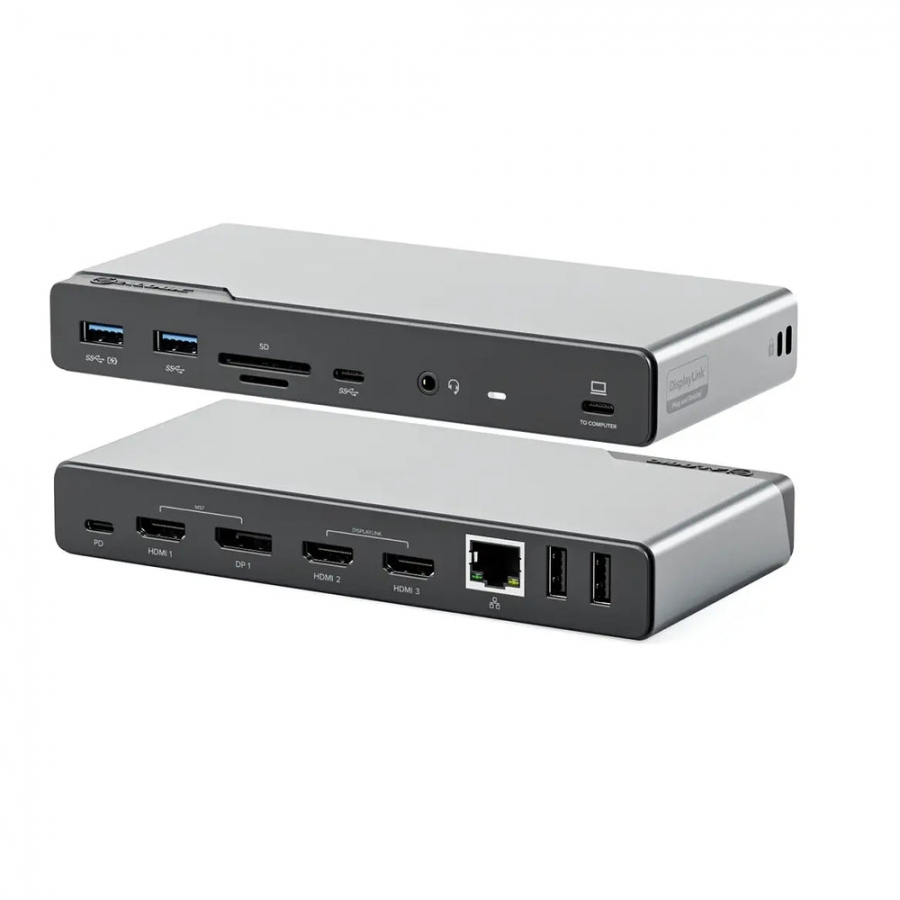

Alogic Dockingstation USB-C 16 in 1 Quad Display 85W PD

Reference DUCDV4

Condition: New

More info

Connect up to 4 Displays
When linked to a computer using USB-C the DV4 dock can connect up to four* external displays via the 3x HDMI and 1x DisplayPort outputs for the ultimate in workstation display capabilities. This dock will also work with older laptops without USB-C, connecting via USB-A and allowing up to two displays to be used.

Expand your laptop’s capabilities
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

Powerhouse Companion for your laptop

Connect up to 4 Displays
- Connect up to 4 extended displays with HDMI 2 + HDMI 3 + HDMI 1 + DisplayPort 1
- USB-C DP Alt Mode host required for HDMI 1 and DisplayPort 1 outputs.
- Connect to 2 extended displays with a USB-A host.

Connect up to 3 Displays
- Connect up to 3 extended displays with HDMI 2 + HDMI 3 + HDMI 1 OR DisplayPort 1
- HDMI 1 AND DisplayPort 1 in use will give mirrored displays
- USB-C host required for HDMI 1 and DisplayPort 1 outputs

Three Screens. Endless Possibilities.
See your work in whole new ways. Immerse yourself in the art you love. With your MacBook connected to one stunning 4K display and up to two 1080p screens, you’ll finally have space for everything you need to live your best digital life. Even with all those tabs.

Up to 85W Power Delivery
Equipped with a USB Power Delivery power input, the dock can charge laptops with up to 85W of power when a USB PD power adapter is connected (ALOGIC recommend the DCG1X100 100W Rapid Power Gan power adapter for use with this product - available separately).

Clutter-free desk
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

Truly Universal Plug And Play
With Plug and Display™ support for Windows, macOS and Chromebooks, as well as dual-screen support for legacy USB-A devices, it’s never been simpler to create the perfect workstation or hotdesking environment. Just plug in and you’re ready to go.Text

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	3
Headphone outputs	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery	Jā
USB Power Delivery up to	100 W
HDMI version	1.4b/2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Combo headphone/mic port	Jā
USB Type-C DisplayPort Alternate Mode	Jā
Ethernet LAN	Jā
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Product colour	Grey
Card reader integrated	Jā
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	4
Maximum refresh rate	60 Hz
Cable lock slot	Jā
LED indicators	Jā
Plug and Play	Jā
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium
Power source type	USB
USB cable length	0.8 m
Windows operating systems supported	Jā
Mac operating systems supported	Jā
Other operating systems supported	ChromeOS
Width	172 mm
Depth	82 mm
Height	27 mm
Weight	435 g
Cables included	USB Type-C
Quick start guide	Jā
