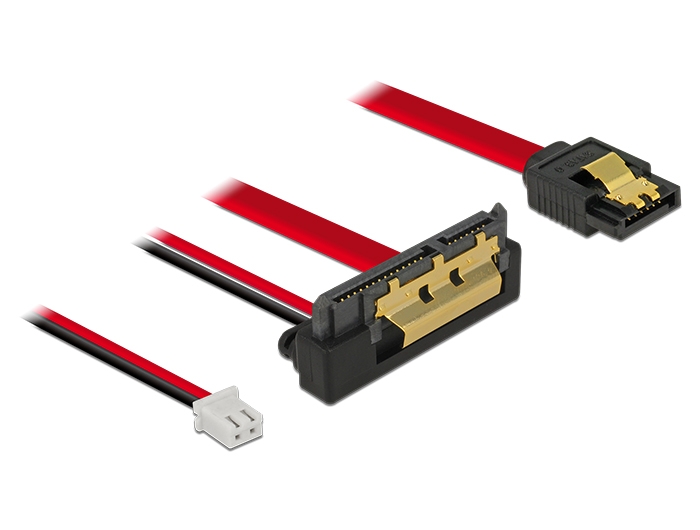

Delock Cable SATA 6 Gb/s 7 pin receptacle + 2 pin power female > SATA 22 pin receptacle downwards angled (5 V) metal 20 cm

DELOCK

85241

New

This cable by Delock enables the connection of a device with 22 pin SATA interface over a free SATA 7 pin port and a free 2 pin power interface of the motherboard, as available e.g. on the Banana Pi. The metal clips on the SATA receptacles ensure that the cable reliably clicks into place.
System requirements:
• A free SATA 7 pin interface
• One free 2 pin power plug
Specification:
• Connectors:
  1 x SATA 6 Gb/s 7 pin receptacle + 1 x 2 pin power female >
  1 x SATA 6 Gb/s 22 pin receptacle downwards angled
• Pitch: 2.50 mm
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Voltage: 5 V
• Cable gauge:
  26 AWG data line
  20 AWG power line
• Applicable e.g. with Banana Pi
• Length incl. connectors: ca. 20 cm
Package content:
• SATA cable
Data sheet:
http://www.delock.de/produkt/85241/pdf.html?sprache=en
