Delock Wall Socket with 2 x USB Type-A Charging Port 2.8 A

DELOCK

11473

New

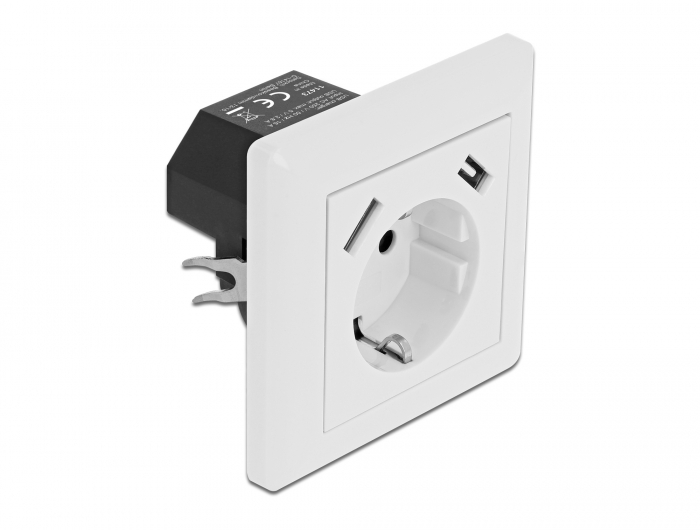

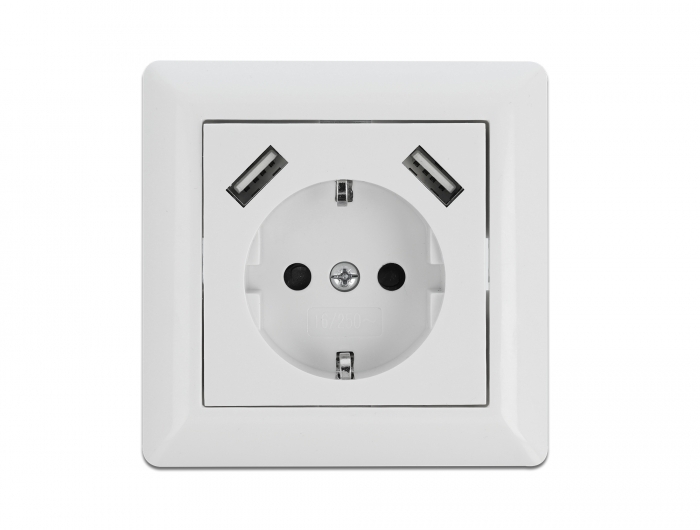

This power socket with a side grounding contact by Delock is for installation in a standard flush-mounted or cavity installation box. In addition to a CEE 7/3 socket with childproof lock, this power socket side grounding contact offers two USB Type-A charging ports. Thus, smartphones, tablets and similar devices can be charged while the socket is still available.

Suitable for many switch series
The socket is compatible to switch series with 55 x 55 mm frame window sizes. This includes the switch series of well-known manufacturers such as Gira, JUNG, Busch-Jaeger or Merten.
System requirements:
• Mains supply with grounding
• A free standard installation box
Specification:
• Connectors:
  1 x power socket CEE 7/3 with childproof lock
  2 x USB Type-A charging port max. 2.8 A

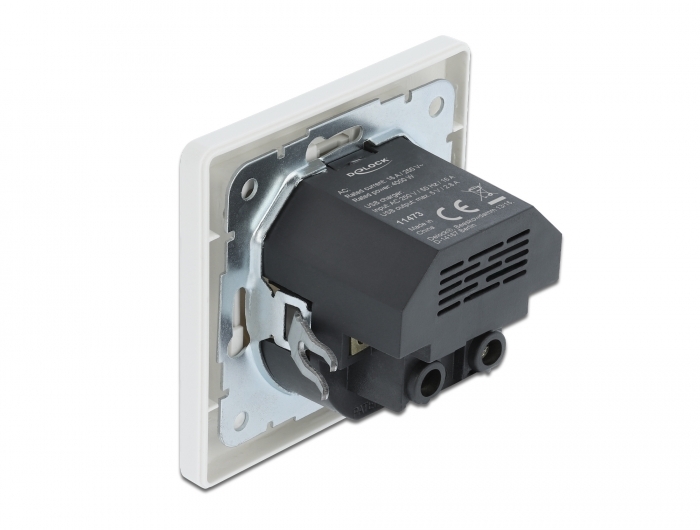

  3 x screw terminal for PE, N, L
• Rated current: 16 A / 250 V~
• Rated power: 4000 W
• USB Charger:
  Input: AC 250 V / 50 Hz / 0.2 A
  USB output: max. 5 V / 2.8 A total
  Short circuit protection
• Suitable for switch series with 55 x 55 mm frame window size
• Mounting depth: 40 mm
• Suitable for standard installation box
• Claw and screw fixing
• Fire retardant plastic housing (UL 94 V-0)
• Dimensions (LxWxH): ca. 80 x 80 x 52 mm
• Colour: white

Package content:
• Power socket
• User manual
Data sheet:
http://www.delock.de/produkt/11473/pdf.html?sprache=en
