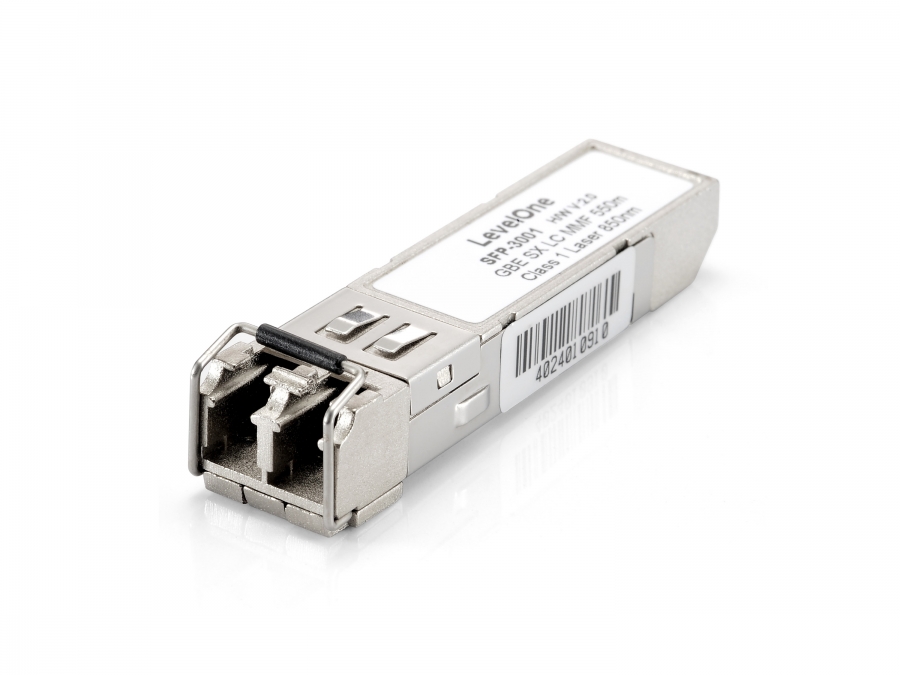

Level One LevelOne SFP Transceiver 1.25G Multi-mode Duplex LC 550m

LEVEL ONE

SFP-3001

New

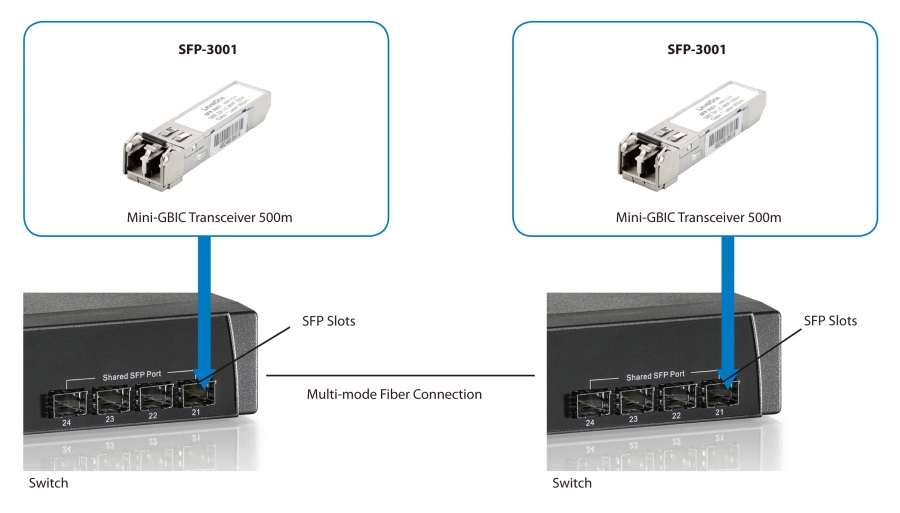

LevelOne SFP-3001 is a high performance and costeffective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 50 and 62.5 micron fiber cables, it can reach a distance of up to 550 meters.- 850nm VCSEL - Data Rate: 1.25Gbps - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement(MSA) - Duplex LC Connector - Compliance with specifications for IEEE 802.3z Gigabit Ethernet at 1.25Gbps - Compliance with ANSI specifications for Fiber Channel applications at 1.06bps - No configuration or installation software required - Eye Safety Designed to meet LASER Class 1 comply with EN60825-1

SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedN
Multi-mode fiber (MMF) supportedY

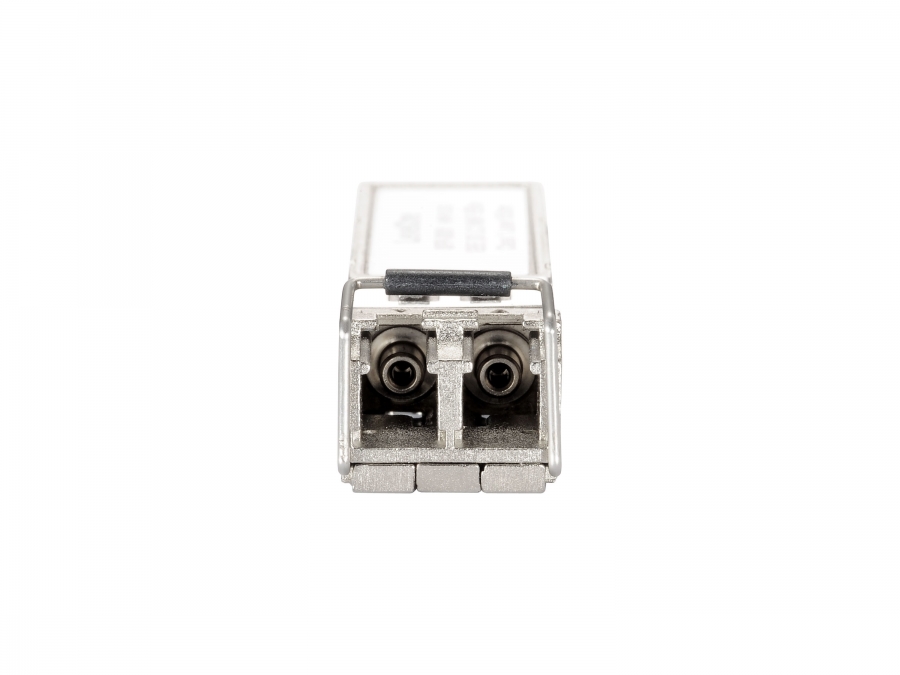

Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Maximum transfer distance550 m
Wavelength850 nm
Tx power (min)-9.5 dBmW
Tx power (max)-3 dBmW
Networking standardsIEEE 802.3z
Duplex systemFull
Fiber ports quantity1
Plug and PlayY
Hot-swapY
SafetyEN 60825-1
CertificationCE, FCC
Input voltage3.3 V
Maximum voltage6 V
Maximum current0.3 A
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width57 mm
Depth12 mm
Height13.7 mm
Weight20 g
Number of products included1 pc(s)
Package width106 mm
Package depth20 mm
Package height65 mm
Package weight35 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
