Level One LevelOne SFP Transceiver 1.25G Multi-Mode

Level One LevelOne SFP Transceiver 1.25G Multi-Mode

LEVEL ONE

SFP-4200

New

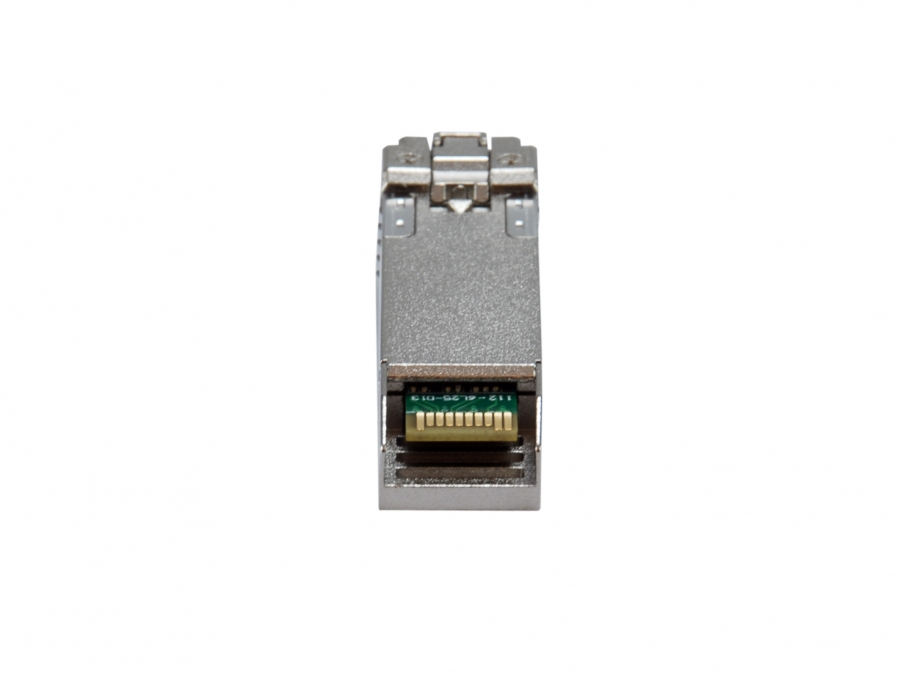

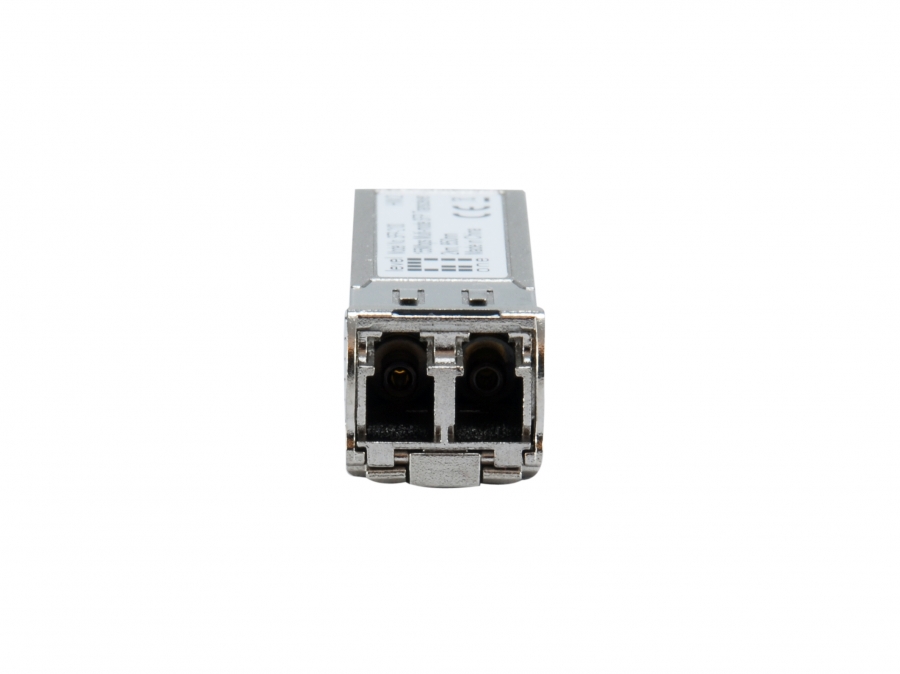

The levelOne SFP-4200 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 550 meters. The SFP-4200 transceiver operates using a wavelength of 850nm with a VCSEL Laser Diode light source and has an LC port. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.

SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supportedY
Fiber optic connectorLC
Maximum transfer distance550 m
Wavelength850 nm
Tx power (min)-10 dBmW
Tx power (max)4 dBmW
Networking standardsIEEE 802.3z
Duplex systemFull
Hot-swapY
CertificationCE, FCC
Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)5 - 70 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 95%
Width14 mm
Depth57 mm
Height12 mm
Weight20 g
Number of products included1 pc(s)
Package width65 mm
Package depth106 mm
Package height20 mm
Package weight40 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
