> >>Level One LevelOne MiniGBIC GVT-0300 SFP SX/LC Fiber MM 550m
Level One LevelOne MiniGBIC GVT-0300 SFP SX/LC Fiber MM 550m

Level One LevelOne MiniGBIC GVT-0300 SFP SX/LC Fiber MM 550m

LEVEL ONE

GVT-0300

New

Add to Compare

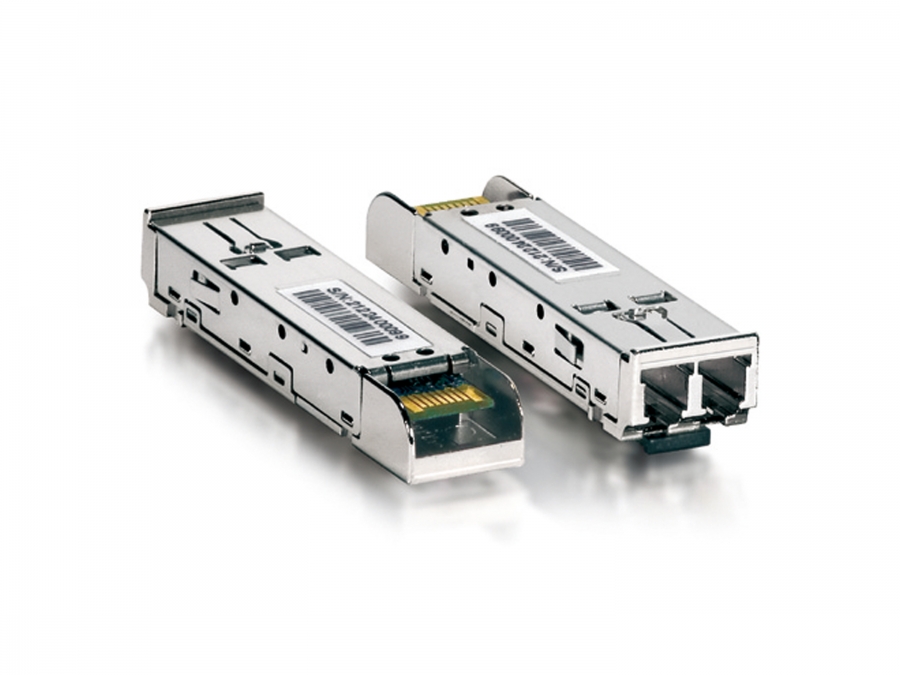

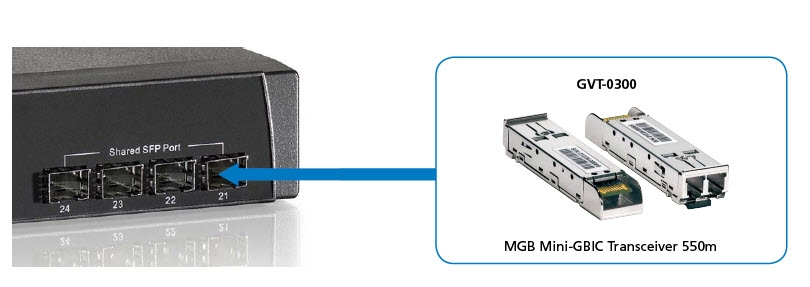

Product Overview The LevelOne GVT-0300 SFP (Small form-factor pluggable) fiber optic transceiver provides fullduplex connectivity over multi-mode fiber at distances up to 550 meters. GVT-0300 is designed for use in Gigabit Ethernet networks to provide an IEEE-802.3z-compliant link for 1.25 Gb/s speeds to serve short-range applications. GVT-0300 operates at a nominal wavelength of 850nm and complies with a Multi-Source Agreement (MSA) for compatibility between manufacturers. It comes with a click-and-latch LC connector for a solid connection into the SFP port.Multi-Purpose Usage GVT-0300 can be used for distributed multiprocessing, switch-to-switch, converterto-switch, or converter-to converter interfaces, high-speed I/O file transfer, bus extension applications, and as a channel extender in data storage applications.LevelOne GVT-0300 can be used in any LevelOne switch or converter that can accommodate SFP (Mini-GBIC) transceivers.- Small Form Factor Pluggable MSA compliant - For Multi-mode Applications - Up to 850nm & 1.25Gbps - Compliant for IEEE802.3z Gigabit Ethernet - Easy to install and Hot-pluggable - Connect switches up to 550m away with each other - Single 3.3V power supply - Duplex LC Connector - TTL signal detect indicator - EEPROM with serial ID functionality

SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
SFP transceiver standardSX
Maximum transfer distance550 m
Wavelength850 nm
Tx power (min)-9.5 dBmW
Tx power (max)-4 dBmW
Link budget8.5 dB
Networking standardsIEEE 802.3z
Hot-Plug supportY
Country of originTaiwan
Compatible productsGSW-2453 GVT-4000
CertificationClass 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11
Input voltage3.5 V
Maximum voltage6 V
Maximum current0.3 A
Operating temperature (T-T)0 - 70 °C
Operating relative humidity (H-H)5 - 90%
Width13.4 mm
Depth56.6 mm
Height8.4 mm
Number of products included1 pc(s)
Package width155 mm
Package depth50 mm
Package height230 mm
Harmonized System (HS) code85369010
