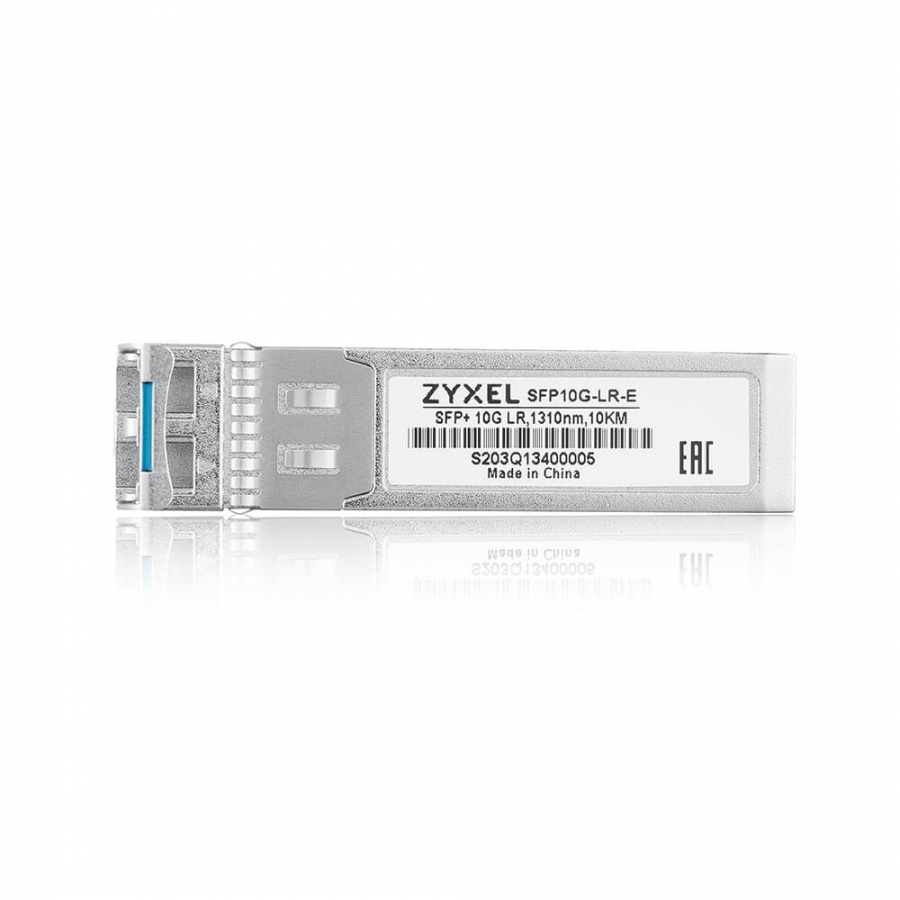

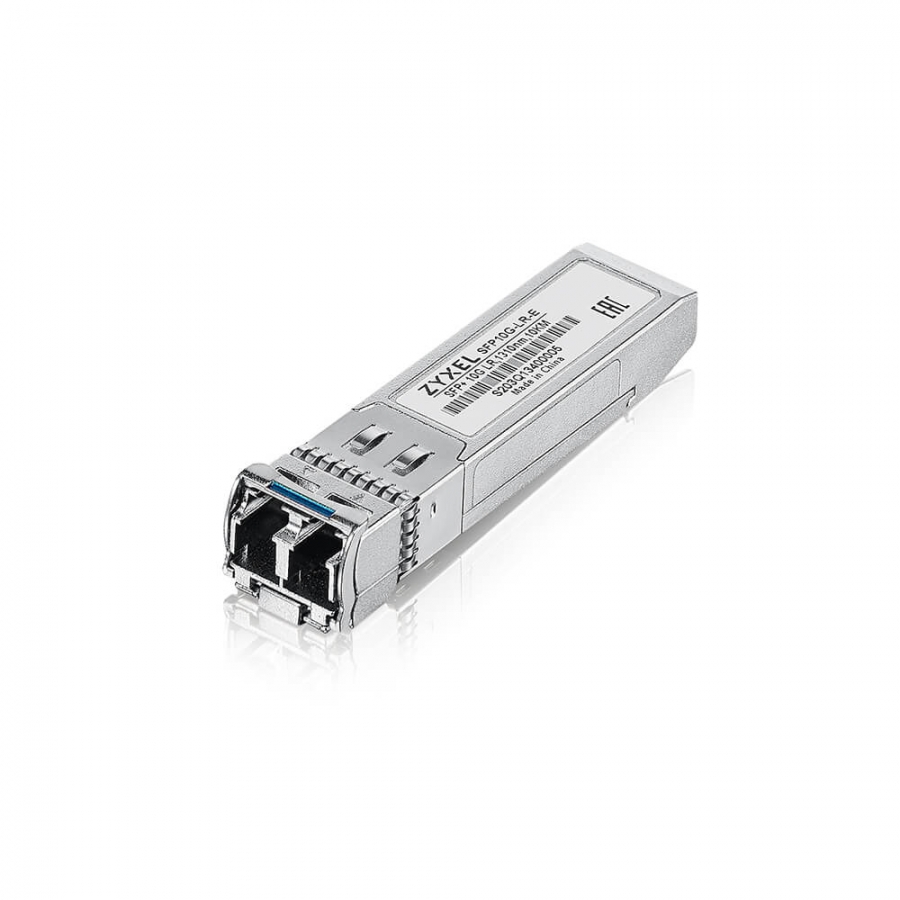

Zyxel Transceiver Plus SFP10G-LR-E 10km, 10er Pack

ZYXEL

SFP10G-LR-E-ZZBD01F

New

Hot-pluggable with maximum flexibility Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.No extra cabling cost to upgrade the fiber plant Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications. The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber.Supports digital diagnostics monitoring interface (DDMI) DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.Complete fiber accessory portfolio We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.

SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedY
Fiber optic connectorLC
Maximum transfer distance10000 m
Wavelength1310 nm
Tx power (min)0.5 dBmW
Tx power (max)-8 dBmW
Rx power (min)1 dBmW
Rx power (max)-14.4 dBmW
Product colourSteel
Country of originChina
Brand compatibilityZyxel
Input voltage3.14-3.46 V
Maximum current0.3 A
Width14.8 mm
Depth56.5 mm
Height11.8 mm
Weight20 g
Harmonized System (HS) code85369010

GBIC Modules
